Die Cutting Plastic Recycling Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJ-e130/135/140 Screw Diameter 130mm/140mm Screw Speed 10-110r/Min Main Motor Power 55kw Total Weight 3000kg Transport Package Wooden Box Specification CE Trademark QUEENSENSE Origin Wenzhou China HS Code 8477201000 Production Capacity 1000PCS/Year

Product Description

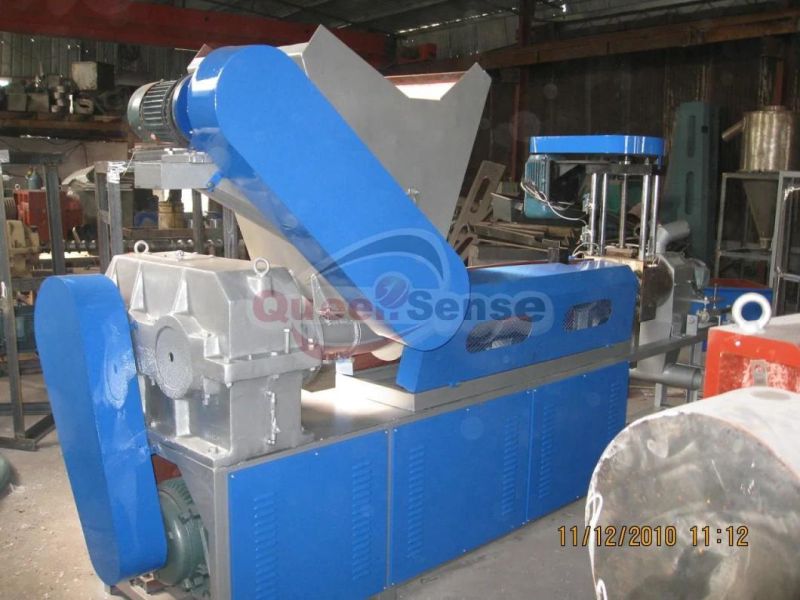

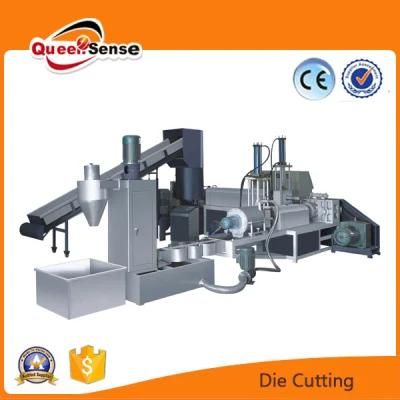

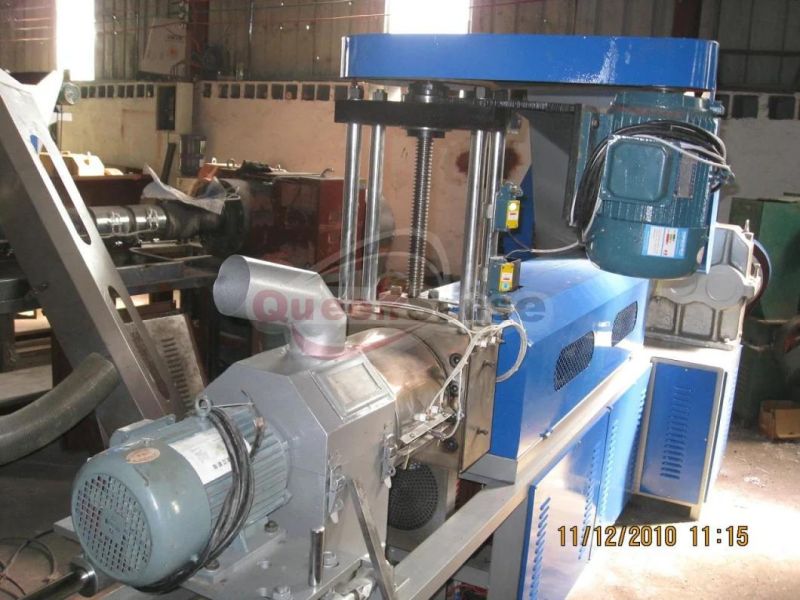

This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller. Characteristics: Main Technical VariablesMain Technical Variables:

Model	SJ-E130	SJ-E140
Type Diameter of Screw Stem	130MM	140MM
Major Diameter Ratio of Screw Stem  (L/D)	22:1	22:1
Rational Speed of Screw Stem	10-110R/MIN	10-110R/MIN
Main Motor Power	55KW	70KW
Output	150KG/H	200KG/H
Weight of overall(kg)	3T	3.5T
Cover dimensions (l×w×h) (mm)	8.8*1.8*1.8M	9.8*1.8*1.8M
