Chocolate Bean Roller Former Machine Model Qcj600

• After-sales Service：Online
• Warranty：1 Year
• Certification：CE, ISO9001
• Power Source：Electric
• Process：Thermal Processing
• Automatic Grade：Automatic

=== Base Info ===

• Model NO.：QCJ600
• Application：Candy, Chocolate
• Customized：Customized
• Roller Width：600mm
• Total Power：15kw
• Roller Power：0.55kw
• Conveyor Belt Driven Motor Power：2.2kw
• Separation Unit Driven Motor：0.75kw
• Brine Tank：10HP
• Defrost & Dehumidification：2kw*2
• Net Weight of Equipment：2500kg
• Transport Package：Wooden Case
• Specification：8620*1240*2100mm
• Trademark：GUSU
• Origin：China
• HS Code：8438200000
• Production Capacity：500,Month

=== Description ===

Basic Info.

Model NO. QCJ600 Application Candy, Chocolate Customized Customized Roller Width 600mm Total Power 15kw Roller Power 0.55kw Conveyor Belt Driven Motor Power 2.2kw Separation Unit Driven Motor 0.75kw Brine Tank 10HP Defrost & Dehumidification 2kw*2 Net Weight of Equipment 2500kg Transport Package Wooden Case Specification 8620*1240*2100mm Trademark GUSU Origin China HS Code 8438200000 Production Capacity 500/Month

Product Description

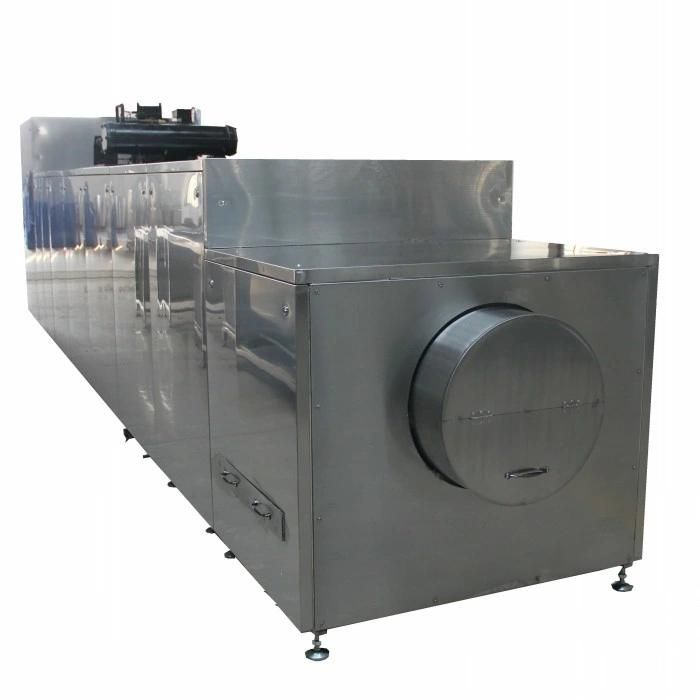

chocolate Bean roller former machine


Product DescriptionQCJ Series Chocolate Bean Roller Former is specially used for cold rolling to produce chocolate.
The equipment is designed for entirely closed production, avoid operator contacting chocolate, and
keep chocolate product to reach food sanitation standard. The equipment shows energy saving, massproduction capacity, high safety and automation, easy to operate.It can produce kinds shape of pure
chocolate, including ball shape, ellipse shape, bean shape etc.
Technical Parameters

Model	QCJ400	QC600
Production Capacity(kg/h)	100-150	150-250
Roller Width(mm)	400	600
Roller power(kW)	0.55	0.55
Total Power(kW)	15	15
Driven Power(kW)	2.2	2.2
Cold Water Tank(HP)	10	10
Surface Temp. of  CoolingRoller(ºC)	About -20	About -20
Cooling Tunnel Temp.(ºC)	0-5	0-5
Cooling Time(min)	18-30	18-30
Separator Motor Power(kW)	0.75	0.75
Dehumidification Power(kW)	4	4
Weight(kg)	2400	2500
Overall Size(mm)	8620*1040*2100	8620*1240*2100

RAQ

1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to    yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better

2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .

3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
