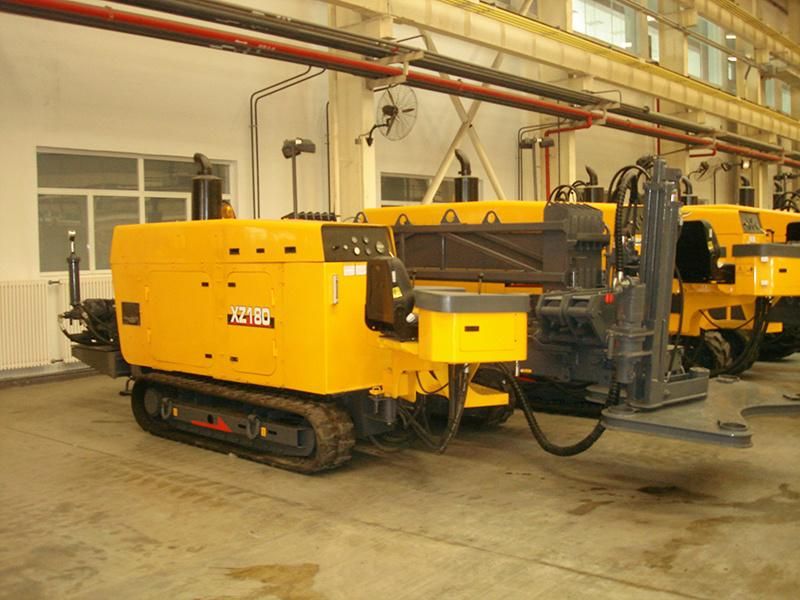

HDD Xz180 180 Kn Small Mini Horizontal Directional Drilling Rig

=== Base Info ===

=== Description ===
Product Description

Project

Unit

Parameter

Engine

Type

Cunmmins 6BT5.9-C130

Pated power

(kW/r/min)

97/2200

Thrust-Pull

Max thrust-pull force

(kN)

180

Thrust-pull speed

(m/min)

23

Rotation

Torque

(N·m)

6000

Max spindle speed

(r/min)

23

Mud pump

Max flow rate

(L/min)

250

Max pressure

(MPa)

8

Pipe

(mm×m)

φ60×3

Loader Crane

Lifting weight

(t)

-

Loading capacity

(t•m)

-

Max inclination angle

(°)

22

Max backreamer diameter

(mm)

φ600

Weight

(t)

8.5

Dimension

(mm)

6500×2270×2340

Remark

Optional:I.Mud antifreeze;II.Mud Cleaning

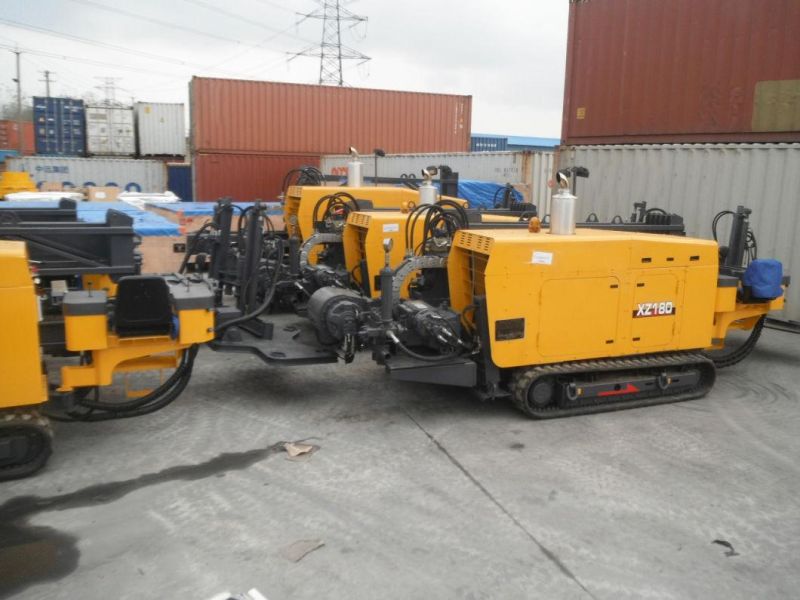

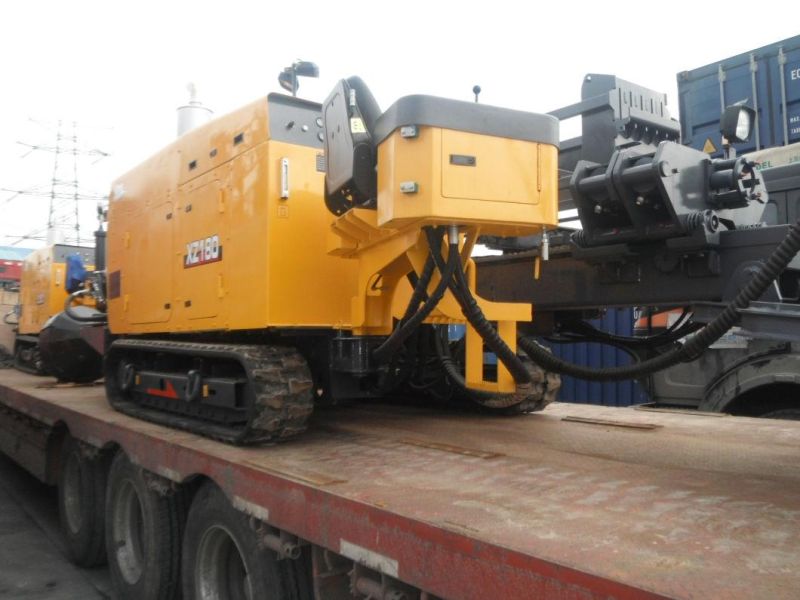

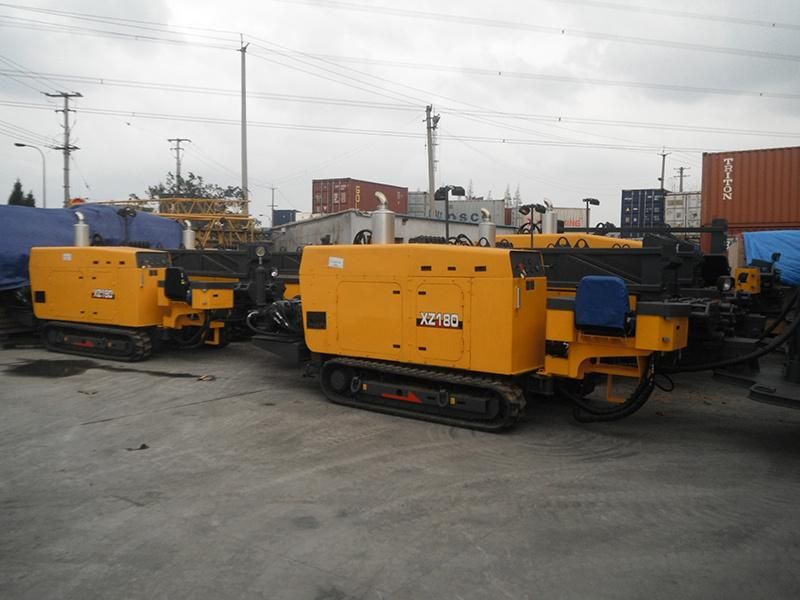

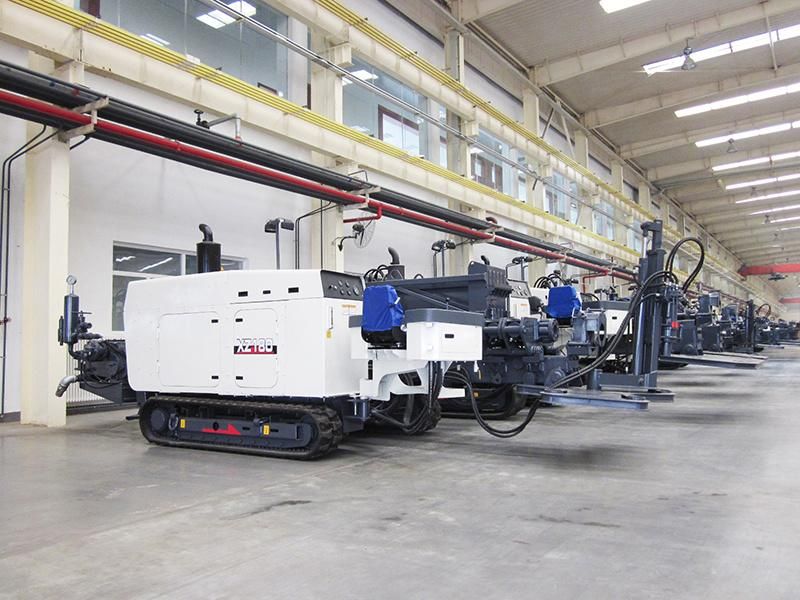

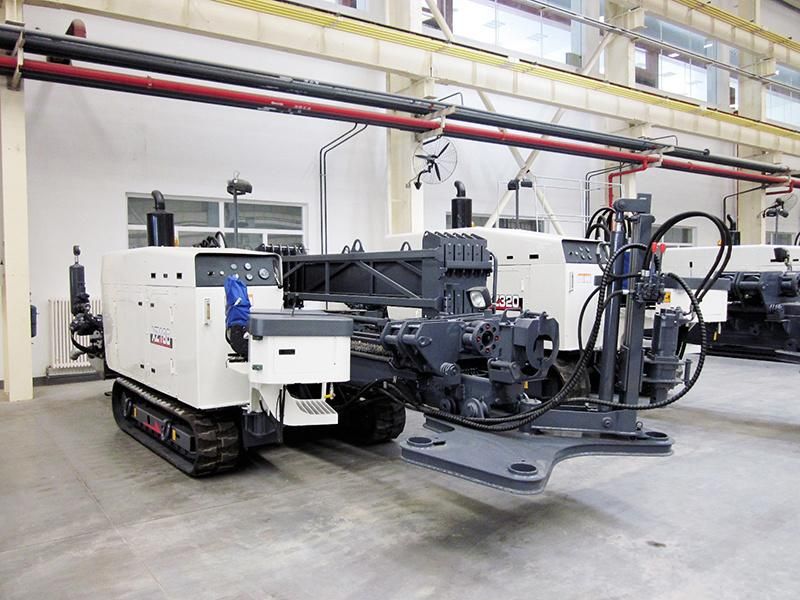

• Product Pictures
