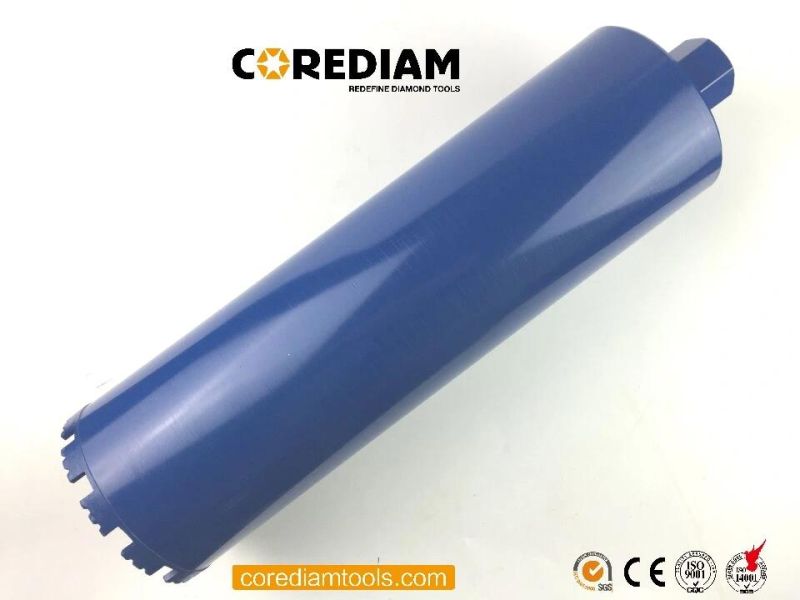

127mm Concrete Drill Bit
Pinghu Kaixin Plastic Industry Co., Ltd. / 2022-06-27
- Type:Core Drill
- Usage:Masonry Drilling, Reinforced Conrete Drilling
- Manufacturing Technology:Laser Welding
- Segment Height:10mm
- Transport Package:Carton, Case, Pallet
- Specification:127x10x450mm
=== Base Info ===
- Model NO.:CWDE
- Trademark:COREDIAM
- Origin:China
- HS Code:82071910
- Production Capacity:2000 Pieces Per Month
=== Description ===
Basic Info.
Model NO.
CWDE
Trademark
COREDIAM
Origin
China
HS Code
82071910
Production Capacity
2000 Pieces Per Month
Product Description
1. introduction
This type of core drill is the laser welded, it can be widely used in drilling concrete, reinforced concrete, masonry with superior efficiency. The diameter is 127mm. The segment sharp is turbo wave segments. It can be installed on Standard Core Driller, Hand-Held Drillers. The quality level is premium.
2. Features
Manufacturer technology: laser welded.
Suitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have a reasonable lifespan.
3.SpecificationItem No. | Diameter | Segment Height | Arbor | Effective Length |
CWDE03245010 | 32mm | 10 | 1 1/4"-7 | 450mm |
CWDE03645010 | 36mm | 10 | 1 1/4"-7 | 450mm |
CWDE04245010 | 42mm | 10 | 1 1/4"-7 | 450mm |
CWDE05245010 | 52mm | 10 | 1 1/4"-7 | 450mm |
CWDE06245010 | 62mm | 10 | 1 1/4"-7 | 450mm |
CWDE07245010 | 72mm | 10 | 1 1/4"-7 | 450mm |
CWDE08245010 | 82mm | 10 | 1 1/4"-7 | 450mm |
CWDE09245010 | 92mm | 10 | 1 1/4"-7 | 450mm |
CWDE10245010 | 102mm | 10 | 1 1/4"-7 | 450mm |
CWDE11245010 | 112mm | 10 | 1 1/4"-7 | 450mm |
CWDE12745010 | 127mm | 10 | 1 1/4"-7 | 450mm |
CWDE13245010 | 132mm | 10 | 1 1/4"-7 | 450mm |
CWDE15245010 | 152mm | 10 | 1 1/4"-7 | 450mm |
CWDE16245010 | 162mm | 10 | 1 1/4"-7 | 450mm |
CWDE17245010 | 172mm | 10 | 1 1/4"-7 | 450mm |
CWDE18245010 | 182mm | 10 | 1 1/4"-7 | 450mm |
CWDE20045010 | 200mm | 10 | 1 1/4"-7 | 450mm |
CWDE25045010 | 250mm | 10 | 1 1/4"-7 | 450mm |
CWDE30045010 | 300mm | 10 | 1 1/4"-7 | 450mm |
CWDE35045010 | 350mm | 10 | 1 1/4"-7 | 450mm |
4.Corediam facility
5.Quality Control&Test
6.Delivery time&Packing
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
7.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
