Portable Light Weight Gasoline Hammer Hand Rock Drill

=== Base Info ===

=== Description ===

Basic Info.

Product Name Hammer Rock Drill Weight 30kg Dimension 746*315*229mm Diameter of Engine Piston 58mm Stroke of Engine Piston 70mm Rotating Speed of Engine 2450r/Min Oil Consumption 0.12L/Min Max. Drilling Depth 6m Transport Package Carton Packing Specification 746*315*229mm Trademark bafang Origin Shandong, China (Mainland) Production Capacity 100/Month

Product Description

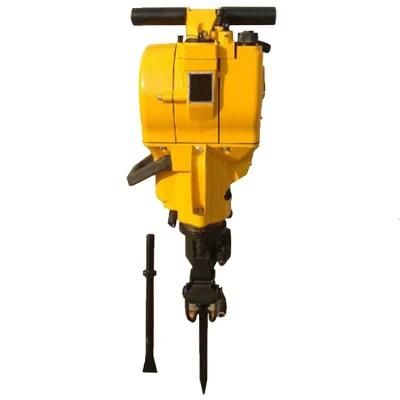

Portable light weight gasoline hammer hand rock drill
Description:
YN27J manual rock drill is a small type of rock drill composed the power machine, working machine and air compress in one. It is powered by the small gasoline engine and used for drilling on the hard rock or rock with medium hardness, the hardness of rock is f8 to f18. Because it is self-powered, it is especially convenient to be used for projects without other power supply, or projects that are inconvenient for conveying the large-volume unit, or for mobile construction projects.

Feature:
1. Easy to operate, just turn the handle to make it work.
2. Time and labor saving, Drilling fast and high efficiency.
3. First-class level Drilling Tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40).
4.Used to drill vertical downward hole (max depth 6m) and <45° upward hole.
5. Light Drilling Tools, only 27kgs, easy to carry.
6. Rubber hand handle, shock absorption, which has certain protective effect for operator.
 Parameter:


Weight	27kg
Dimension	746*315*229mm
Function	Drilling
Type of carburetor	Hand needle valve, no floating type
Type of engine	Single cylinder,air cooled two strokes
Diameter of engine piston	Φ58mm
Stroke of engine piston	70mm
Rotating speed of engine	≥2450R/min
Rotating speed of drilling rod	≥250R/min
Oil consumption	≤0.12L/min
Max. drilling depth	6m
Tank capacity	≥1.14 L
Shank size	Hex22x108mm
Ignition system	Controllable silicon, Contactless system
Mixture ratio of gasoline and lubrication oil	12:01
