Stainless Steel Wood Metal Laser Engraving Machine Mini 20W Fiber Laser Marking Machine Price

• Warranty：1 Year
• Applicable Material：Metal

=== Base Info ===

• Model NO.：LM20
• Cooling System：Air Cooling
• Laser Wavelength：Fiber Laser
• Type：Optical Fiber Laser Marking Machine
• Transport Package：Plywood Box
• Production Capacity：4000piece,Month

=== Description ===

 Style

Cabinet Fiber laser marking machine

 Power

20W/30W/50W

Laser Brand

Raycus (Maxphotonics/lianpin)

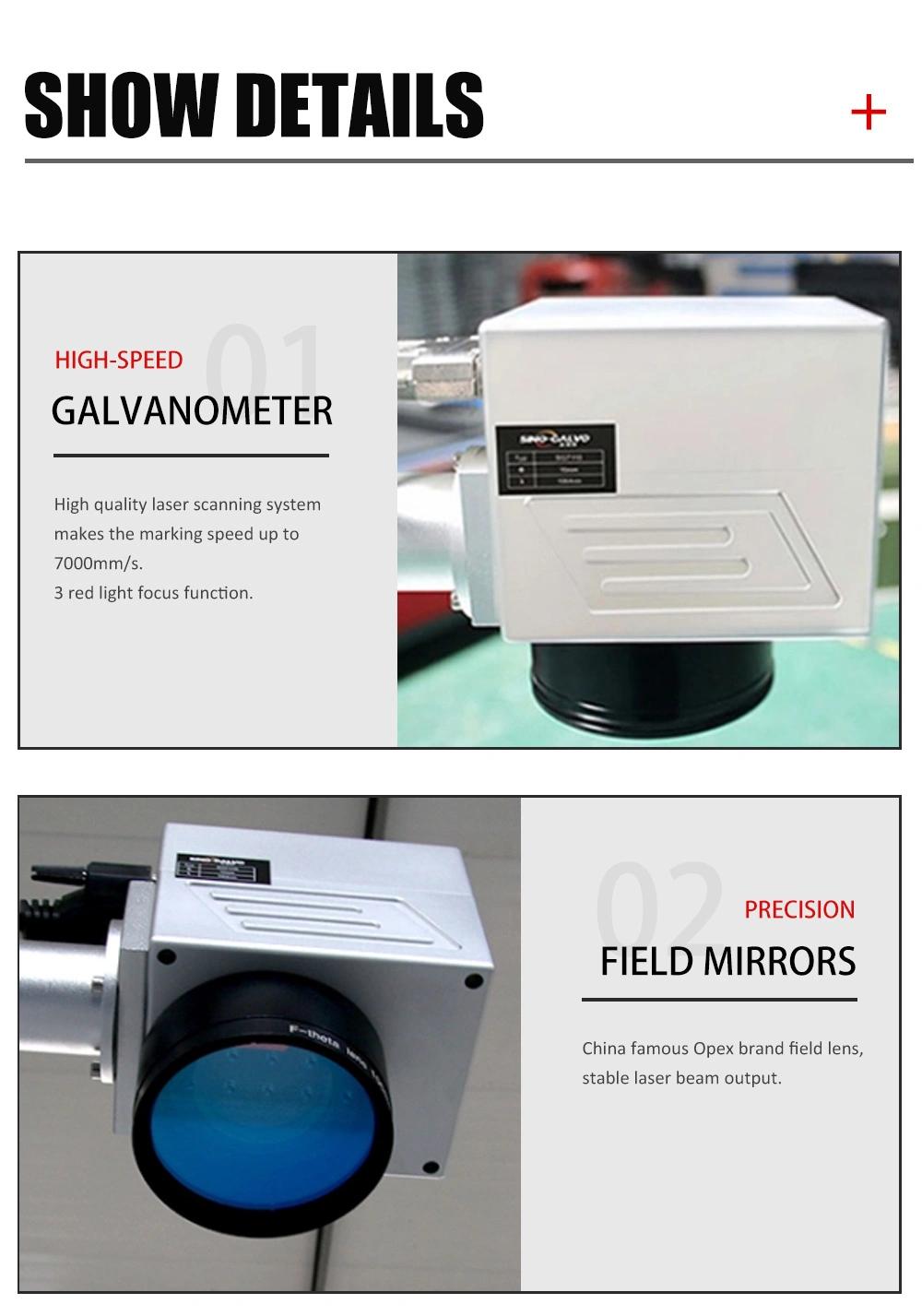

Galvanometer

Sino

Main board

Beijing JCZ

Software

EZCAD 2.14.10

 Marking Area

110mm*110mm

 Optional Marking Area

 110mm*110mm / 150mm*150mm /200mm*200mm

 Marking Depth

≤0.5mm

 Marking Speed

≤7000mm/s

 Minimum Line Width

0.012mm

 Life-span of Fiber Laser Module

100, 000hours

 Beam Quality

M2 <1.5

 Output Power of Laser

10%~100% continuously to be adjusted

 System Operation Environment

Windows 7/8/10

 Cooling Mode

Air cooling--Built-in

 Temperature of Operation Environment

15ºC~35ºC

 Power Input

220V / 50HZ / single phase or 110V / 60HZ / single phase

 Power Requirement

<600W

 Communication Interface

USB

 Package  Dimension

100*79*106cm

 Net Weight/gross weight

80KG/125KG

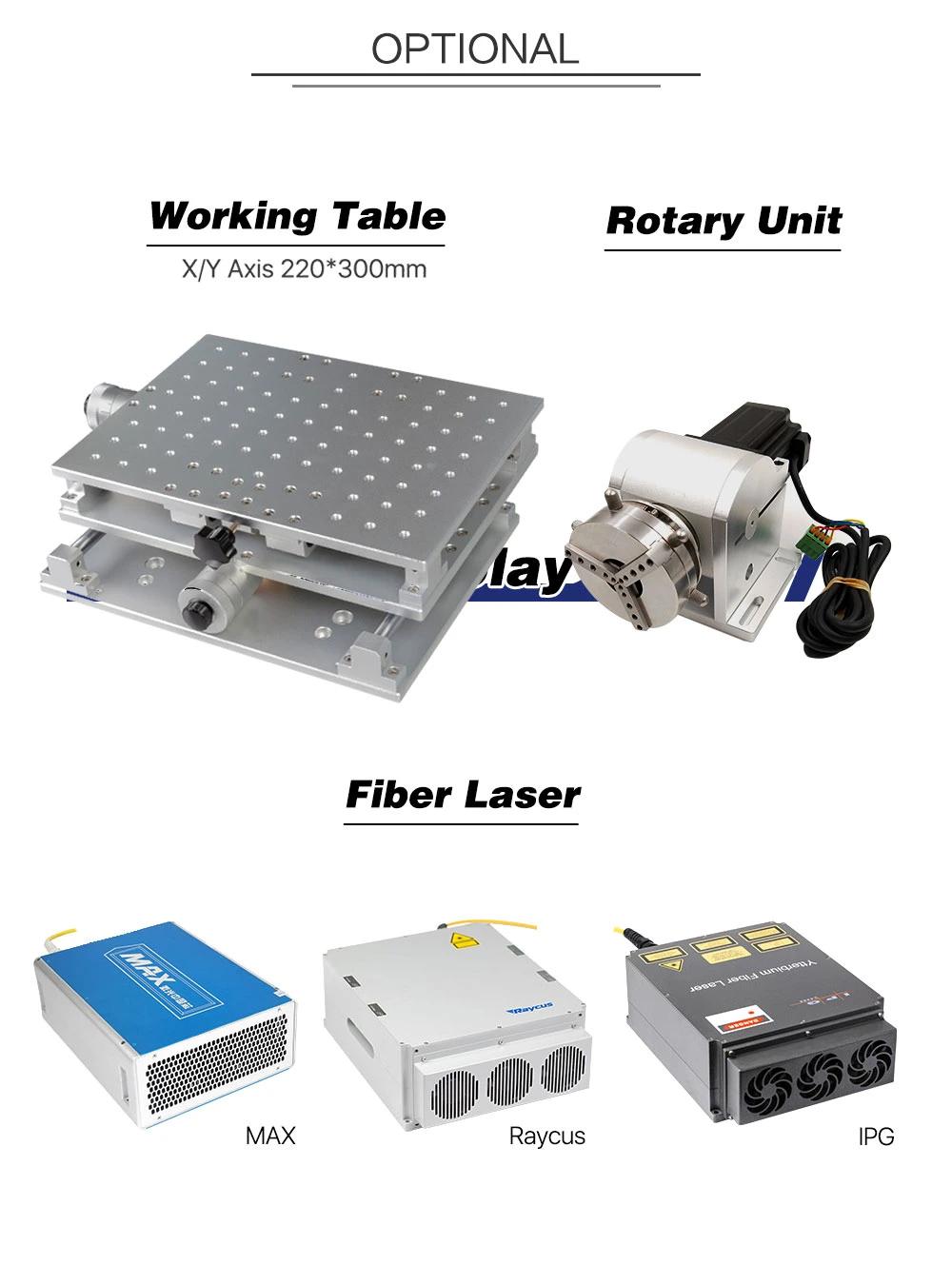

 Optional (Not free of charge)

Rotary Device, Moving Table, other customized Automation

4. Can help you solve problems online or by email in 24 hours, free technical support.

FAQ

Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials.
Metal/Acrylic/Plywood/MDF?
3)You want to engrave or cut?
If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.

Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware. Or we can talk by phone,email or skype.

Q3. How long is the delivery time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to clien's specific requirements, it would be 7 to 10 days.

Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be stested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.

Q5. Do you arrange shipment for the machines?
Yes. For FOB or CIF price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
