FT-1000 Fresh Film Cling Film Making Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. FT-1000 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Non-Automatic Computerized Non-Computerized Diameter of Screw 70mm Extruder One L/D 30:1 Width of Die Head 1250mm Width of Film 1000mm Thickness of Film 0.001-0.05mm Max. Output 100kgs/H Liner Speed of Machinery 50-100m/Min Main Motor 30kw Total Power 120kw Dimension 7.5*4*3.2m Weight 4500kgs Transport Package Wooden Case, Wooden Block, in Nude Specification CE Trademark fangtai Origin China HS Code 84778000 Production Capacity 1 Set/ Month

Product Description

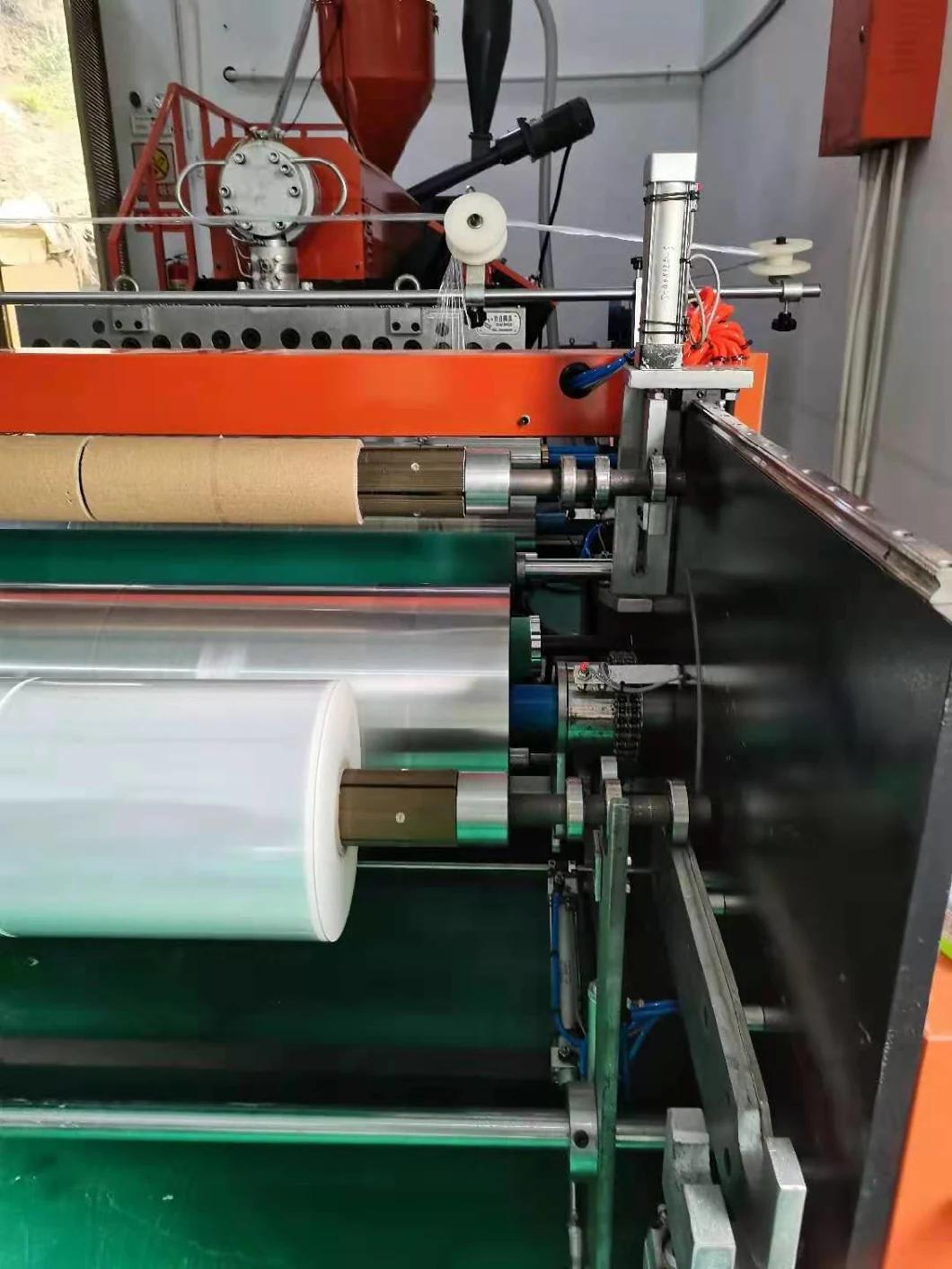

FT-1000 single layer cling/stretch film making machine

This machine is designed for producing Cling flim for food packaging, adopting main material of LLDPE, LDPE, with othe several kinds of resin. The machine is with single extruder, single screw inside.
The film has good tensile strength, anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in food packing industry and wrapping of palletized goods. It's a good substitute for hot shrinking packaging film during transportation.


Model	FT-1000 single-layer	FT-1200 single-layer
Diameter of Screw Stem	φ70 mm	φ75 mm
L/D Ratio of Screw	30:1	30:1
Material of Scerw & Barrel	38 CrMoALA	38 CrMoALA
Rationl Speed of Screw Stem	10-120 rpm	10-120 rpm
Width of T-die	1250 mm	1500 mm
Heating Way	Casting-aluminum heating device	Casting-aluminum heating device
Width of Traction Roller	1250 mm	1500 mm
Folding Width of Products	200-1000 mm	200-1200mm
Thickness	0.010-0.05 mm	0.015-0.05 mm
Main Motor	30kw	30 kw
Heating Power	18 kw	18 kw
Tractiong Motor	2.2 kw	2.2 kw
Max. Output(kg/h)	100	120
Machine Weight	4.5T	5T
Overall Dimensions (L*W*H)	7500*4000*3200	7500*4500*3200
