HDPE Spiral Wound Gravity Pipe Extrusion Production Line

=== Base Info ===

=== Description ===
SMSG-40002400-4000mm600kw

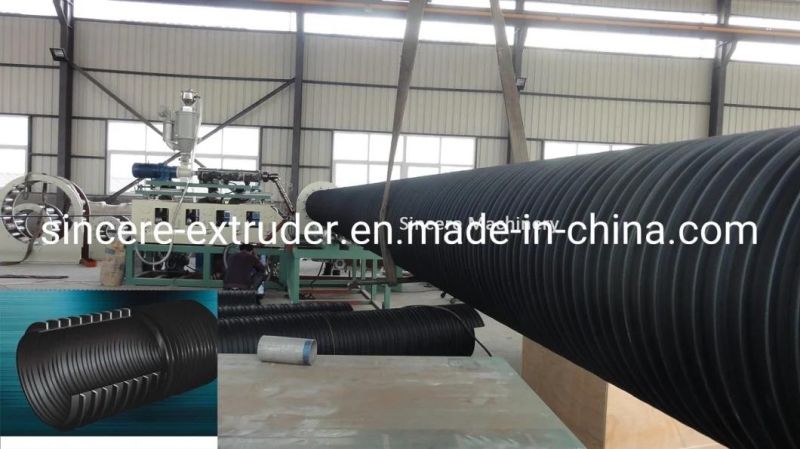

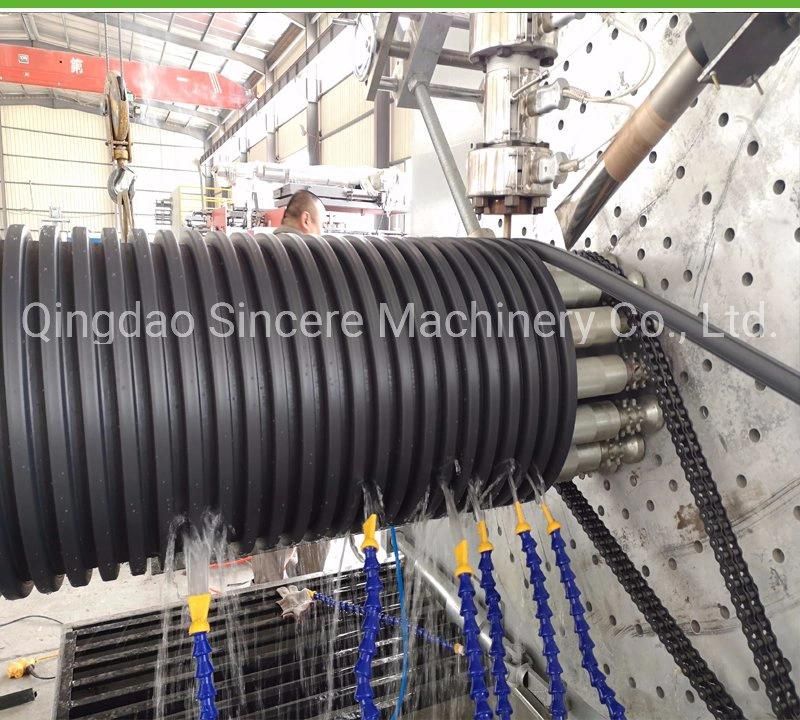

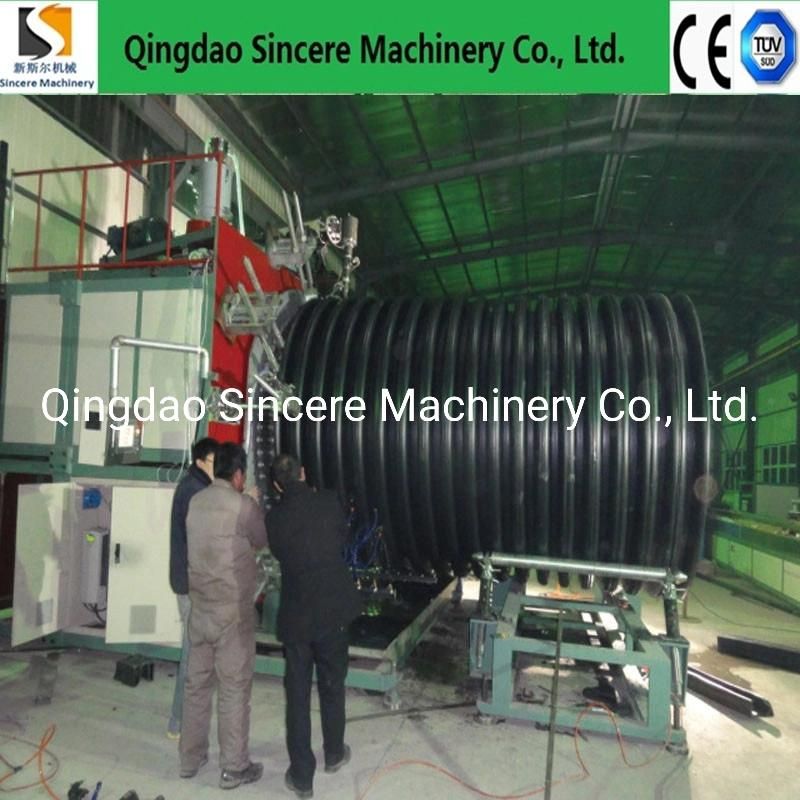

4. Machine Pictures:

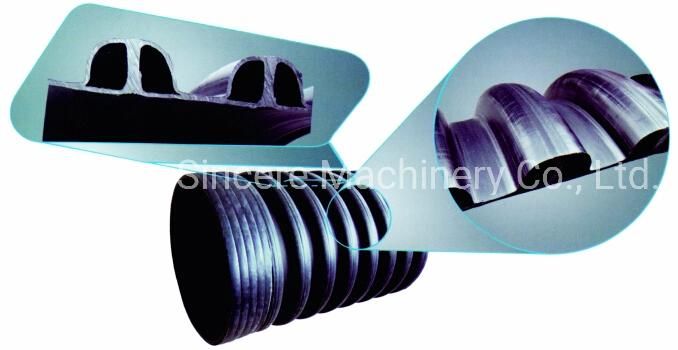

Part 2: HDPE Rib Reinforced Corrugated type Spiral Pipe production line



1. HDPE Rib Reinforced Corrugated type Spiral Pipe production line is a kind of new generation high performance.
plastic spiral pipe line for large diameter buried drain pipe according to hollow wall winding pipe
production technology with the intellectual property. It can produce pipe size from Ø200~Ø4000mm
which is widely used in fields of civil water drain, wastewater drain.


2. The pipe could also be made by the recycled polyethylene material. These properties make it superior
advantages compared with other kinds of drainage pipe.
1) The investment is lower and the automatic control system is easy for operation and maintenance.
2) Adopt winding method by winding the semi-round two side circle profile
3) The inner PE-layer is Composited with the U-type pipe in melting condition. And they will never been
delaminated after spraying cooling forming, with good adhesion effect.
4)Adopting Electric-magnetic heating system which can save 40% to 60% electric power.
5)All Electric Part (breaker/motor/INCKO/Inverter) is Siemens/Omron
6)Production Speed is 1-20m/min.
7)Max. Pipe Size: 4000mm.

3. The features of PE Spiral Corrugated Pipe:
1) Light weight-per-meter
2) Belling link, tight cementation
3) Pressure against, high strength
4) Anti-frozen and long service life (50 years )
5) Convenient construction

4.Technical parameter:

Model Pipe Dia.(mm) Extruder model Production speed m/h Max.out put kg/h Total power kw Overall dimension mm SMSG-800 200-800mm SJ-75 SJ-45 1-30 200 180 17000*8000*4000 SMSG-1600 600-1600mm SJ-90 SJ-65 1-20 500 220 20000*10000*4800 SMSG-2000 800-1200mm SJ-120 SJ-90 1-18 700 260 22000*12000*5000 SMSG-3000 1500-3000mm SJ-150 SJ-90 1-10 1000 310 25000*14000*5300 SMSG-4000 2000-4000mm SJ-150 SJ-100 0.5-7 2000 310 40000*14000*5300

Part 3. Steel Reinforced hollowness wall HDPE winding pipe extrusion line


Steel belt straightening machine and heating device, steel belt is coated with polyethylene. Product has steel's rigidity and Anti-corrosion properties of plastics.
