India Market Granite Stone Cutting Diamond Tools Segment 2500mm Single Blade Segment

• Type：Chemical Vapor Deposition Diamond
• Surface Finishing：Ti-coated
• Blade Material：Diamond
• Feature：Good Sharpness
• Application：Granite Cutting
• Main Market：India

=== Base Info ===

• Segment Shape：M Shape with Layer
• Transport Package：Waterproof and Damageproof Standard Packaging Cart
• Specification：24*10.6,11.4*15mm
• Trademark：Linsing
• Origin：Shangrao, China
• Production Capacity：15000PCS,Day

=== Description ===

Basic Info.

Segment Shape M Shape with Layer Transport Package Waterproof and Damageproof Standard Packaging Cart Specification 24*10.6/11.4*15mm Trademark Linsing Origin Shangrao, China Production Capacity 15000PCS/Day

Product Description

LINSING diamond segment features:
1:The segments has good sharpness and high efficiency at the process of stone cutting.
2:Good cutting result: smooth cutting, flat surface and even size,.
3:Stable cutting,narrow cutting gap, stone waste reduction.
4:Good sharpness cutting in high speed without chipping, less noise in work and save power
5:Long life span and stable cutting performance.
6:smooth cutting, flat surface and even size cutting result.
7:Good segment shape easy for diamond opening.
8:High cost-effective.

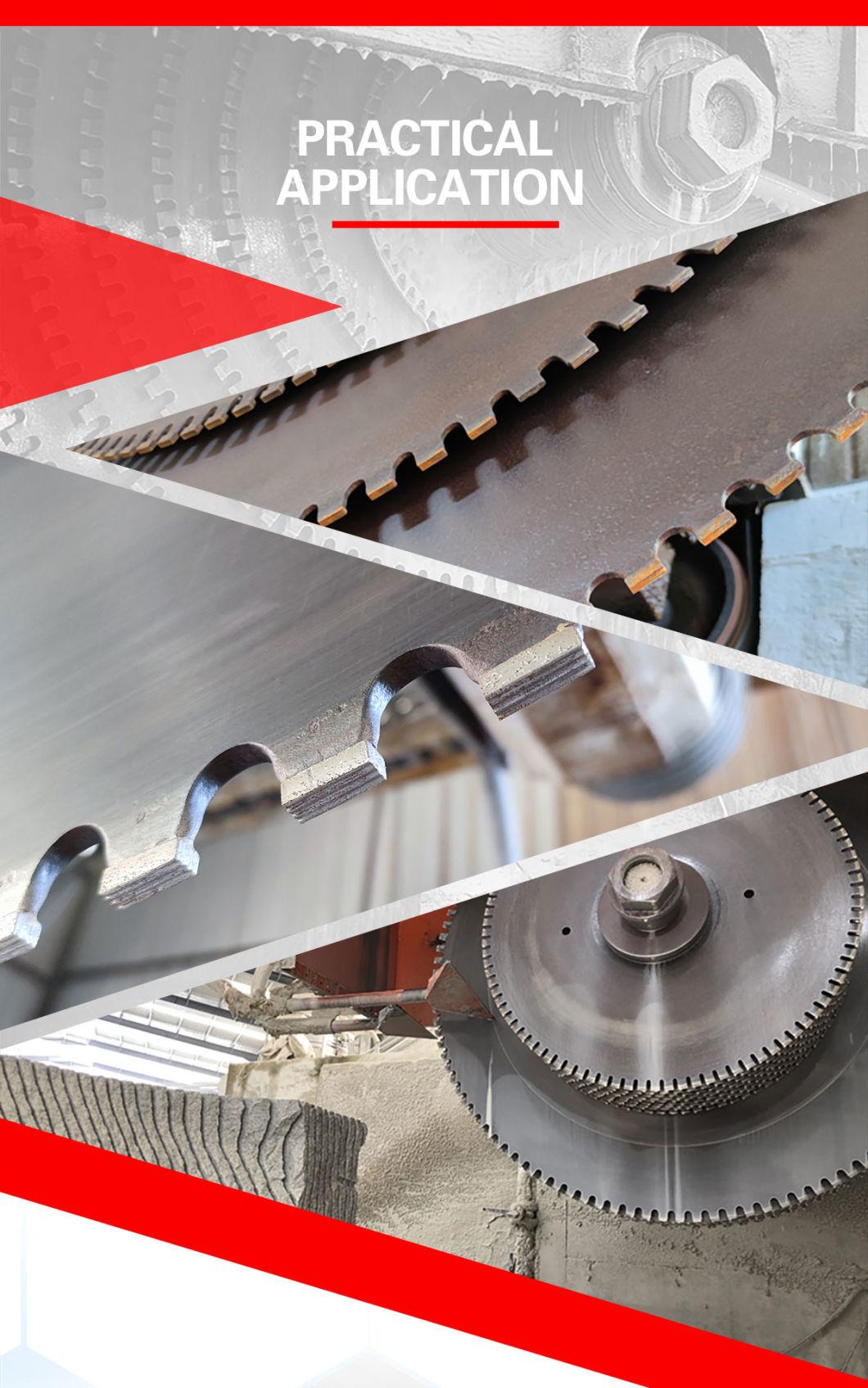

Product application:
Segment for edge cutting D250-D600
Segment for splitting D450-D900
segment for D1200mm Multiblade block cutting 24*7.4/6.6*15
segment for Chinese Multiblade machine block cutting 24*8.4/7.6*15
segment for D2500-3000mm single blade block cutting 24*11.5/12.5*20(26, 30)
Segment for quarry 23*14/13*20, 23*15/14*20, 23*16/15*20, 23*17/16*20
Product dimension:

Diameter (mm)	Steel Core Thickness(mm)	Segment Dimension (mm)	Segment No.
Φ300	2.2	40×3.2×10(12,15)	21
Φ350	2.2/2.4	40×3.4×10(12,15)	24
Φ400	2.6	40×3.6×10(12,15,20)	28
Φ450	2.8/3.0	40×4.0×10(12,15,20)	32
Φ500	3.0/3.2	40×4.2×10(12,15,20)	36
Φ600	3.6/3.8	40×4.8×10(12,15,20)	36/42
Φ700	4	40×5.2×10(12,15,20)	42
Φ800	4.5	40×6.0×10(12,15,20)	46
900	5.0	24×7.0/6.4×12(15,20)	64
1000	5.0	24×7.0/6.4×12(15,20)	70
1200	5.5	24×8.0/7.4×12(15,20)	80
1300	6.0	24×8.4/7.8×12(15,20)	88
1400	6.5	24×8.4/7.8×12(15,20)	92
1600	7.2	24×9.2/8.4×12(15,20)	108
1800	7.5	24×10.0/9.0×12(15,20)	120
2000	8.0	24×10.5/9.5×15(20,25)	128
2200	9.0	24×11.0/10.0×15(20,25)	132
2500	9.0	24×11.5/10.5×15(20,25)	140
3000	9.5	24×12.5/13.5×20(25,30)	160
3500	9.5	24×13.5/14.5×20(25,30)	180

Other specifications are available upon request.For different blade and stones, customized segment size and numbers will be suggested and LINXING can supply different specifications and diameters as per customer's requirement.
