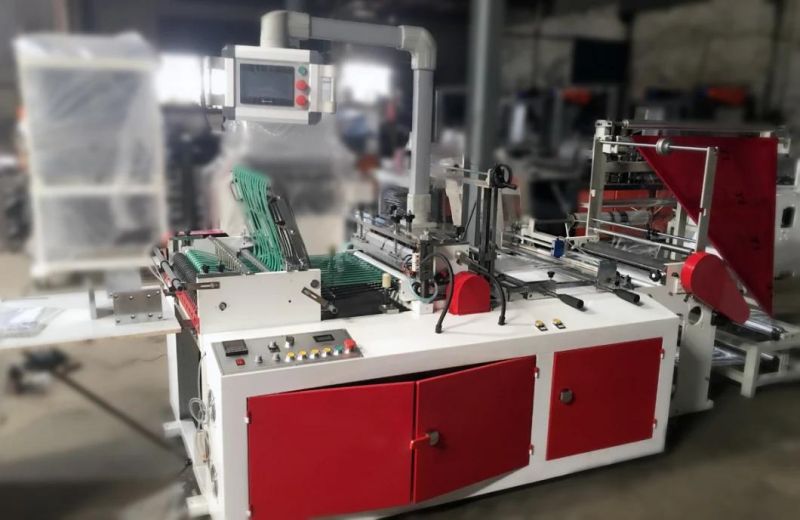

Full Automatic Continuous-Rolled Bag Making Machine
Chengdu XYLP Trading Co., Ltd. / 2022-07-04
=== Base Info ===
=== Description ===
| Model | RFQ-400 | RFQ-500 | RFQ-600 | RFQ-700 | RFQ-800 | RFQ-900 |
| width | 25-500mm | 45-600mm | 50-700mm | 50-800mm | 55-999mm | 60-999mm |
| length | 30-400mm | 30-500mm | 60-600mm | 70-700mm | 80-800mm | 90-900mm |
| Bag-making speed | 30-240pcs/min | 30-240pcs/min | 30-240pcs/min | 30-240pcs/min | 30-240pcs/min | 30-240pcs/min |
| Accuracy | ±0.3mm | ±0.3mm | ±0.3mm | ±0.3mm | ±0.3mm | ±0.3mm |
| Total power | 3.5kw | 3.5kw | 3.5kw | 3.5kw | 3.5kw | 3.5kw |
| Weight of machine | 600kg | 700kg | 800kg | 900kg | 1000kg | 1100kg |
| Overall dimensions(LxWxH) | 3500x900xl300mm | 3500xl000xl300mm | 3500xl100xl300mm | 3500xl200xl300mm | 4000xl300xl300mm | 4000xl400xl300mm |
This machine is specially-designed point-cut rolling dual-purpose one for vest & flat bags.
1.Computer controlled, the step (servo) setting length system reduces the sealing-cutting
dimensions errors.
2.Based on drum rotation continuous seal, long sealing time and low Temperature Control,
so Would't damage sealing, to ensure the quality of the bag.
3.Photoelectric eyes track help make the position of flgure of printing bags accurate,
computer numerical control can bee selected to adjust the length of bag, it will
top and alarm if something wrong with the printing bags.
