Pre-Insulation Pipe Production Line PE/PPR/Pert Pipe Extrusion Machinery

=== Base Info ===

=== Description ===

Basic Info.

Model NO. pert pipe machine Condition New Pipe Diameter 20-63mm Pipe Color Black + Yellow or Blue Extrusion Process Multi-Layer Extrusion Calibration Method Vacuum Transport Package Standard Package for Export Specification ISO9001: 2008, CE Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 20 Sets

Product Description

Pre-insulation pipe Production Line PE/PPR/PERT Pipe Extrusion machinery

HDPE pressure Pipe Extrusion Line is a pipe extrusion line developed by HSD company through assimilate and master technology introduced from abroad. It is applicable for extrusion of PE, PP, PB, PERT, ABS etc.


Plastic Pipes produced by this line have excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on. It has become  water supply pipe, foundation pipe, landfill collection pipe, geothermal heating etc.

Application of pipe extrusion line

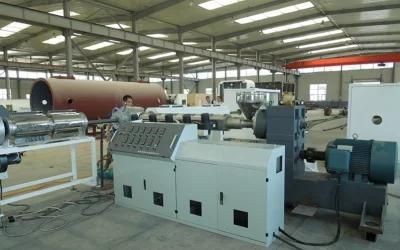

HDPE pipe extruding line composed of single screw extruder and corresponding auxiliaries, can produce all kinds of small diameter HDPE plastic pipes continuously. It also can be used to produce PS, PP, HDPE plastic pipes after replacing the screw. HDPE plastic pipe is widely used for liquid conveying in agricultural, chemical industry, construction industry, etc.


• Pipe specification

Usage :                  Insulation Pipe
Pipe colour:               Black
Cover pipe dia.&wall thickness :

No.	Dia.	Wall thickness
1	200mm	3mm
2	160mm	3mm
3	125mm	3mm
4	110mm	3mm
5	90mm	2mm
6	75mm	2mm
7	50mm	2mm



• Work condition:            indoor        safe      65% No condensation       0-35ºC
• Basic condition
  1. power :            3 phrase ,380V(-10%,+5%)50Hz
  2. Capacity:      about140kW
  3. water :         ≤20ºC,≥0.3Mpa ,26~30 m3/
  4. air:              0.4m3/min ,>0.5MPa
  5. Line Total Length:            45 m

7. Discharging Frame
The table surface is made of stainless steel. It adopts pneumatic overturn and discharging automatically.

Model	SRQG-1200
Pipe Size(mm)	Φ 20-Φ63mm
