- After-sales Service:Online Service
- Warranty:One Year
- Name:Milk Pasteurizer, Electric Heating Batch Pasteuri
- Capacity:Tank 200L, 300L, 400L, 500L4000L
- Tank Type:with Half Lids Cover or Manhole
- Temperature:Able to Control and Adjust From 10c to 110c
=== Base Info ===
- Model NO.:KQ100L-30000L
- Mixing Speed:36rpm, 48rpm,96rpm, 2900rpm
- Heating Source:Electric Heating Bars Oil,Hot Water in The Jackets
- Working Life Span:More Than 10years
- Tank Function:Heating, Fermenting, Mixing , Warm Keeping
- Tank Material:SS304,316,316L
- Customized Type:Accept
- Packing:Wooden Box
- MOQ:1set
- Motor Brand:Siemens ,ABB ,China Brand
- Spare Parts:Available
- OEM:Yes
- Transport Package:Standard Export Wooden Box
- Specification:ISO
- Trademark:KQ
- Origin:Shanghai China
- HS Code:8479820090
- Production Capacity:100sets Per Month
=== Description ===
Basic Info.
Model NO.
KQ100L-30000L
Mixing Speed
36rpm, 48rpm,96rpm, 2900rpm
Heating Source
Electric Heating Bars Oil/Hot Water in The Jackets
Working Life Span
More Than 10years
Tank Function
Heating, Fermenting, Mixing , Warm Keeping
Tank Material
SS304/316/316L
Customized Type
Accept
Packing
Wooden Box
MOQ
1set
Motor Brand
Siemens /ABB /China Brand
Spare Parts
Available
OEM
Yes
Transport Package
Standard Export Wooden Box
Specification
ISO
Trademark
KQ
Origin
Shanghai China
HS Code
8479820090
Production Capacity
100sets Per Month
Product Description
Electric heating pasteurizer for milk , juice,
Milk Pasteurizer/ Electric Heating Batch Pasteurizer Price
Small electric heating tank pasteurizer for dairy, jucie factorys.
CE Certificate :
Electric heating and mixing tank
Newest electric double jacketed heating cable for tank
Heating by Electric(380V, 50Hz)
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down
* Accessories:
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) CIP cleaning ball,

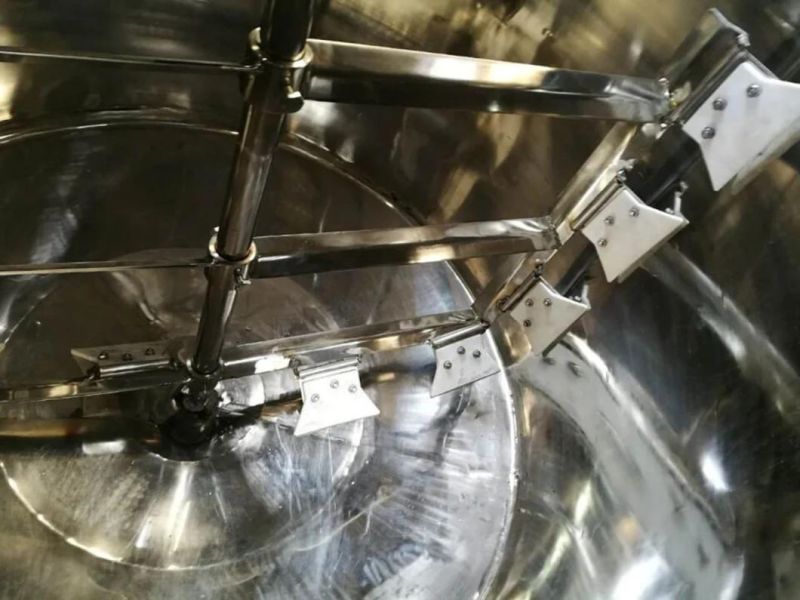

(6) Heating tube, (7) Electric cabinet, (8) Reduction gears, (9) Rack & blender etc. (10)The electric motor(2.2KW, 380V, 50Hz)
TankCapacity(L) | 200, SS304 | 300, SS304 | 500, SS304 | 1000,SS304 |
REV | 36r/min | 36r/min | 36r/min | 36r/min |
Electric motor of the agitator | 0.55KW,380v,50hz | 0.75KW,380v,50hz | 0.75KW,380v,50hz | 1.1KW,380v,50hz |
Electric heating tube power | 15KW,380v,50hz | 18KW,380v,50hz | 24KW,380v,50hz | 45KW,380v,50hz |
Heating Area(M2) | 0.9 | 1.1 | 1.9 | 4.5 |
Material Input/output(DN MM) | 38 | 38 | 38 | 50 |
OUTSIDE DEMENSION(L*W*H)MM | 900*900*1600 | 1000*1000*1500 | 1100*1100*1700 | 1400*1400*1750 |
GROSS WEIGHT(KGS) | 150 | 200 | 300 | 450 |
Shanghai Kaiquan Machine Valves Co.ltd offers the broadest range of tank heating solutions in the electric heatingindustry. .... jacketed vessel application is the heating of chocolate
ELECTRIC HEATING MILK BATCH PASTEURIZER
200l, 300L, 400L ,500L, 600L JUICE PASTEURIZER, MILK PASTEURIZER.
Milk Pasteurizer/ Electric Heating Batch Pasteurizer Price
