- Blade Type:Segmented Saw Blade
- Manufacturing Process:Brazing
- Application:Reinforced Concrete
- Outer Diameter:760mm
- Cutting Material:Concrete, Reinforced Concrete, etc.
- Segment Size:40X5X10mm X46nos
=== Base Info ===
- Model NO.:L0110D760
- Thickness:5mm
- Quality Atandard:ISO9001 SGS
- Advantage:Fast Cutting and Long Cutting Life
- Machine:Hydraumatic Wall Saw
- Graininess:30,35, 35,40
- Usage:Wet Use
- Transport Package:Carton
- Specification:GB, 30 Inch
- Trademark:Johnson Tools
- Origin:China
- HS Code:8202391000
- Production Capacity:10000PCS,Month
=== Description ===
Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
30" | 760 | 40 | 4.8/5 | 10 | 46 |
30" | 760 | 40 | 4.8/5 | 12 | 46 |
Other size we could doInch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
48" | 1200 | 40 | 4.8/5 | 10/12 | 62 |
56" | 1400 | 40 | 4.8/5 | 10/12 | 86 |
60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
64" | 1600 | 40 | 4.8/5 | 10/12 | 92 |

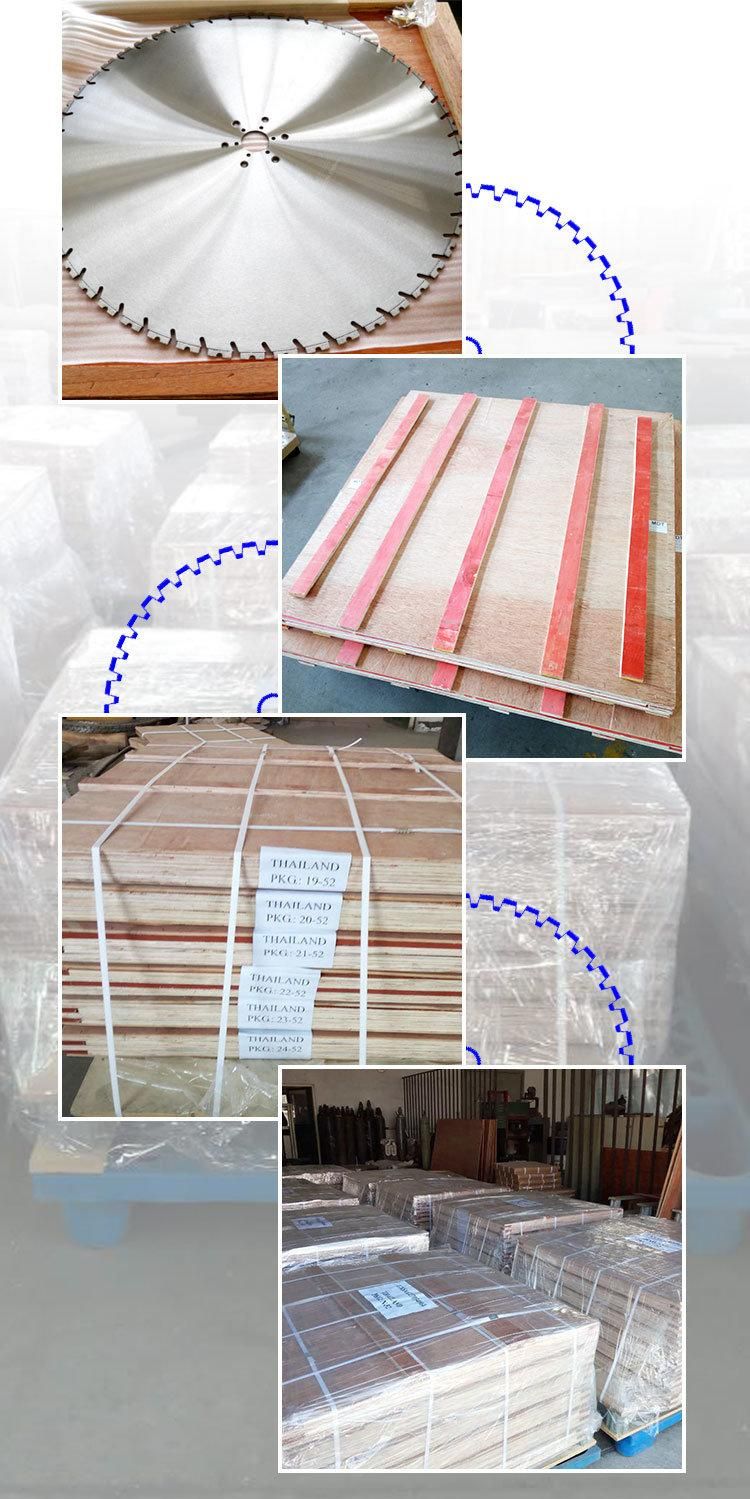

Each laser welded saw blade is packed in white box, then 5pcs put in an export standard plywood, gross weight per plywood is limited within 75kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
