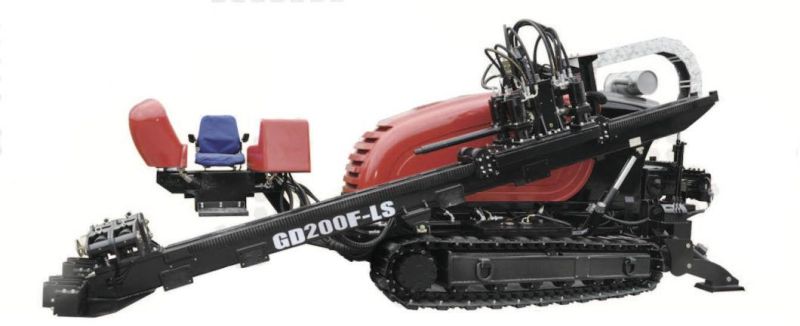

200kn HDD Machine Horizontal Directional Drilling Rig

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HDD-20 Type Crawler Engine Power/Speed Rating 110kw/2300rpm Max. Push & Pullback Force 225/300kn Max. Push & Pullback Speed 60m/Min Max. Drilling Length 300m Dimension 6950*2050*2400 Weight 9500kg Transport Package Standard Exporting Packing Specification 20ton force Trademark Glorytek Origin China Production Capacity 10 Sets/Month

Product Description

200kn Hdd machine Horizontal Directional Drilling Rig




Specification


Item	Parameter	Item	Parameter
Size (L×W×H)(mm)	6950×2050×2400	Max. flow of mud pump  (L/min)	250
Engine Power (KW)	110	Max. pressure of mud pump     (MPa)	8
Rig Weight              (kg)	9500	Max. torque               (N•m)	6500
Max. push & pull force (KN)	225/300	Max. rotation speed     (r/min)	230
Max. push & pull speed   (m/min)	60	Entry drill angle           (°)	12-22*
Walking speed         (km/h)	2.5-4.0	Max. climbing gradient     (°)	17*
Drill rod               (mm)	Ф60×3048	Max Diameter of Aperture  (mm)	Ф750
Auto loading    (pcs)	48(60drill rod)	Max. Drilling Length      (m)	300

Feature

1. auto-loading(optional);
2. power head push-pull reinforcement is reserved;
3. auto anchor(optional);
4. power head rotation speed two stall to adjust(high speed, low speed), push-pull speed three stall to adjust(high speed, middle speed, low speed);
5. track wire control walk, speed two gears to adjust(high speed, low speed);
6. glass fiber reinforced plastics cover, movable operation table with canopy;
7. pilot valve control, movement more easier, comfortable.
8. Mud flow adjust valve, mud stop valve, antifreeze water tank, with water gun.

Main performance characteristics

1.  Equipped with Dongfeng cummins engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in urban area.;
2.  Rotation, push-pull pilot control, operation more portable.
3.Driving head adopts cycloid motor from Eaton, which drives rotation directly, with large torsion, stable performance, and two stall stepless speed regulation. Driving head push-pull adopts cycloid motor from Eaton, which has three stall speed and high construction speed of which leads far ahead in fellow-competitors. The reserved reinforcement device increase construction scope.The hydraulic gear pump adopts military technique, track wire control operation, convenient and fast loading, unloading as well as construction site transition.
4.  Operation table overview is broad, operation table design adopts human-computer construction way, comfortable operation, reduces fatigue strength.
5.  Equipped with φ60×3000mm drill rods,moderate machine size adapts to narrow and small working area and high efficient construction as well.
6.  Surface is with elegant appearance, easy maintenance, fully embody humanist designing idea.
