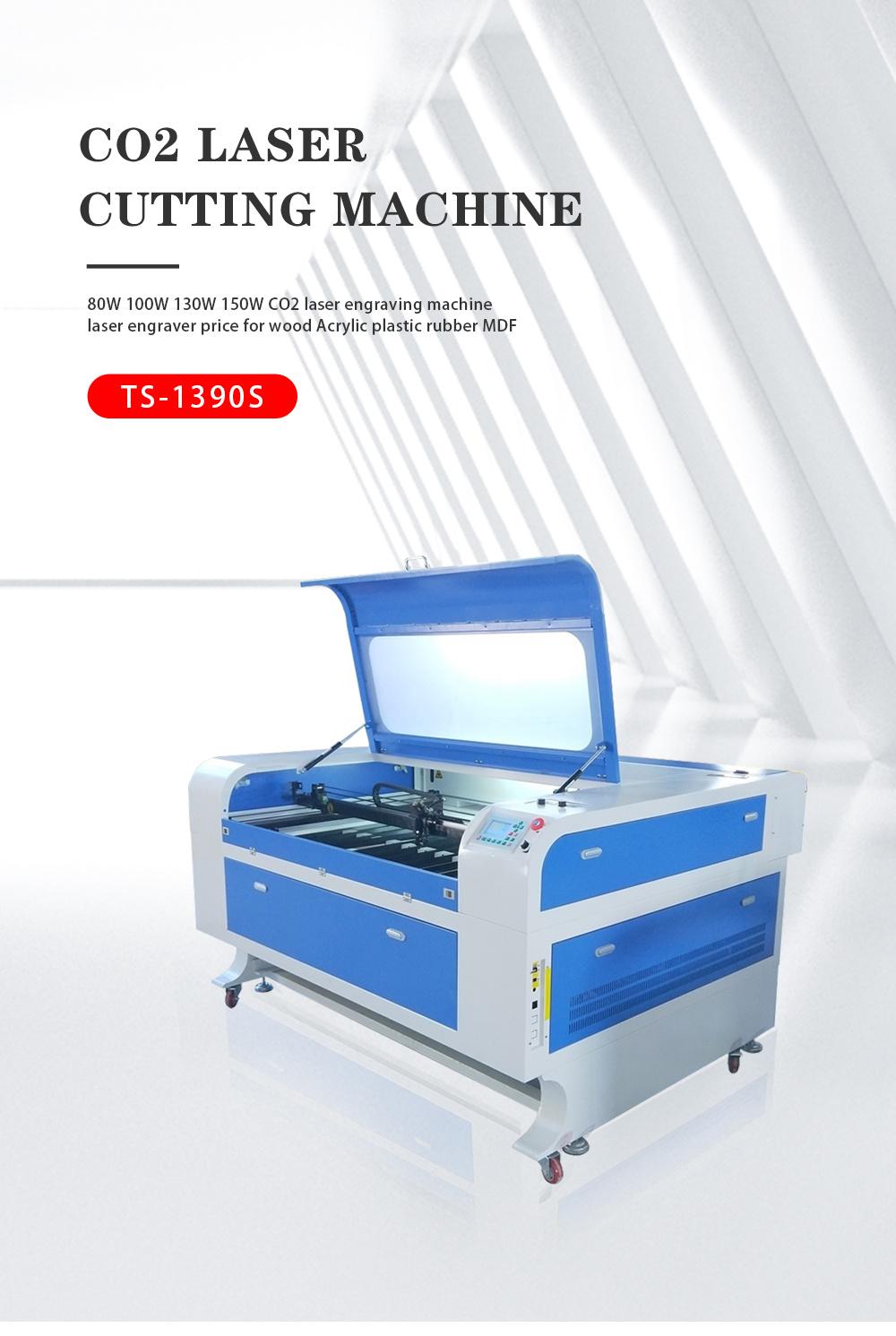

CNC Router 1390 CO2 Laser Engraving Machine 80W 100W 130W Ruida System Rolling Rotary Non-Metal Acrylic Glass MDF

• Warranty：3 Years
• Application：Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry

=== Base Info ===

• Model NO.：LM 1390
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Automatic Grade：Automatic
• Applicable Material：Nonmetal
• X Axis：Linear Square Linear Guides
• Y Axis：Linear Double Square Linear Guides
• Z Axis Adjust Height：180 mm
• Cutting Speed：0-100mm,S
• Transport Package：Standard Plywood Case for Export
• Specification：209*160*134cm
• Trademark：Laser Max
• Origin：China
• HS Code：8456110090
• Production Capacity：100

=== Description ===

Basic Info.

Model NO. LM 1390 Cooling System Water Cooling Technical Class Continuous Wave Laser Automatic Grade Automatic Applicable Material Nonmetal X Axis Linear Square Linear Guides Y Axis Linear Double Square Linear Guides Z Axis Adjust Height 180 mm Cutting Speed 0-100mm/S Transport Package Standard Plywood Case for Export Specification 209*160*134cm Trademark Laser Max Origin China HS Code 8456110090 Production Capacity 100

Product Description


Main feature:

1.Heavy body more steady difficult deformation and protect rust.

2.Support U-download data,support off-line.

3.Front to rear design,support long materials pass.

4.Emergency stop.(turn off the machine immediately when there is an accident)

5.Aluminum srip shape platform can bear heavier materials.Such as acrylic,wood,mdf,etc nonmetal materials.Honeycomb platform suitable for leather,cloth,frabic,paper,etc light materials.

Model	Laser Cutter LM1390
Working Table Size	1300mm *900mm
Laser Tube brand	EFR or Reci can choose
Warranty of Laser tube	Global Warranty
Control System	Ruida 6442S (English/Russian/Spanish/France/ Portuguese)
Working Table	Honeycomb+Cutting blade table
Long material pass through front and back	Support
X axis	Linear Square linear guides
Y axis	Linear double square linear guides
Z axis adjust height	180 mm
Cutting Speed	0-100mm/s
Engraving Speed	0-800mm/s
Resolution	±0.05mm/1000DPI
Minimum Letter	English 1.5×1.5mm (Chinese Characters 2*2mm)
Support Files	BMP,HPGL,PLT,DST and AI
Interface	USB2.0
Software	RD works
Computer system	Windows XP/win7/ win8/win10
Motor	Lead shine Step Motor
Driver	Lead shine
Power Voltage	AC 110 or 220V±10%,50-60Hz
Power cable	European Type/China Type/America Type/UK Type
Working Environment	0-45ºC(temperature)      5-95%(humidity)
Power consumption	<2000W (Total)
Position system	Red-light pointer
Cooling way	Water cooling and protection system
Gross Weight	450KG
Package	Standard plywood case for export
Warranty	All life free tech support, one year warranty, except consumables
Free accessories	Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable
Optional parts	Spare focus lens Spare reflecting mirror Spare rotary for cylinder materials Industrial Water Chiller

Sample:
