High Quality CNC Metal Steel Tube & Pipe Fiber Laser Cutting Machines Equipment

Hebei Zhaokuang Metal Materialsales Co., Ltd. / 2022-06-23

High Quality CNC Metal Steel Tube & Pipe Fiber Laser Cutting Machines Equipment

  • Application:Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
  • Cooling System:Water Cooling
  • Technical Class:Fiber Laser
  • Applicable Material:Metal
  • Structure Type:Fiber Laser
  • Laser Classification:Fiber Laser

=== Base Info ===

  • Model NO.:LT-6020
  • Laser Technology:Fiber Laser
  • Machine Model:Lt-6020
  • Laser Source:Ipg or Raycus
  • Laser Head:Raytool
  • Control System:Cypcut
  • Driving System and Motor:Yaskawa
  • Guide Rail:Hiwin, Taiwan
  • Gear:Yyc, Taiwan
  • Minimum Cutting Width:0.02-0.08 mm
  • Available Cut Pipe Shape:Circular,Rectangular, Oval,etc.
  • Cutting Length:200-6000 mm
  • Transport Package:40 Foot Container
  • Specification:9500*3078*2290mm
  • Trademark:ACME
  • Origin:China
  • HS Code:8456110090
  • Production Capacity:720 Sets,Year

=== Description ===

Basic Info.

Model NO. LT-6020 Laser Technology Fiber Laser Machine Model Lt-6020 Laser Source Ipg or Raycus Laser Head Raytool Control System Cypcut Driving System and Motor Yaskawa Guide Rail Hiwin, Taiwan Gear Yyc, Taiwan Minimum Cutting Width 0.02-0.08 mm Available Cut Pipe Shape Circular,Rectangular, Oval,etc. Cutting Length 200-6000 mm Transport Package 40 Foot Container Specification 9500*3078*2290mm Trademark ACME Origin China HS Code 8456110090 Production Capacity 720 Sets/Year

Product Description

High Quality CNC Metal Steel Tube & Pipe Fiber Laser Cutting Machines Equipment

Order from today, we send masks to you upon deposit: N95 Face Masks 200PCS or Normal Disposable Face Masks 400PCS.


High Quality CNC Metal Steel Tube & Pipe Fiber Laser Cutting Machines Equipment


Configurations
NoItemQTYBrand
1Laser SourceIPG/Raycus
2Laser Head1Switzerland Raytools
3Control System1Cypcut
4Machine Bed116-25mm Welded Steel Panel
5Electrical Part1Schneider
6Pneumatically Part1SMC
7Guiding Rail1Taiwan Hiwin 35mm
8Helical Rack1Taiwan YYC 3mol
10Nesting Software1/
11Motor1Yaskawa Servo Sigma 7
12Reducer1France Motorvario
13Water Chiller1Hanli(Option: Tongfei)
14Air Compressor1Chinese brand
15Dust Extraction1Acme
16Waste Collection1Trolley for material shorter than 250mm

Specifications
No.ItemParameter
 Maximum Travelling speed70m/min
 Laser wavelength1070-1080 nm
 Minimum cutting width0.2mm
 Rated output power10--100% (100W-1000W)
 X And Y axis positioning accuracy≤±0.03mm
 Repeat positioning accuracy≤±0.02mm
 Available cut pipe shapeSquare, Round, Rectangular, Oval, Angle, Channel, etc.
 Acceleration1G
 Oiling systemsAutomatic oiling
 Effective length of cutting6000mm/8000mm/10000mm(customized order acceptable)
 Size(LT-6020)11*3.9*2.5m (Length * width * height)
 Power 35KW
 Power supply380v50Hz ±10%
 Red PositioningYes
 Auxiliary gasesOxygen, Nitrogen, Air
 Supported file formatsIGS (Available PRO/E. UG, Solid works Photo)
 Diameter 20mm-220mm (customized order acceptable)
 Laser tracking systemAutomatic follow-up
 Tail Waste Length<180mm

Details
  1. 16-25mm machine bed is cut from whole steel panel with heat and aging treatment, milled by Italy COLGAR machining center with high precision, good stability, no deformation; the bed will be put in furnace to heat to 600 degree and keep temperature to 200 degree for a week and then be taken out for cooling naturally. The process takes about 15-20 days.
    High Quality CNC Metal Steel Tube & Pipe Fiber Laser Cutting Machines Equipment
  2. X axis is cantilever structure: one piece design which ensures the cutting stability, no shake. And it is milled by high accuracy cnc milling center.
    High Quality CNC Metal Steel Tube & Pipe Fiber Laser Cutting Machines Equipment

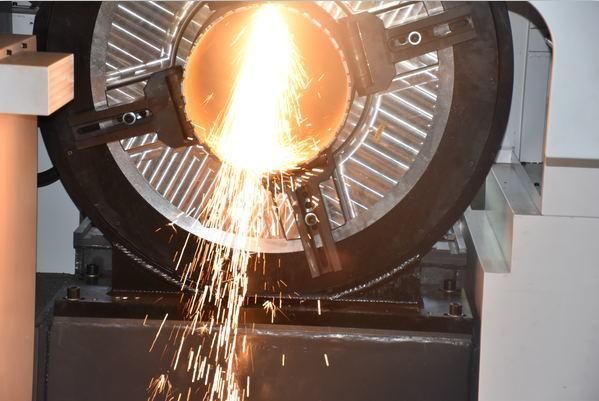

  3. Celf-centering front chuck is with 4.5kw Yaskawa servo with France Motovario reducer. The rotation speed can be up to 120r/min, and the clamp pressure is adjustable. Two pairs of clamps can move simultaneously to fix all kinds of shapes of pipes. The chuck is with three levels to accomodates20-220mmm diameter tubes and pipes.

  4. High Quality CNC Metal Steel Tube & Pipe Fiber Laser Cutting Machines Equipment

  5. Material Unloading5 pcs of automatically adjustable pneumatic carrier wheel brackets,   suitable for 20-220mm different types of pipe diameter to ensure the longer size of the pipe clamp accuracy due to its flexing. carrier wheel bracket size is adjustable with marking scale. When you need to lift pipe, the corresponding wheel bracket will rise. When the X-axis moves near to the corresponding rack, it will automatically fall down to avoid interference. The unloading feeding system is also equipped with pneumatic carrier wheel bracket. When the required material is hoisted, the corresponding material supporter will rise. When the cutting is complete, the corresponding supporter will automatically fall down, and the material receiving holder has the automatic turnover function.

  6. High Quality CNC Metal Steel Tube & Pipe Fiber Laser Cutting Machines Equipment
  7. IPG Laser Cutting Capacity
  8. RESONATOR IPGYLS-1KWYLS-2KWYLS-3KWYLS-4KWYLS-6KW
    Power (W)10002000300040006000
    Recommended cooling power (kW)2,14,26,48,512,6
    Electrical supply (kW)3,16,19,112,118,2
    Maximum sheet thickness:
    Steel (mm)1015202025
    Stainless Steel (mm)48121520
    Aluminium (mm)26121215
    Brass (mm)246810
    Copper (mm)246810
Samples
High Quality CNC Metal Steel Tube & Pipe Fiber Laser Cutting Machines Equipment

Shipment
High Quality CNC Metal Steel Tube & Pipe Fiber Laser Cutting Machines Equipment
