- Condition:New
- Customized:Customized
- Voltage:380V
- Composition:Homogenizing
- Processing Material:Special Agricultural Products
- Process:Mild Processing
=== Base Info ===
- Model NO.:GJB
- Name:Ce Certificate High Pressure Homogenizer for Dairy
- Product Material:Stainless Steel 304,316
- Capacity:500L,H--10000L,H
- Pressure:250bar to 700bar
- Certificate:Ce Certificate
- Usage:Milk, Juice, Beverage, Butter, Honey, Cream
- High Pressure Homogenizer:Customized Electricity Motor
- Motor:3phases
- Homogenizersize:Depending The Capacity
- Delivery:10 Days
- Warranty:1 Year
- Working Life:More Than 10 Years
- Packing:Wooden Box
- OEM:Yes
- Spare Part:Available
- Transport Package:Standard Wooden Box
- Specification:CE
- Trademark:KAIQUAN
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:100 Units,Month
=== Description ===
Basic Info.
Model NO.
GJB
Name
Ce Certificate High Pressure Homogenizer for Dairy
Product Material
Stainless Steel 304/316
Capacity
500L/H--10000L/H
Pressure
250bar to 700bar
Certificate
Ce Certificate
Usage
Milk, Juice, Beverage, Butter, Honey, Cream
High Pressure Homogenizer
Customized Electricity Motor
Motor
3phases
Homogenizersize
Depending The Capacity
Delivery
10 Days
Warranty
1 Year
Working Life
More Than 10 Years
Packing
Wooden Box
OEM
Yes
Spare Part
Available
Transport Package
Standard Wooden Box
Specification
CE
Trademark
KAIQUAN
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
100 Units/Month
Product Description

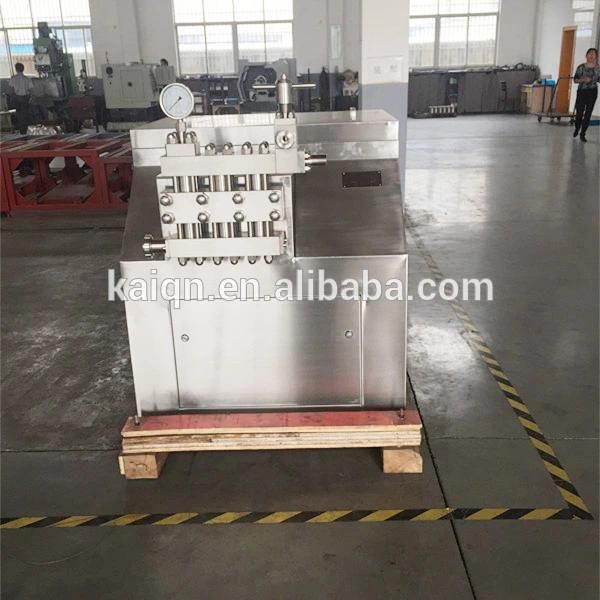

CE Certificate High Pressure Homogenizer For Dairy Fruit series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
CE Certificate High Pressure Homogenizer For Dairy Fruit .
