Hw431 Hydraulic Surface DTH Blasting Rock Drilling Rig for Blasting Hole

=== Base Info ===

=== Description ===

Rig Model

Power

Rated Power

HW431

YuchaiYC4DK-100

73.5 kW

Drill Pipe Sizes

76 X 3,000 mm

Hammer

4"/5"

Feed Force

12-25 kN

Pull Up Force

25 kN

Feed Type

Chain & Cylinder

Feed Speed

0.3s/0.9s

Tramming Speed

2km/h/3km/h

Working pressure

0.7-2.5Mpa

Gradient

25°

Total Weight

7,340kg

Transportation Dimensions

7,500 X 2,330 X 2,770mm

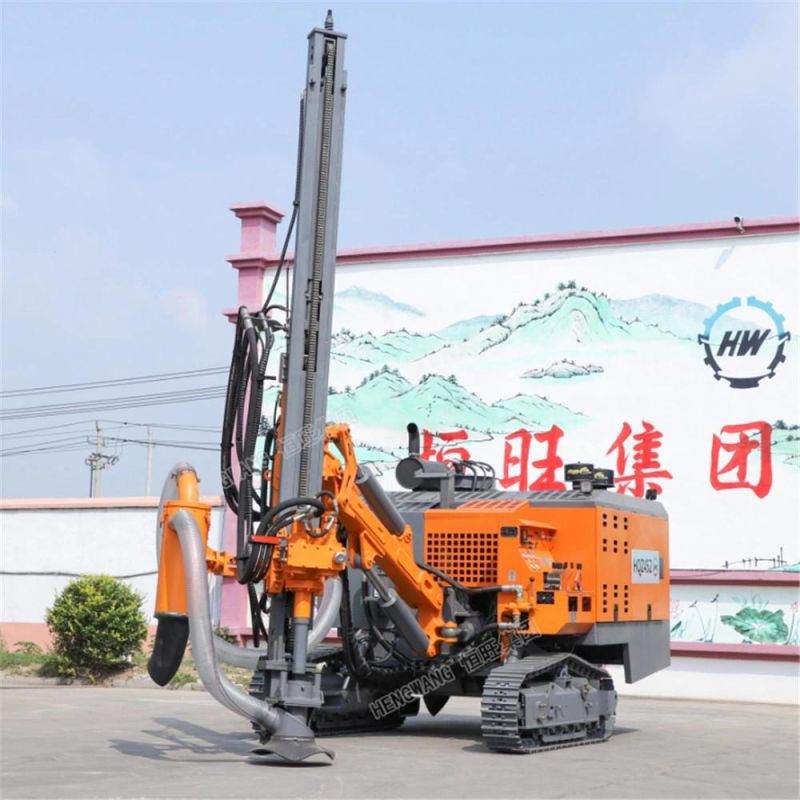

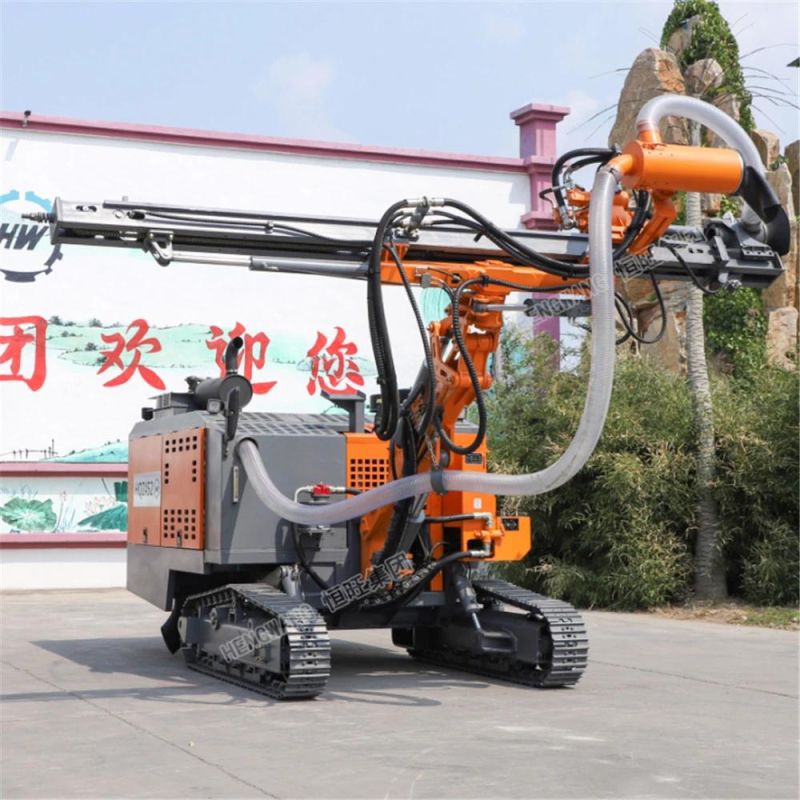

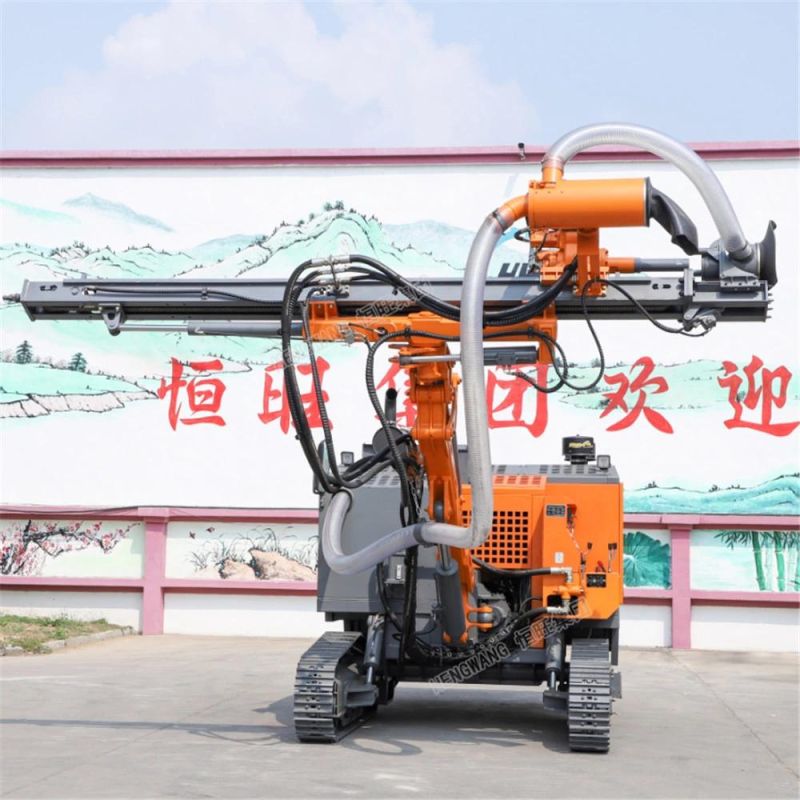

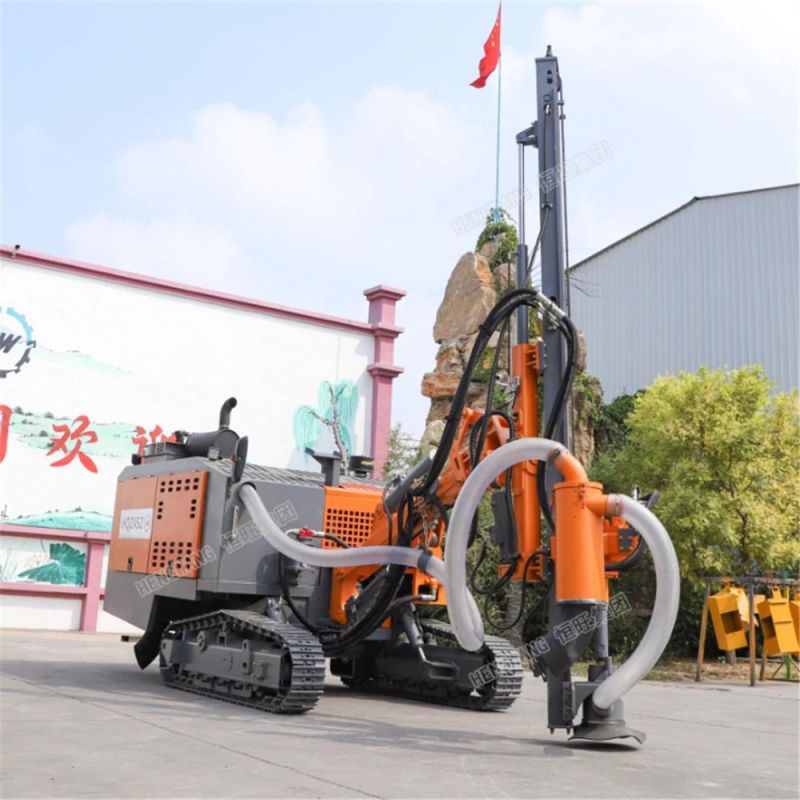

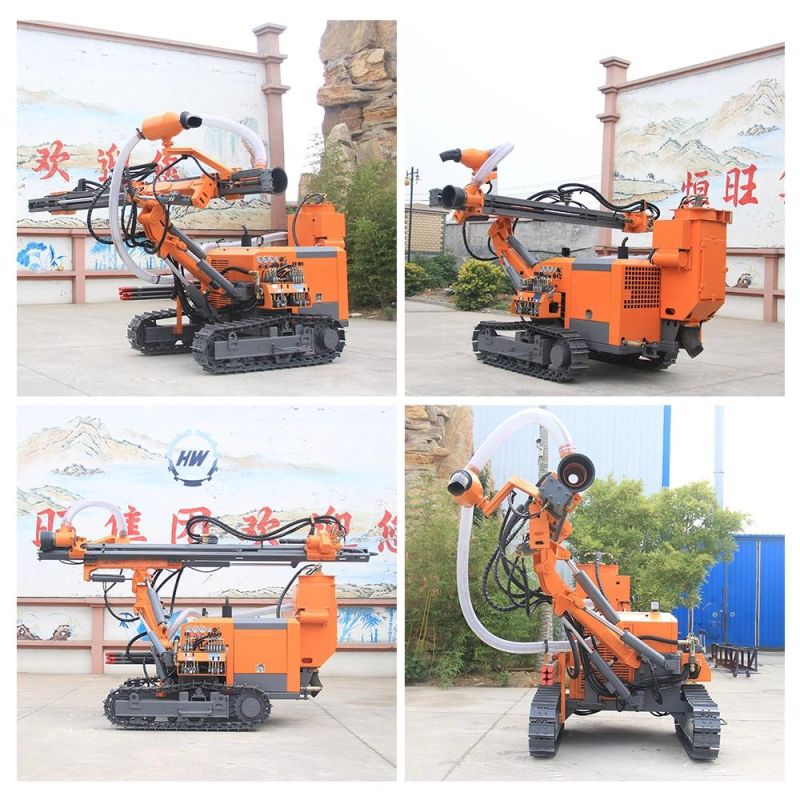

Picture:



Contact:Cici Yang

Jining Hengwang Mining Machinery Co., Ltd.
