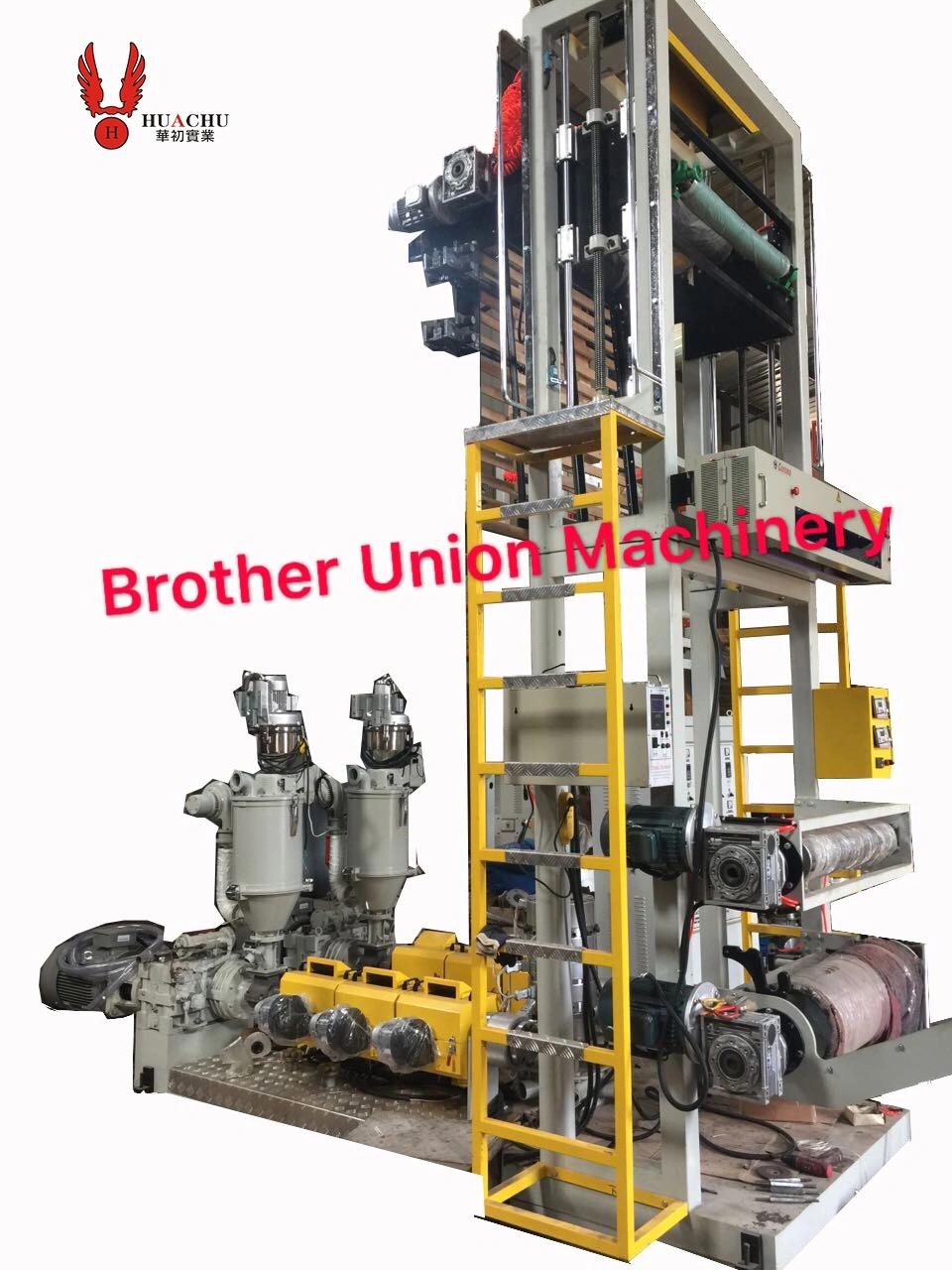

ABA Mini HDPE LDPE LLDPE Extruder Agriculture Polyethylene Plastic Film Blowing Machine

=== Base Info ===

=== Description ===
FEATURESUITABLE MATERIALHDPE, LDPE,LLDPELAYER NUMBER3-ABAFILM THICKNESSHD: 0.01-0.06MM, LD: 0.03-0.08MMMAX OUTPUT100KG/HMAX FILM WIDTH900MMEXTRUSION UNITSCREW DIAMETERΦ45X2SCREW L/D RATIO30/1SCREW MATERIALBIMETALLICBARREL MATERIALBIMETALLICBARREL THERMO CONTROL3X2BARREL COOLING FAN200WX3X2SCREEN CHANGERSTANDARDDRIVING MOTOR18KWX2  SIEMENSGEARBOX#146EXTRUSION DIE UNITDIEHDABAΦ60/80DIE TYPEFIXEDDIE THEROMO CONTROL2AIR RINGDUAL LIPFLANGE THERMO CONTROL2AIR BLOWER5.5KW, CHUANFAN TAIWANTAKE UP UNITTAKE UP TYPEFIXEDBUBBLE CAGE MATERIALWOODENTOP NIP MATERIALWOODENTAKE UP ROLL MATERIALHIGH TEMP RUBBERTAKE-UP ROLLER LENGTH1000MMGUSSETINCLUDEDTAKE-UP MOTOR1.5KW GEAR MOTORTAKE-UP SPEED10-80M/MINPINCH PATTERNPNEUMATICWINDING UNITWINDING TYPESINGLE MANUAL WINDERWINDING ROLLER LENGTH1000MMWINDING SHAFTSTOPPER SHAFTX2BANANA ROLLERWITHMAX DIA.OF WINDED ROLL800MMWINDING MOTORTORQUE MOTORSPEED CONTROLSPEED CONTROLLERCONTROL PANELHEATING SYSTEMACR+PID (ENERGY SAVING)TEMP. CONTROLLERFOTEK (TAIWAN)WORKING VOLTAGE380V,50HZINVERTER BRANDDELTA









Welcome to contact  us for more details and prices!!!



WENZHOU BROTHER UNION MACHINERY CO.,LTD.

Cellphone:0086-18367752517 (Gloria Lin)
Telephone:0086-0577-66611121

Address:Ruian City, Zhejiang, China
