• Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal
• Structure Type：Gantry Type
• Laser Classification：Fiber Laser

=== Base Info ===

• Model NO.：LT-6020
• Laser Technology：Laser Fiber
• Machine Model：Lt-6020
• Laser Source：Ipg or Raycus
• Laser Head：Raytool
• Control System：Cypcut
• Driving System and Motor：Yaskawa
• Guide Rail：Hiwin, Taiwan
• Gear：Yyc, Taiwan
• Minimum Cutting Width：0.02-0.08 mm
• Available Cut Pipe Shape：Circular,Rectangular, Oval,etc.
• Cutting Length：200-6000 mm
• Transport Package：40 Foot Container
• Origin：China
• HS Code：8456110090
• Production Capacity：720 Sets,Year

=== Description ===

Basic Info.

Model NO. LT-6020 Laser Technology Laser Fiber Machine Model Lt-6020 Laser Source Ipg or Raycus Laser Head Raytool Control System Cypcut Driving System and Motor Yaskawa Guide Rail Hiwin, Taiwan Gear Yyc, Taiwan Minimum Cutting Width 0.02-0.08 mm Available Cut Pipe Shape Circular,Rectangular, Oval,etc. Cutting Length 200-6000 mm Transport Package 40 Foot Container Origin China HS Code 8456110090 Production Capacity 720 Sets/Year

Product Description

Best Quality Automatic Metal Tube Fabrication Pipe Tube Laser Cutter






Configurations

No	Item	QTY	Brand
1	Laser Source	1	IPG/Raycus
2	Laser Head	1	Switzerland Raytools
3	Control System	1	Cypcut
4	Machine Bed	1	16-25mm Welded Steel Panel
5	Electrical Part	1	Schneider
6	Pneumatically Part	1	SMC
7	Guiding Rail	1	Taiwan Hiwin 35mm
8	Helical Rack	1	Taiwan YYC 3mol
10	Nesting Software	1	/
11	Motor	1	Yaskawa Servo Sigma 7
12	Reducer	1	France Motorvario
13	Water Chiller	1	Hanli(Option: Tongfei)
14	Air Compressor	1	Chinese brand
15	Dust Extraction	1	Acme
16	Waste Collection	1	Trolley for material shorter than 250mm


Specifications

No.	Item	Parameter
	Maximum Travelling speed	70m/min
	Laser wavelength	1070-1080 nm
	Minimum cutting width	0.2mm
	Rated output power	10--100% (100W-1000W)
	X And Y axis positioning accuracy	≤±0.03mm
	Repeat positioning accuracy	≤±0.02mm
	Available cut pipe shape	Square, Round, Rectangular, Oval, Angle, Channel, etc.
	Acceleration	1G
	Oiling systems	Automatic oiling
	Effective length of cutting	6000mm/8000mm/10000mm(customized order acceptable)
	Size(LT-6020)	11*3.9*2.5m (Length * width * height)
	Power	35KW
	Power supply	380v50Hz ±10%
	Red Positioning	Yes
	Auxiliary gases	Oxygen, Nitrogen, Air
	Supported file formats	IGS (Available PRO/E. UG, Solid works Photo)
	Diameter	20mm-220mm (customized order acceptable)
	Laser tracking system	Automatic follow-up
	Tail Waste Length	<180mm

Details

1. 16-25mm machine bed is cut from whole steel panel with heat and aging treatment, milled by Italy COLGAR machining center with high precision, good stability, no deformation; the bed will be put in furnace to heat to 600 degree and keep temperature to 200 degree for a week and then be taken out for cooling naturally. The process takes about 15-20 days.


2. X axis is cantilever structure: one piece design which ensures the cutting stability, no shake. And it is milled by high accuracy cnc milling center.


3. Celf-centering front chuck is with 4.5kw Yaskawa servo with France Motovario reducer. The rotation speed can be up to 120r/min, and the clamp pressure is adjustable. Two pairs of clamps can move simultaneously to fix all kinds of shapes of pipes. The chuck is with three levels to accomodates20-220mmm diameter tubes and pipes.
4.


5. Material Unloading5 pcs of automatically adjustable pneumatic carrier wheel brackets,   suitable for 20-220mm different types of pipe diameter to ensure the longer size of the pipe clamp accuracy due to its flexing. carrier wheel bracket size is adjustable with marking scale. When you need to lift pipe, the corresponding wheel bracket will rise. When the X-axis moves near to the corresponding rack, it will automatically fall down to avoid interference. The unloading feeding system is also equipped with pneumatic carrier wheel bracket. When the required material is hoisted, the corresponding material supporter will rise. When the cutting is complete, the corresponding supporter will automatically fall down, and the material receiving holder has the automatic turnover function.
6.


7. IPG Laser Cutting Capacity

8. RESONATOR IPG	YLS-1KW	YLS-2KW	YLS-3KW	YLS-4KW	YLS-6KW
   Power (W)	1000	2000	3000	4000	6000
   Recommended cooling power (kW)	2,1	4,2	6,4	8,5	12,6
   Electrical supply (kW)	3,1	6,1	9,1	12,1	18,2
   Maximum sheet thickness:
   Steel (mm)	10	15	20	20	25
   Stainless Steel (mm)	4	8	12	15	20
   Aluminium (mm)	2	6	12	12	15
   Brass (mm)	2	4	6	8	10
   Copper (mm)	2	4	6	8	10

Factory

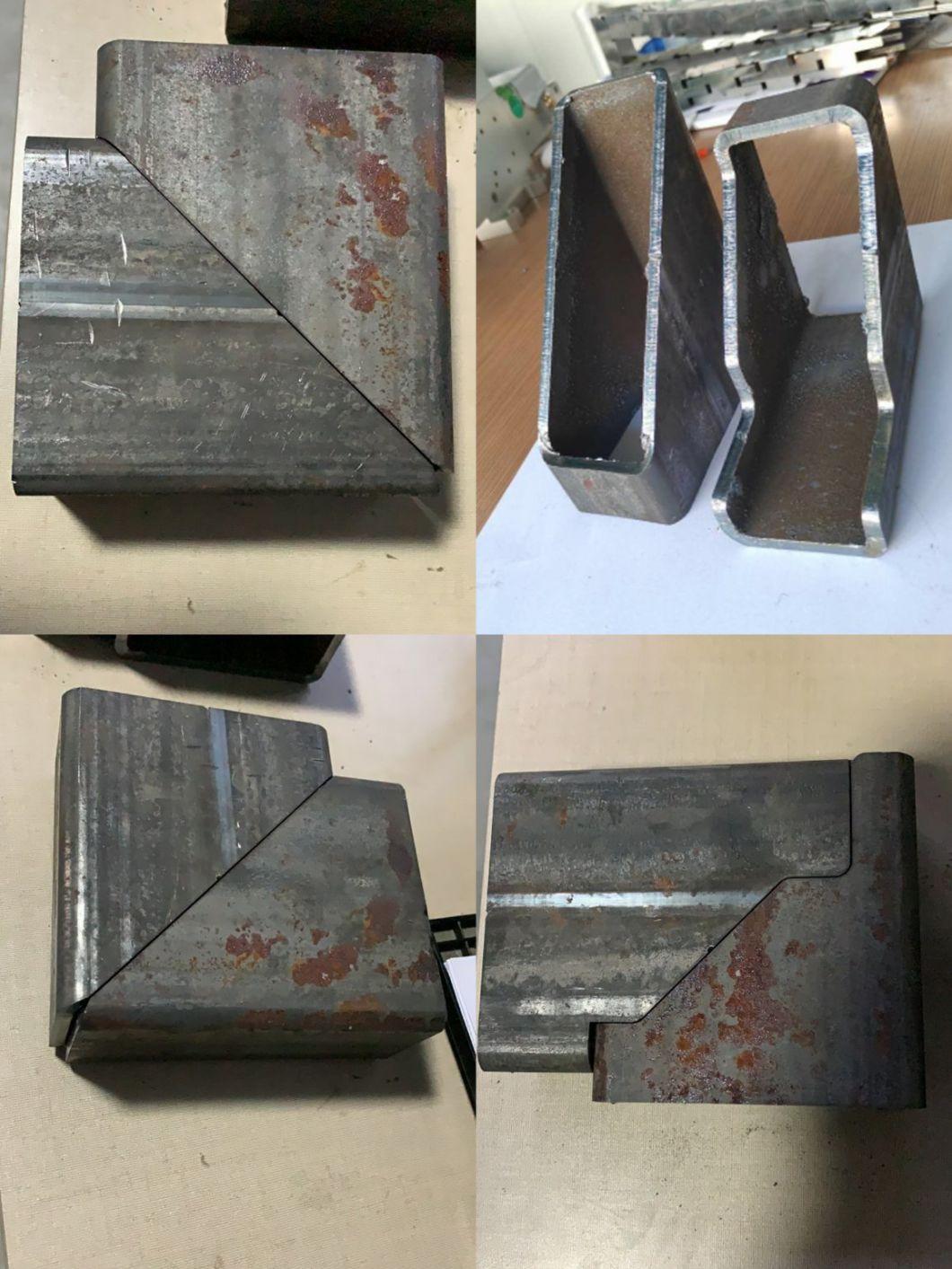

Capabilities of Modern Tube Cutting Machines

Relative newcomers to the metal forming and fabricating industry, laser machines are used for cutoff; beveling(3D Laser Head); and cutting slots, holes, notches, and other features of any conceivable size and shape in tube and pipe. Used most commonly for cutting the manufacturing industry's favored material, mild steel, they also are useful for cutting stainless steel, aluminum, and titanium.

Laser tube cutting machines for general fabrication work typically accept up to 12m lengths of tube and are equipped with load carriages that hold large  bundles of tube.

It can accept information in CAD format and use the information for nesting parts and developing cutting sequences and paths.
