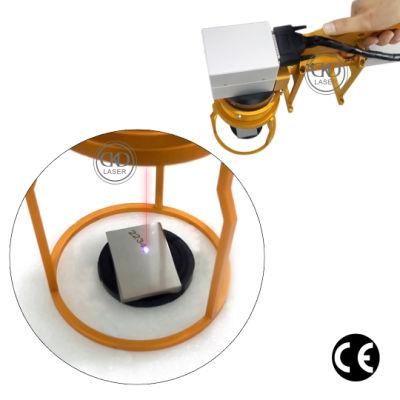

Handheld Laser Marker for Metal
Xiamen Teyate Aluminum Co., Ltd. / 2022-06-23
- Laser Visibility：Invisible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Solid Laser
=== Base Info ===
- Model NO.：CKD-PLMD-20,30,50
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Function：Marking, Engraving and Cutting
- Laser Power：Optional: 20W,30W,50W
- Application Material：Metal and Some Non-Metal
- Marking Speed：Optional: 1-2000,1-4000,1-7000
- Shipping Date：3-5 Work Days After Payment
- Warranty：2 Years for Laser Source, 1 Year for Others
- Computer：Option, with or Without, English Lanuage
- Transport Package：Wooden Box
- Specification：CE passed, Europe, Asia, America Standard
- Trademark：CKD LASER
- Origin：Shenzhen, China
- HS Code：8486204900
- Production Capacity：200 Set,Month
=== Description ===
Computer language: English as basic, you can choose your language after receiving. Marking Software EzCad Language: English, Chinese, Korean, Japanese Control Board BJJCZ Original newest version Galvonameter Digital scanehead Speed: 1-2000/1-4000/1-7000/1-10000 CD with standard attchment, every type with with marking software inside Training video with send traning video link after receiving machine Focusing toole with one LED on machine or two LED on galvanometer help you find right focus easily, standard attchment, every type with
TECH PARAMETERSParameters Unit Data Data Data Type CKD-PLMD-20 CKD-PLMD-30 CKD-PLMD-30 Laser Average Output Power W 21±1 31±1 51±1 Laser Type Fiber Laser Fiber Laser Fiber Laser Central Wavelength nm 1064 1064 1064 Repetition Frequency KHz 20-80 30-80 50-100 Beam Quality M2 <1.6 <1.6 <1.6 Focus Spot Diameter mm <0.01 <0.01 <0.01 Max. Power of Single Pulse mj 1±0.05@20KHz 1±0.05@30KHz 1±0.05@30KHz Life-span of Fiber Laser Module hrs ≥100,000 ≥100,000 ≥100,000 Marking Speed of Single Line mm/s <9000 <9000 <9000 Temperature of Operation Environment ºC 0-40 0-40 0-40 Cooling Mode Air Cooling Air Cooling Air Cooling Control board and software EzCad2 EzCad2 EzCad2 Computer Operation System Windows 7/8/10 Windows 7/8/10 Windows 7/8/10 Computer Requested Choosable Choosable Choosable Power Source Requirement 90-240V/50-60Hz/2KVA 90-240V/50-60Hz/2KVA 90-240V/50-60Hz/2KVA
ADVANTAGE
* Multi material mark, metal and non-metal.
* Muil funstion, can mark series number, logo, bar code, QR and so on.
* Fast speed, improve work effeciency.
* Easier foucs by focus holder.
* Moving marking by trigger, marking big material is easy.

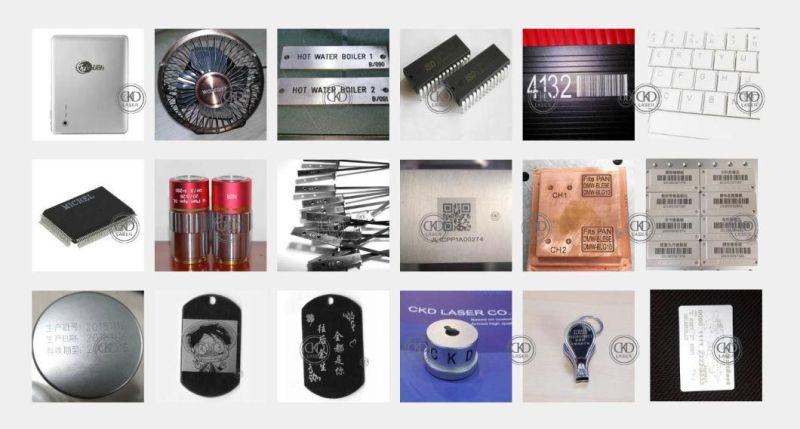

MARKING SAMPLES SHOW
PACKING & SHIPPING
* SAFETY PROTECTIVE INNER PACKING
* WOODEN BOX OUTSIDE PACKING
* Shipping by air, by sea, by car, by train and by combined transport, send to all over the world
CONTACT US / ONLINE SERVICE:
Please send your inquiry or place order with certain configuration directly by following dialog box, we will reply you immediately.
Please tell us your application if you need configuration suggestion
