Stainless Steel Spiral Freezer Belt, Spiral Cooler Belt, Spiral Proofer Belt, Spiral ...

• Usage：Biscuit, Cake, Pizza, Bread
• Power Source：Electric
• Timing Device：With Timing Device
• Type：Freezing or Cooling
• Customized：Customized
• Wire Diameter：1.2,1.4,1.5,1.6,1.8mm

=== Base Info ===

• Model NO.：KSD - SP1
• Spiral Pitch：3.0 - 25.4 mm or Customized
• Rod Diameter：5,6,7 mm
• Rod Pitch：19.05,25.4,27.43,30,30.5,38.1mm
• Width：Can Be Customized
• Mesh Overlay Styles：Standard Balanced Weave , Unilateral Weave
• Turn Radius：1.0 - 2.5, 1.0 by Adding One Row Link
• Side Guard：None , 15mm From The Conveying Surface
• Transport Package：Wooden Box
• Specification：customized
• Trademark：KENSIDE
• Origin：China
• HS Code：84389000
• Production Capacity：2000meters,Month

=== Description ===

Basic Info.

Model NO. KSD - SP1 Spiral Pitch 3.0 - 25.4 mm or Customized Rod Diameter 5/6/7 mm Rod Pitch 19.05/25.4/27.43/30/30.5/38.1mm Width Can Be Customized Mesh Overlay Styles Standard Balanced Weave / Unilateral Weave Turn Radius 1.0 - 2.5, 1.0 by Adding One Row Link Side Guard None / 15mm From The Conveying Surface Transport Package Wooden Box Specification customized Trademark KENSIDE Origin China HS Code 84389000 Production Capacity 2000meters/Month

Product Description

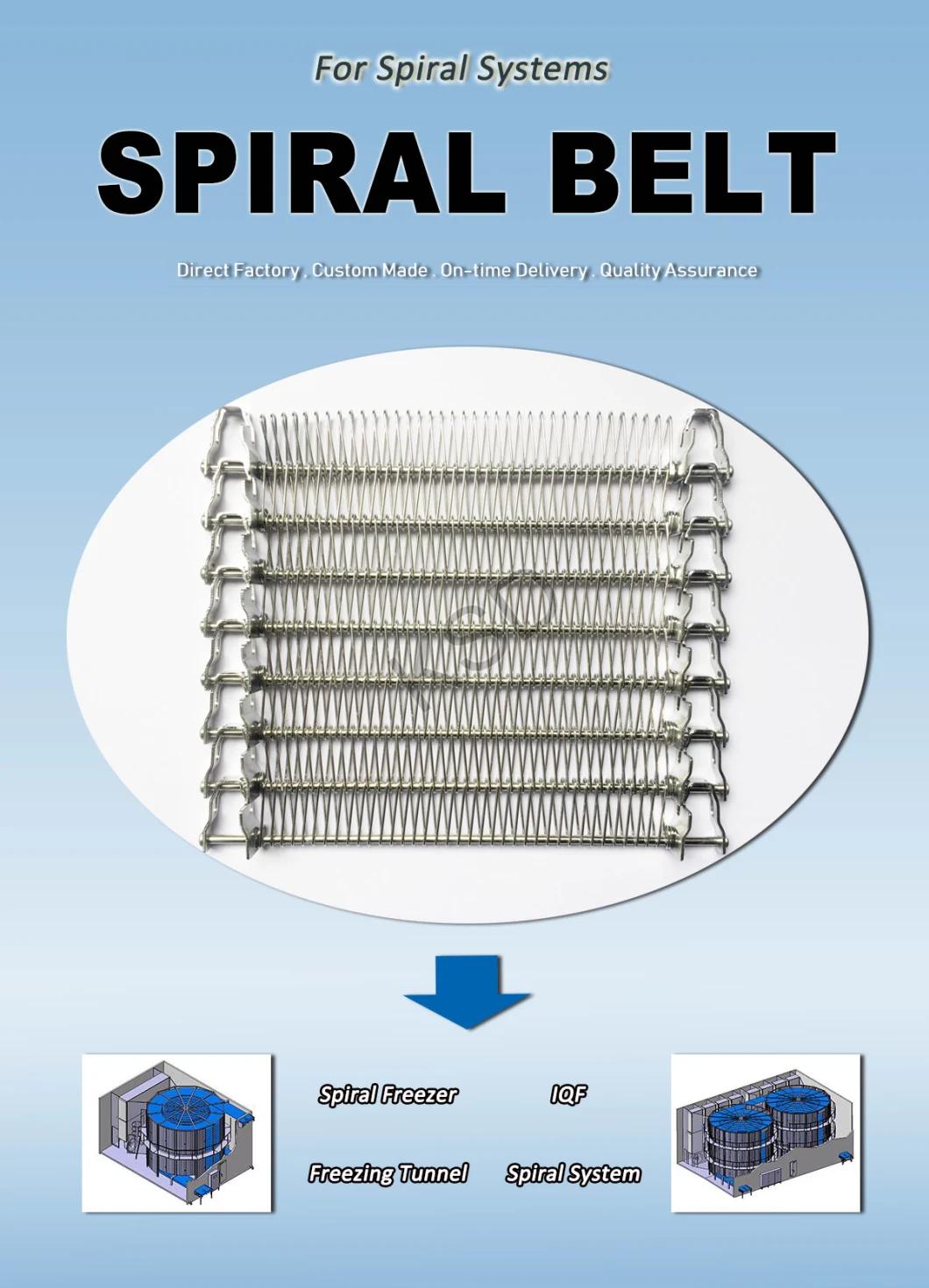

Stainless Steel Spiral Freezer Belt, Spiral Cooler Belt, Spiral Proofer Belt, Spiral Cooker Belt

Spiral belt is commonly used in the food industry, with the ability to side flex, spiral belt is designed to be used as belts for spiral systems. Popular in freezers, coolers, dryers, cookers, pasteurizer, transfers and more.

Advantages:
1.        Smooth belt surface
2.        Good air circulation and easy to clean
3.        Easy to maintain, side guard available
4.        Both straight running and spiral is available, can go around 180°curves
5.        Pickling all welded parts and degreasing whole belt are our standard procedure

Typical Applications:
Transport, Heating, Drying, Drainage, Elevating, De-elevating, Cooking, Cooling or Freezing products such as bread, pastry, vegetables, potatoes, fish and meat, blanching vegetables, proofing dough, drying, baking or pasteurizing.





Specifications:


Material	food grade stainless steel 304 or 316
Belt Width	152 - 1600 mm
Rod Diameter	5 / 6 / 7mm
Rod Pitch	19.05/25.4/27.43/30/30.5/38.1mm
Wire Diameter	1.2/1.4/1.5/1.6/1.8mm
Spiral Pitch	3.0 - 25.4 mm or customized
Mesh Overlay	None / Standard Balanced Weave / Unilateral Weave
Turn Radius	1.0 - 2.5, 1.0 by adding one row link
Side Guard	none / 15mm from the conveying surface

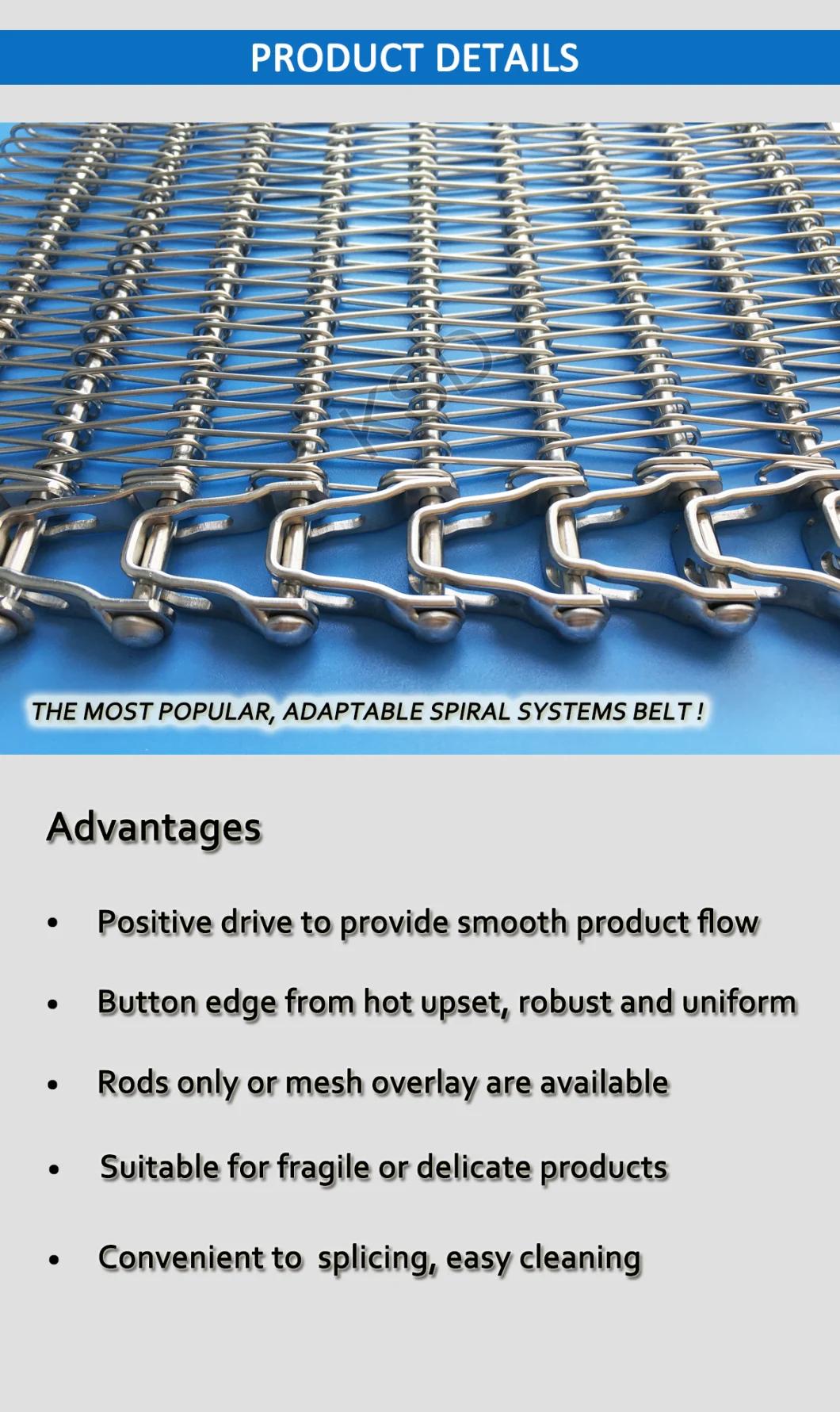

Product Details:

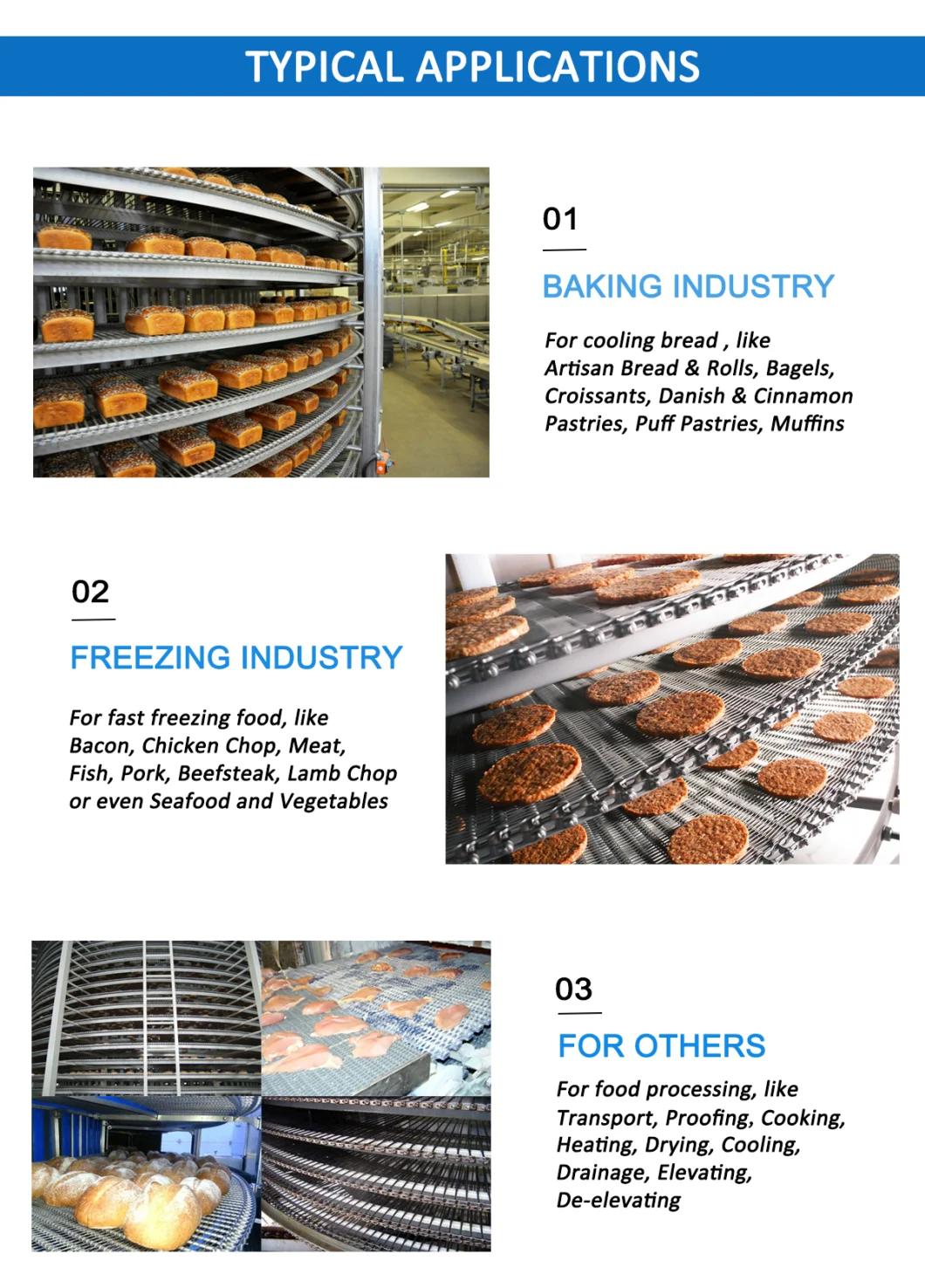

Applications:


Packing and Delivery:

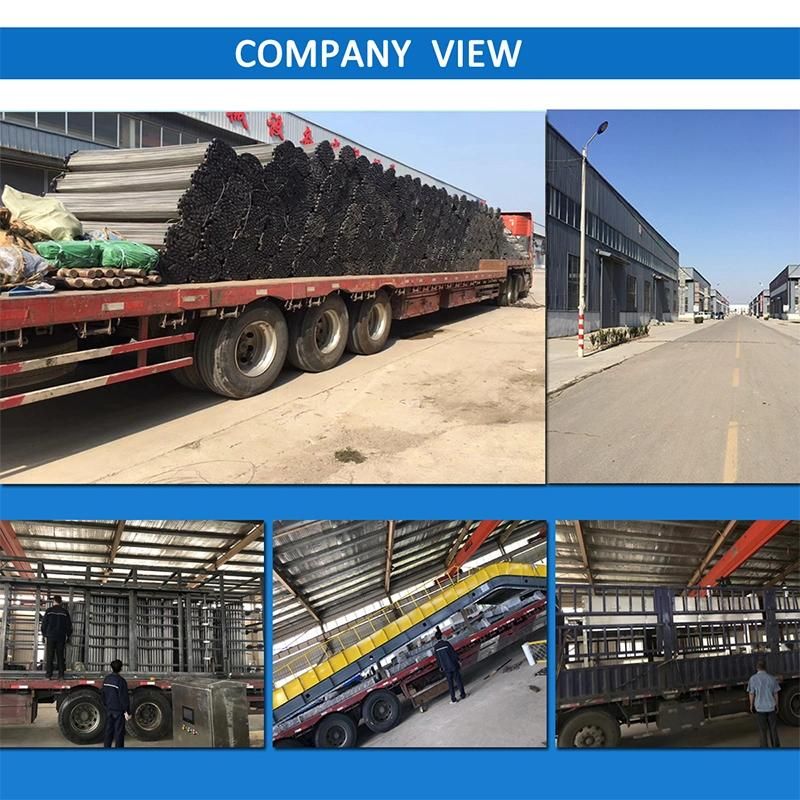

Company View:


Founded in 2001, Shandong Kenside Machinery Manufacturing Co., Ltd. is located at town of metal conveyor belt - Dezhou, China. With workshop covers an area of more than 16, 000 square meters, it specialise in R&D, design, production and sale of all kinds conveyor belts and chains. There are more than 10 engineers and 120 employees and workers at our factory now.

Our main products are as followings: Chain driven belts, chain plate belts, roller conveyor, spiral belts, flat wire belts, flat flex belts, eye link belts, sprockets, etc. We can also design, produce and OEM all kinds of conveyors according to your requirements.

"Good Quality, Best Service" is our principle, welcome friends from all over the world to visit and enquiry.
