Gas Distribution Pipe Extrusion Line/ Water Supply Pipe Production Line

=== Base Info ===

=== Description ===

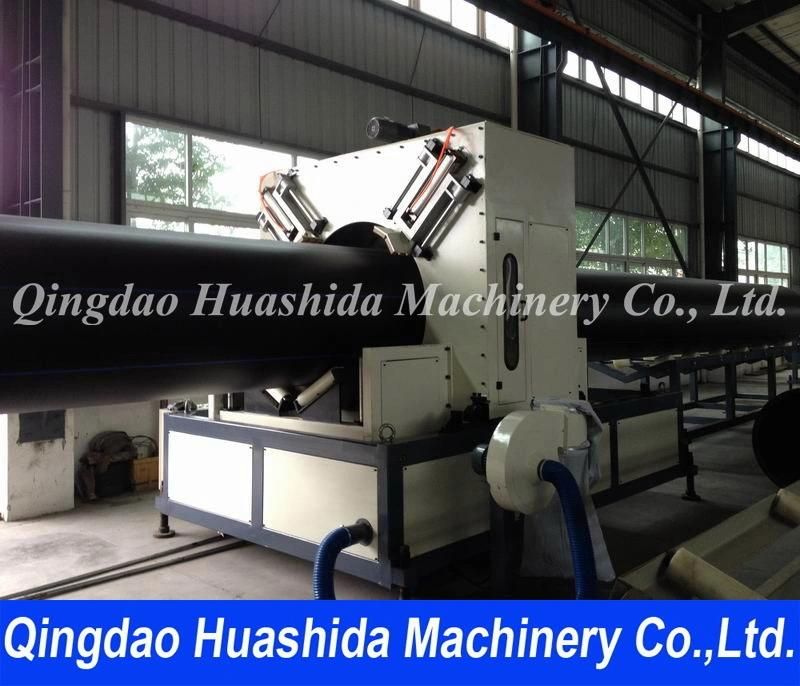

 Equipments ListQ'ty1 Vacuum loader 1 Set2Hopper dryer1 Set3High-effecient single screw extruder1 Set4Die mould (20-630mm)5 Set525/25 single screw extruder for mark line 1 Set6Vacuum calibrating stand 1 Set7Water spraying tank 1 Set8Hauling machine1 Set9Cutting machine1 Set10Stacker1 Set

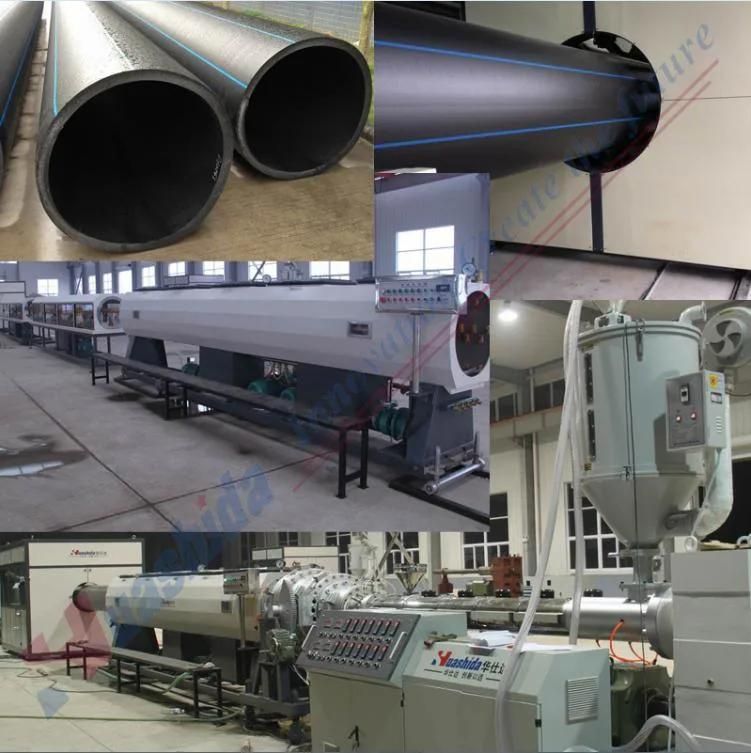

Plastic Pipes produced by this line has excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on. It has become the first choice for the city gas pipe, water supply pipe, foundation pipe, landfill collection pipe, watermain, geothermal heating etc.ModelPipe diameterScrewKiloWattOutputDimension of lineSPEG-6320-63mmSJ65X30120kw120-160kg/h26X1.8X3MSPEG-25075-250mmSJ90X30180kw350-400kg/h40X3X3MSPEG-630315-630mmSJ120X30315kw700-900kg/h60X3X3M

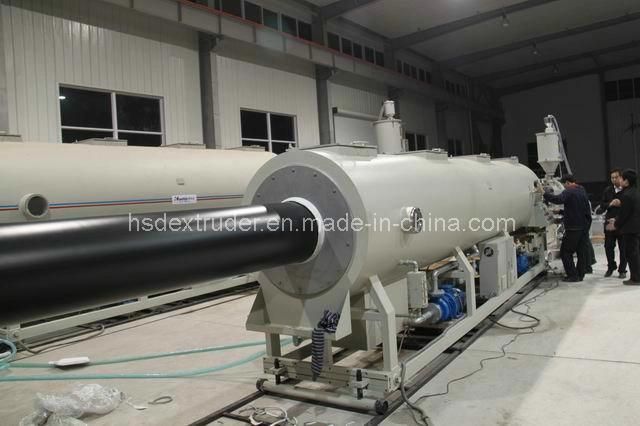

Pre-Sales Service
 Inquiry and consulting support.
Equipment pre-commissioning& testing support.
 View our Factory.


After-Sales Service
 Machinery warranty time is 12 months from the date of Bill of Lading. electronic parts 6 months.
 Training how to install the machine and how to operate the machine.
 Engineers available to service machinery overseas at customer cost.

Qingdao Huashida Machinery Co., Ltd is a professional plastic extrusion production line manufacture since 2003. The factory covers 34000 square meter. Our products such as HDPE pressure pipe for gas or water transmission, structural wall pipe extrusion line, corrugated pipe extrusion line . The products have been exported to Middle East, Russia, Africa. Turkey, Korea.
 Our factory locates in Cheng yang Industrial area, Qingdao ,Shandong Province.  we have been approved and got certificate ISO90001:2008 by SGS. All the customers are welcome to visit the factory.



If you need more information about this machine.  just call us 0086-532-80999083, we can give you consulting service for this machine. or email to us
