XH-433-20 TWIN SCREW EXTRUSION LINE |
Applicable materials | PP, PE, PS, PET, TPE, etc. |
Screw diameters | 21.7mm |
Screw speed | 0 - 300rpm |
Screw L/D ratio | 1:40 |
Output | 1 - 10kg/h (decide by formula) |
Cooling device | air/water cooling |
Cutting device | Granulator |
Power supply | 380V/50Hz/3 phases or Customerized |
Control mode | SIEMENS Touching Screen PLC control |
Main Features1) Adopting international brand variable speed control motor to precisely control the screw rotating speed;
2) The 3D processed geometry screw elements maintain uniform gaps and achieve very good self-clean and precise plasticizing effect;
3) Using parallel two-axis high speed high torque gearbox to make the extruder applicable for more than 95% materials' compounding and extrusion technologies;
4) Emergency stops and devices to protect safety of the operator;
5) Optional side feeder for special materials, e.g. glass fiber;
6) Optional forced feeder to increase stability of feeding;
7) Optional liquid feeding equipment;
8) Optional gravimetric feeder
Detail images ![Small Plastic Extruder, Mini Twin Extruder, Small Movable Lab Conical Twin Screw Extruder](https://pub.357th.com/www.676102.com/uploads/image/2021/da/70/bf/d2/aa59933dfbd8516f491abb59c8c5adbb.jpg)
![Small Plastic Extruder, Mini Twin Extruder, Small Movable Lab Conical Twin Screw Extruder](https://pub.357th.com/www.676102.com/uploads/image/2021/a2/38/7f/3b/3d0448d42ab8e4925c9cada56cf8ecff.jpg)

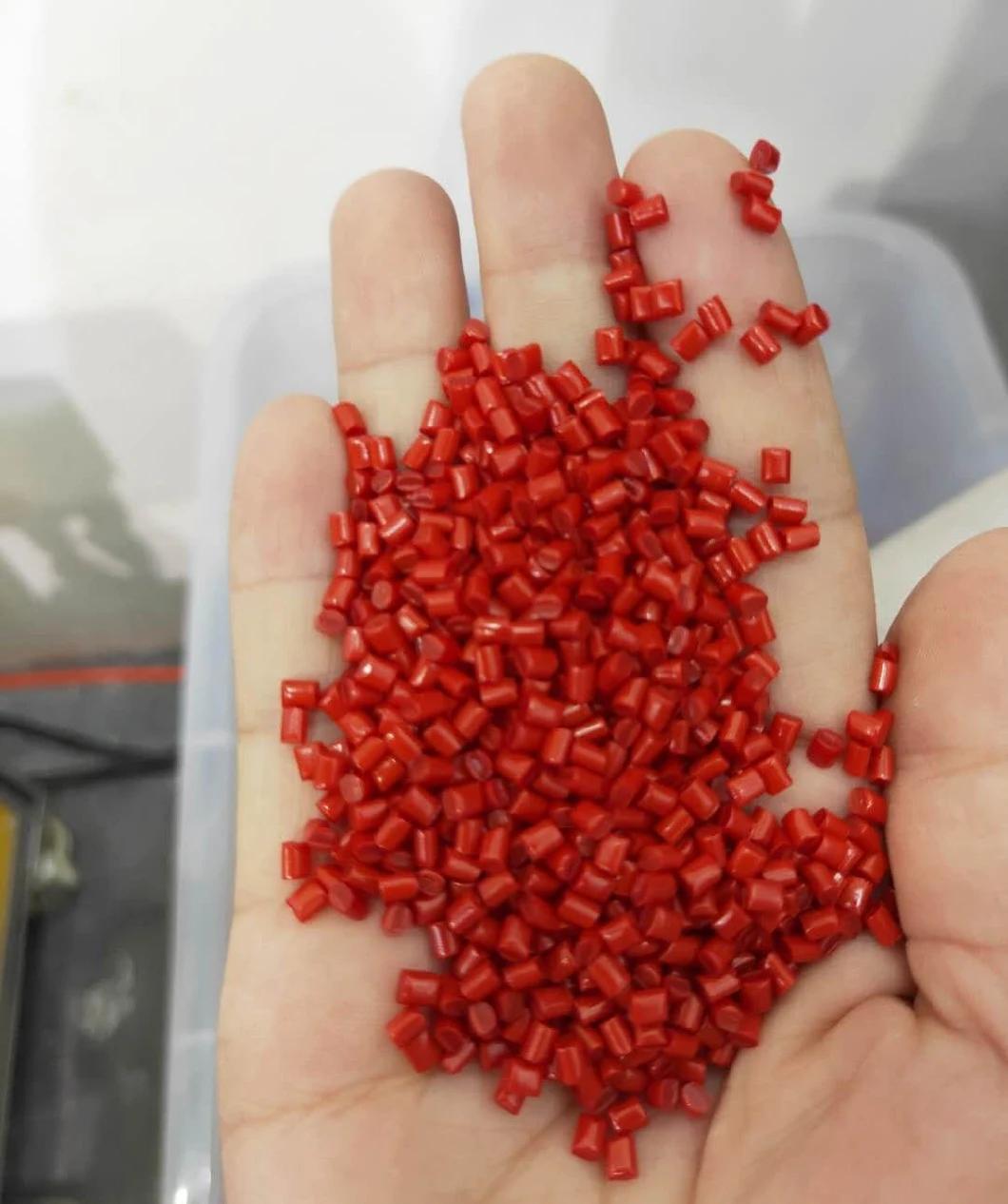

Testing sample ![Small Plastic Extruder, Mini Twin Extruder, Small Movable Lab Conical Twin Screw Extruder](https://pub.357th.com/www.676102.com/uploads/image/2021/82/b9/f3/b9/3458863ef653dc7bec72e5813264345d.jpg)
![Small Plastic Extruder, Mini Twin Extruder, Small Movable Lab Conical Twin Screw Extruder](https://pub.357th.com/www.676102.com/uploads/image/2021/6d/4a/37/d7/0f642e7fe576e1c59b4e8e780c7cc1f1.jpg)
