6yl-120d 120kg/H Spiral Type Oil Extraction Machine Price
Hangzhou Panache Import and Export Co., Ltd. / 2022-07-05
- After-sales Service:Whole Life
- Warranty:12 Months
- Type:Spiral Oil Press
- Application:All, Beans, Wheat, Starch, Rice flour
- Voltage:220V
- Appearance:Horizontal
=== Base Info ===
- Model NO.:6YL-120D
- Press Materials:Peanut
- Press Series:Second
- Condition:New
- Customized:Customized
- Name:Oil Extraction Machine
- Function:Oil Processing Machinery 100-150kg,H
- Usage:Hot Cold Oil Press
- Products:6yl-120d 120kg,H Spiral Type Oil Extraction machine
- Customiz 1:Oil Making Machine Customzied
- Transport Package:Plywood Case
- Specification:1000mm*538mm*1050mm
- Trademark:Chenji or OEM ODM
- Origin:Jinan or Others
- Production Capacity:6000set Per Month
=== Description ===
Basic Info.
Model NO.
6YL-120D
Press Materials
Peanut
Press Series
Second
Condition
New
Customized
Customized
Name
Oil Extraction Machine
Function
Oil Processing Machinery 100-150kg/H
Usage
Hot Cold Oil Press
Products
6yl-120d 120kg/H Spiral Type Oil Extraction machine
Customiz 1
Oil Making Machine Customzied
Transport Package
Plywood Case
Specification
1000mm*538mm*1050mm
Trademark
Chenji or OEM ODM
Origin
Jinan or Others
Production Capacity
6000set Per Month
Product Description

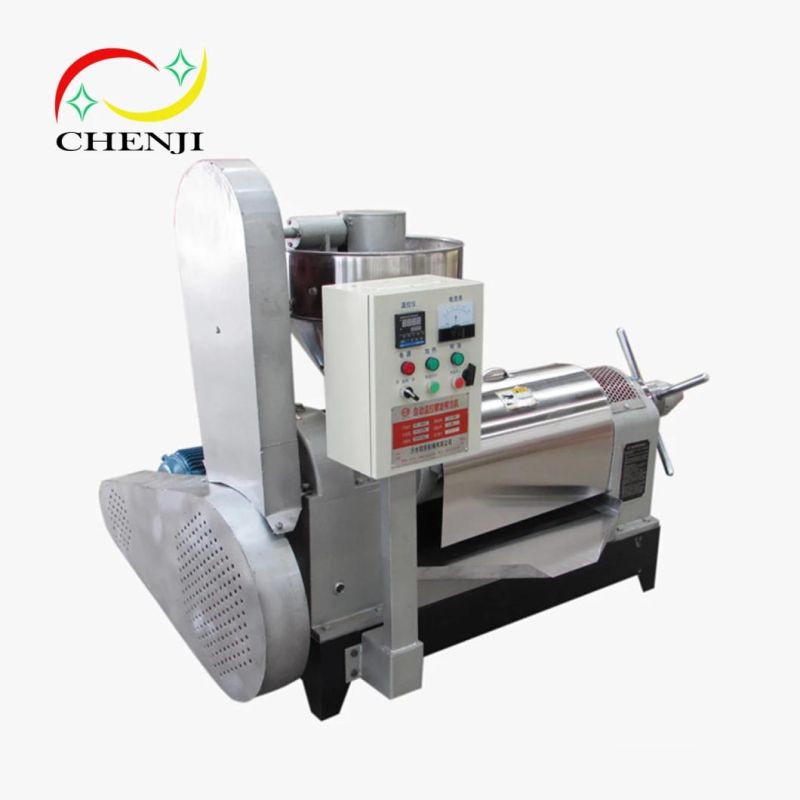

6YL-120D 120kg/H Spiral Type oil extraction machine PriceModel | 6YL-100D |
Screw diameter | Φ100mm |
Screw speed | 38-46r/min |
Motor | 11KW |
Heating power | 3KW |
Capacity | 100-150KG/H |
Weight | 720KG |
Dimension | 1850mm*1200mm*1400mm |
Material | carbon steel |
1, structure
6YL series screw press are mainly consists of feeder, gearbox, spiral axis ,oil pan , squeeze chamber.
2, the working principle
The working principle of the machine is using the pressure generated by the material embryo (oil material) in the pressing space to change the space volume from big to small and the propulsive force of the screw shaft, the resistance of the multi-blade circular arc curve in the pressing circle, and between the embryos. The oil was separated from the embryo by pressure due to the combination of extrusion friction, and is discharged from the squeezing sliver gap and the squeezing ring,thus completing the whole process of oil separation from the embryo. 3,Function
It has multi-purpose, and can be used for both cold pressing and hot pressing of many kinds of oil seeds, such as Peanuts, Rape seeds, Sesame seeds, Soybeans, cottonseeds, Tea seeds, Tung Tree seeds, Sunflower seeds, Palm kernel, Coconut meat, Corn germ, Rice bran, Almonds, Black cumin, Cacao beans, Coffee beans, Hazelnuts, Hemp seed, Jatropha, Jojoba, Linseed, Mustard seeds, Palm nuts, Poppy seeds, Pumpkin seeds, Shea nuts, Walnuts,etc. Suitable for medium-small scale oil factory and private user, as well as for the pre-pressing of extraction oil factory.
