Mining Y24 Handheld Pneumatic Rock Drill Machine for Drilling Vertically

=== Base Info ===

=== Description ===

Basic Info.

Model NO. Y24 Drilling Way Rotary Machine Length 604mm Cylinder Diameter 70mm Piston Stroke 70mm Working Air Pressure 0.4-0.63MPa Shank Size 22* 108+/-1mm Delivery Time Within 2-3days Transport Package Cartons Packing Specification 24kg Trademark better onward Origin China HS Code 8430390000 Production Capacity 2000sets/Month

Product Description

Introduction of Mining Y24 Handheld Pneumatic Rock drill machine

Hand-held Rock Drill is widely use for dry drilling in the medium-hard and hard rock.

Parameter of Mining Y24 Handheld Pneumatic Rock drill machine


Model	Y24 handheld rock drill
Machine weight	24kg
Machine length	604mm
Cylinder diameter	70mm
Piston stroke	70mm
Working air pressure	0.4-0.63Mpa
Compact frequency	≥27Hz
Air consumption	≤50L/S
Air pipe diameter	19mm
Bore diameter	34-42mm
Shank size	22* 108+/-1mm

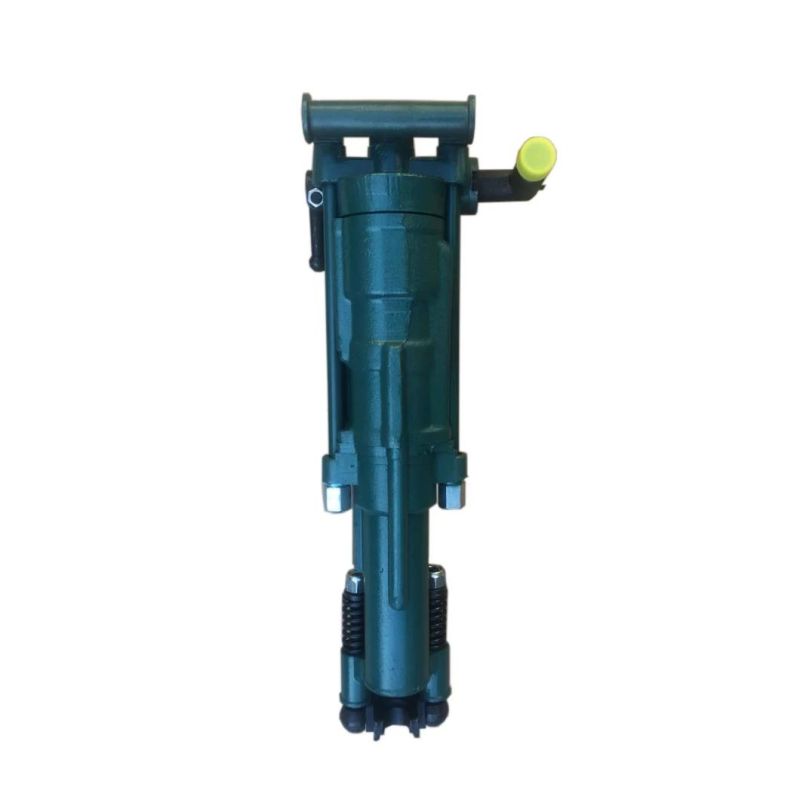

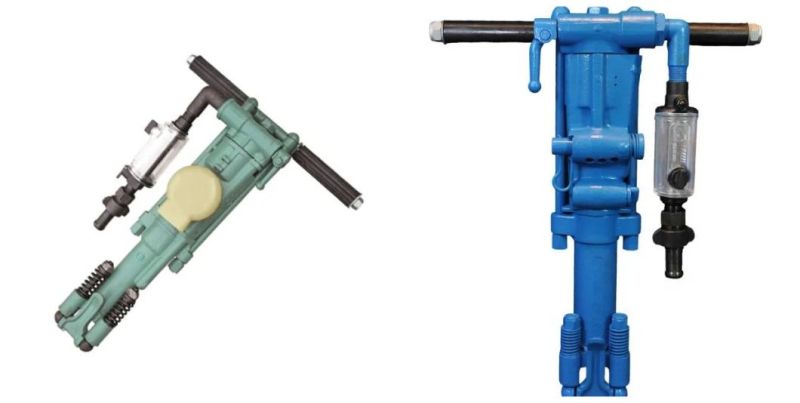

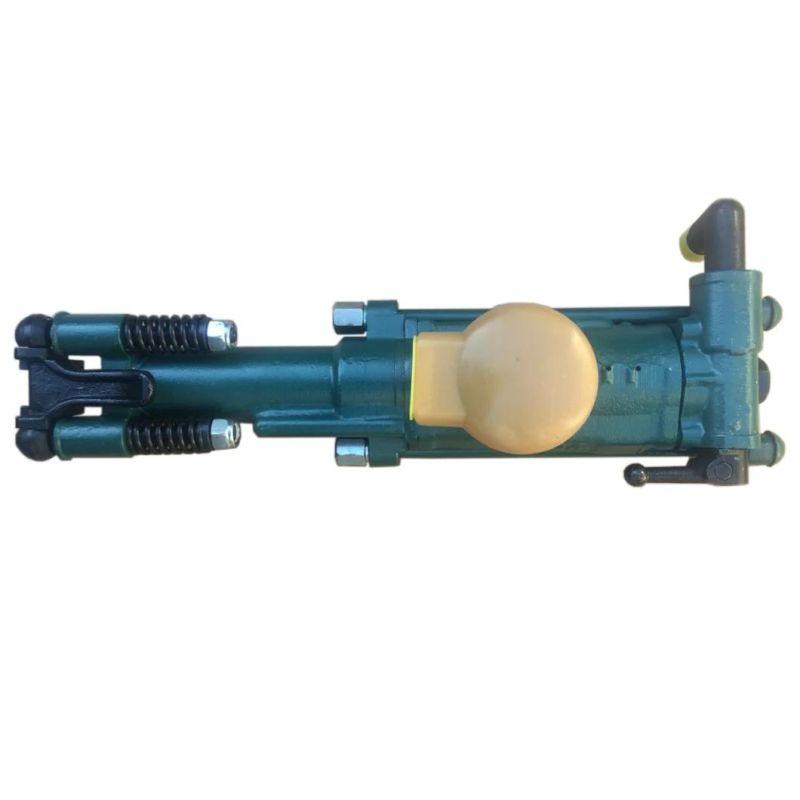

Images of Mining Y24 Handheld Pneumatic Rock drill machine
