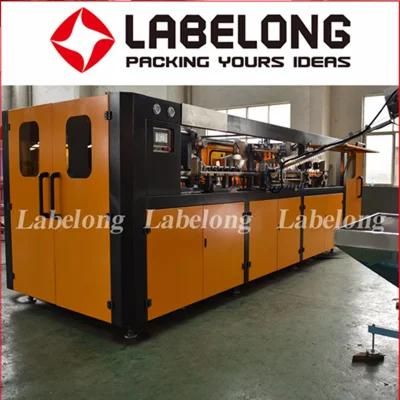

2cavity 2000bph Round Bottle Blow Molding Machine with Factory Price

=== Base Info ===

=== Description ===
                             2cavity 2000BPH Blowing machineFeatures1. Conveying preforms automatically with conveyor. 2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater. 3. High safeties with security automatic-locking apparatus in each mechanical action, which will make the
procedures turn into a state of safety in case of a breakdown in certain procedure. 4. No contamination and low noise with the air cylinder to drive the action instead of the oil pump. 5. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine. 6. Strong clamping force with high pressure and double crank links to lock the mold. 7. Two ways of operating: Automatic and manual. 8. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine
easier to understand. 9. Contamination is avoided for the bottle body. 10. Low rejection rate: Less than 0.2 percent. Comparative Advantages1. Use screw of servo driver moving system.2. Automatic feeding heating and blowing.3. Patented  preform feeding system for easy and safe.4. Heating system for each lamp adjustment and constant voltage control system.5. Touch screen human-machine interface for easy operation.6. Modular component design for easy maintainese7. Compact design for effective usage of floor space.8. Intelligent flow control with high pressure valve. ParameterNameSpecificationData



Clamping systemNumber of cavity2pcsClamping unit4500kgMold stroke60mmStretch stroke180mmBottom stroke30mmCavity pitch76.2mmHeating pitch76.2mmNumber of holder114pcs


ContainerMax.container volume0.6LMax. neck diameter38mmMax.prefrom height100mmMax.container diameter65mmMax.container height320mmTheoretical output2500BPHElectrical SystemHeating oven8*7Box*channelNumber of lamp56Heating power67.2Installed power75Voltage220v/380V/3 phaseAir systemOperating pressure1.6kg/cm2Blowing pressure3.5MpaHigh pressure air consuming5600L/MINPower38KWChiller systemTemperature10-15°CPressure0.4MpaFlow rate80L/minHeating power8*7HPMachineMachine dimension4.8*2.25*1.8mMachine weight5500kg                                     Components ListComponentsBrand FromManufacture fromPLC controllerSIEMENS,GERMANGERMANTouch screenSIEMENS,GERMANCHINACylinderAirtac,TAIWANCHINAMagnet valveTPC, KOREACHINAPhotoelectric switchOMRON, JAPANCHINAContactorSCHNEIDER, FRANCECHINASensorOMRON, JAPANCHINASwitch powerMEANWELL, TAIWANCHINAFrequency converterDELTA, TAIWANCHINAMain Servo motorMITSUBISHI 1.5KW,JAPANCHINAFeeding Servo MotorMITSUBISHI 0.75KW,JAPANCHINAClampingDYDRULIC CLAMPINGCHINASealPIPE UNFIXEDCHIINA
Please feel free to Contact US for more machine infors
