90mm-280mm HDPE Water Supply Pipe Extrusion Machine with CE

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJSZ-65 Customized Customized Condition New After-sales Service Oversea Installation and Debugging Motor Bette Contactor Siemens Converter ABB Temperature Controller Delta Transport Package Wooden Packing Specification Customized Trademark Trusty Origin Qingdao HS Code 84772090

Product Description

1.Production Introduction

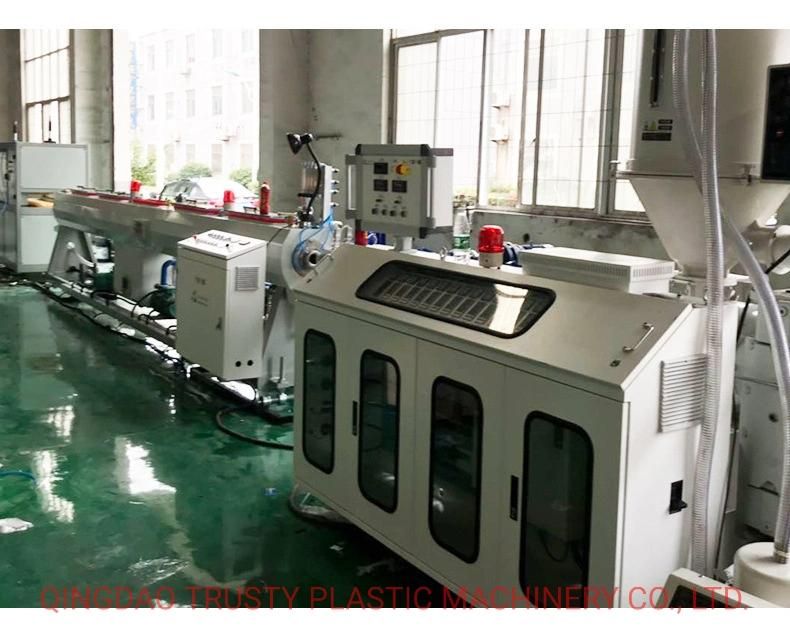

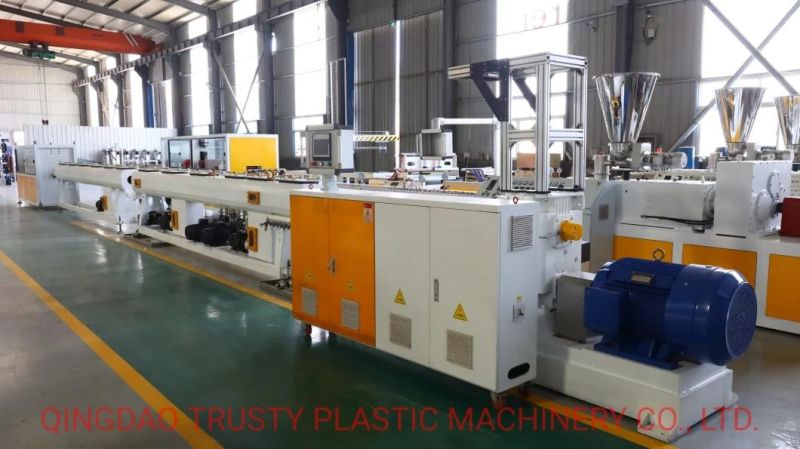

PE pipe production line adopts high efficiency extruder. The screw adopts structure with barrier and mixing head.And the barrel adopts new type slotting barrel, good plasticizing and mixing efficiency.It has large extrusion quantity and it's very stable.






2.Machine List

Name	Quantity(set)
Automatic drying feeder	1

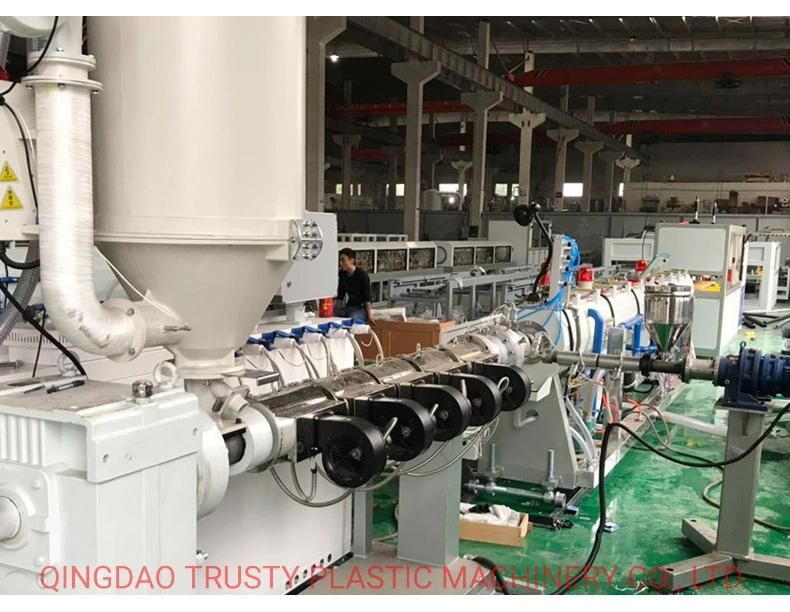

Single screw  extruder	1
Marker line extruder	1

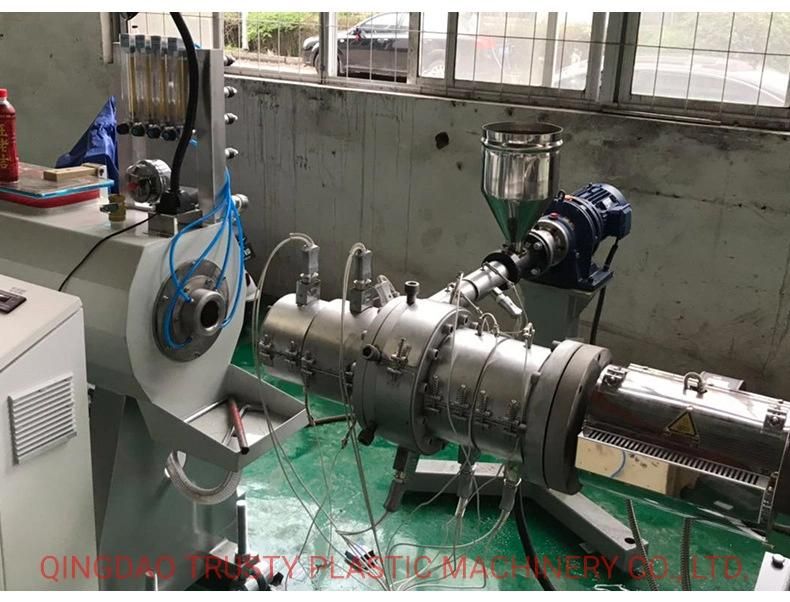

Extruding mould	1
Shaper	1

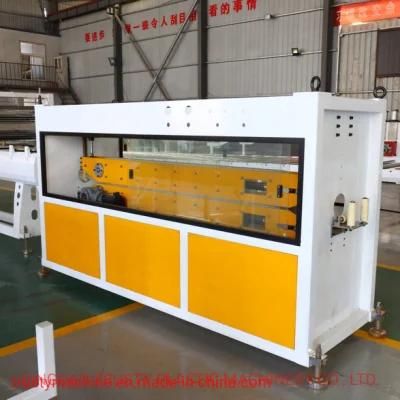

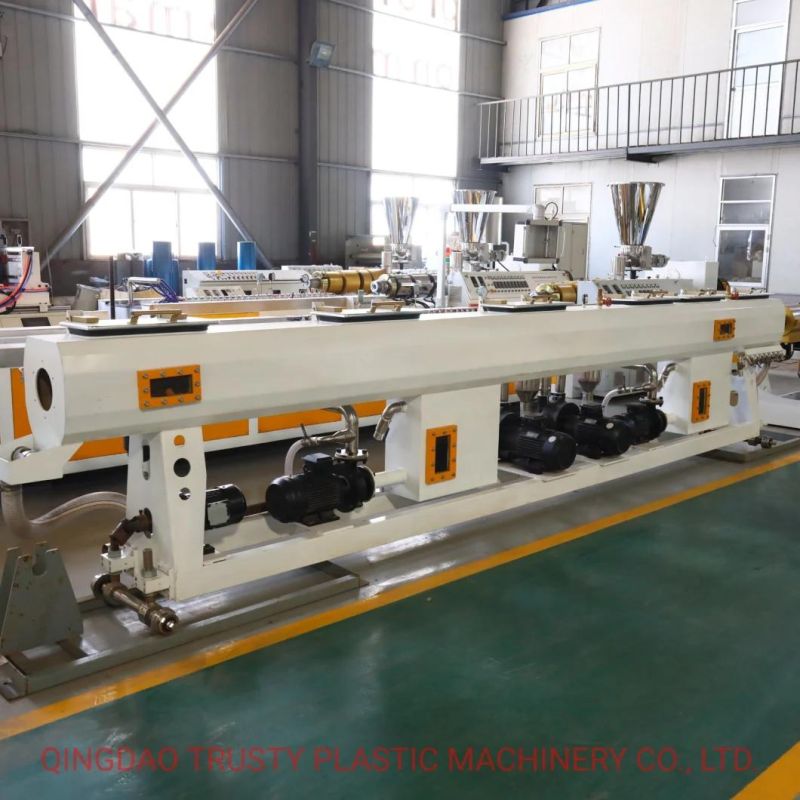

Vacuum tank	1
Spray box	1
Haul off with caterpillar	1
Computer printer	1
Chipless cutter	1
Roll over table	1

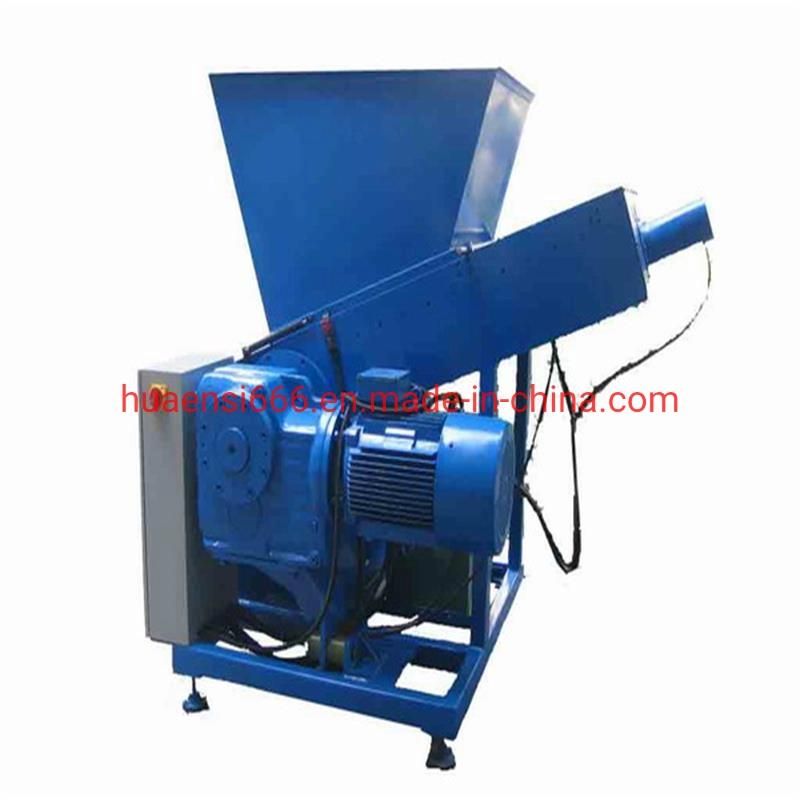

Crusher	1

3.Technical Parameter

Model	SJ-65
Total installation power(kw)	90
Transformer (kw)	100
Actual electricity consumption(kw)	60
Capacity (kgh)	120-180
Line speed (mmin)	5-10
Pipe Diameter(mm)	Customized
Motor Power(kw)	37

4.Company Profile
 Qingdao Trusty Plastic Machinery Company is located in Qingdao shandong peninsula, a beautiful coastal city, where railway, sea and aviation are very convenient.It is one of the coastal cities with rapid economic development.Our company manages each kind of plastic machinery, has the rich mature technical experience.

5.After sales service

(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
