3/5/7 Layer Stretch Film Making Machine Width 1500mm Automatic Plastic Film Extruder Line

=== Base Info ===

=== Description ===
Model No.PYM-65/90/65*1850Screw Diameter65/90/65mmScrew L/D30:1Screw Speed50-150rpmLayer StructureABC/ACBCAFilm materialPEFilm Width1500mm/3*500mmFilm Thickness0.01-0.05mmElectric power supplyCustomized, Standard is 380V/50HZ/3PTotal Power130KWCapacity180-300Kg/hTotal weight13.5TDimension13.5M*3.5M*3.5MProduct Advantages

• Easy operating, long life, energy saving
• Stable and reasonable extrusion
• High quality T-die for excellent film evenness and stability
• Enhanced cooling system
  (adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller)
• Advanced oscillation (swing) system
• Highest winding speed (up to 200m/min) among similar stretch film machines
• High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
• Optional full automatic thickness gauge

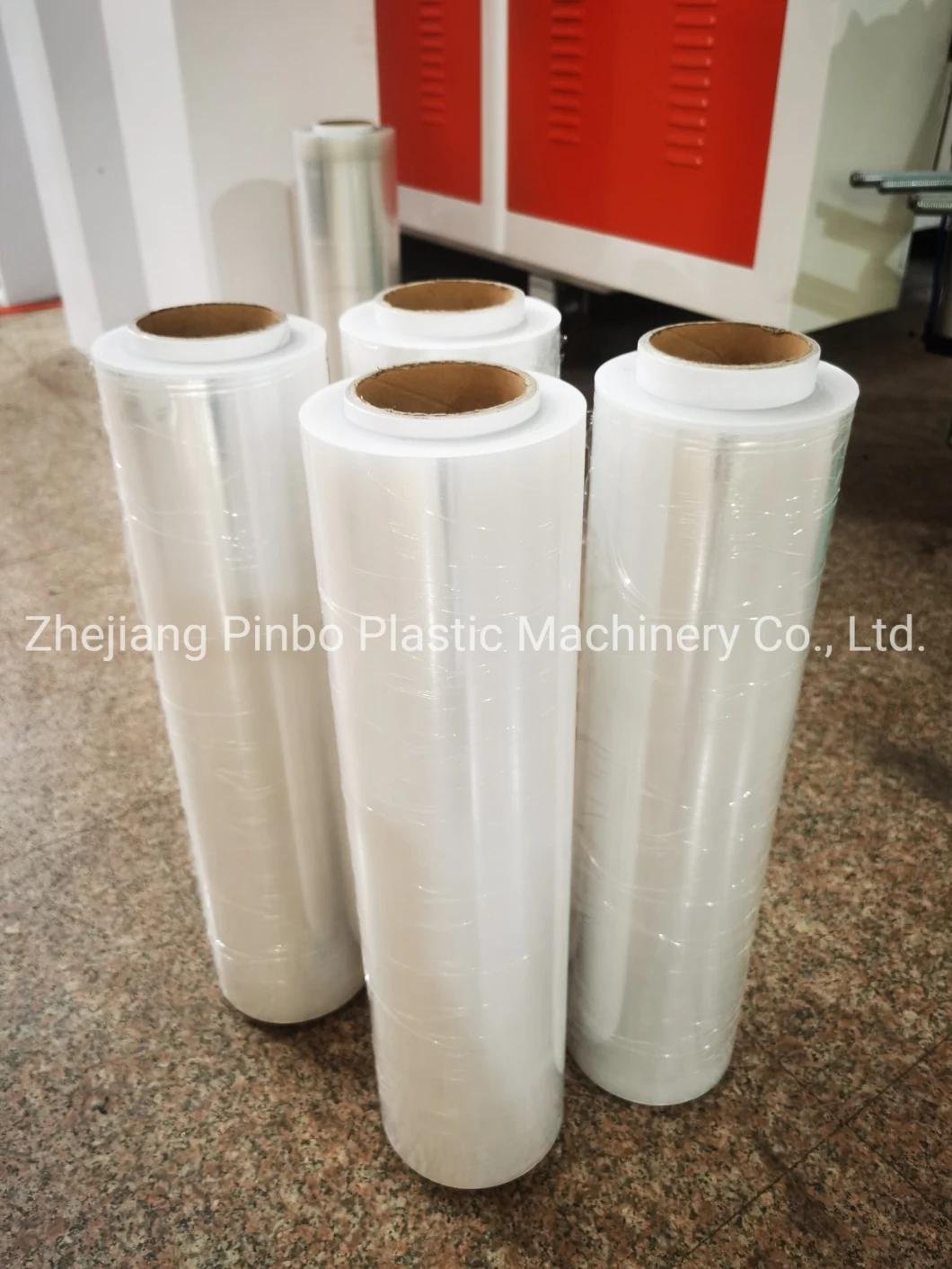

• Excellent stretch film rolls quality for both hand use rolls and stretch use rolls

Machine details:




Option: (automatic roll discharge & auto paper core loading)
