PVC Sheet Board Extrusion Line for Sandwich Panel / PVC Sheet Extruder Machinery / ...

=== Base Info ===

=== Description ===

Item

Description

Unit

ZJF-700

1

 Feeding Capacity

Kg/h

Max.1000

2

Container Volume

Kg

150

3

Spring Diameter

mm

φ59

4

Feeding Tube and Spring Length

mm

3-5

5

Material Trunk Volume

Kg

200

6

Electric Power

3-380V  50Hz

7

Main Motor Power

Kw

2.75

8

Dimensions

mm

950×950×960

Φ820×1550

9

Total Weight

Kg

250

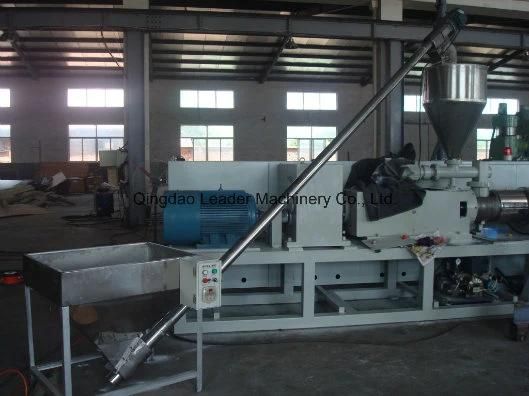

2.  Double-Screw Extruder type SJSZ65/132     1 set

Item

Description

Unit

SJSZ65/132

1

Output Capacity

Kg/h

Max.250

2

Number of the Screws

2

3

Diameter of the Screw

mm

 65/132

4

Rotating Direction of the Screws

Forth & Reverse

5

Rotation Speed of the Screw

r/min

1-34.7

6

Available Working Length of the Screws

mm

1430

7

Main Motor Power

Kw

37

8

Speed Adjusting Mode

frequency conversion adjustable, Invertor from Innovance

9

Gear reducer

Rigid-gear surface low noise design

10

Heating Capacity of the Screw barrel

Kw

24 ( casting-aluminium electric-thermal elements )

11

Material of the Screws  and the barrel

38CrMoA1

12

Nitriding Depth of the Screws and the barrel

mm

0.5~0.7

13

Nitriding rigidity of the Screws and the barrel

HRC

50~55

14

Cooling Mode of the Screw barrel

by air cooling

16

Indicators

temperature indication by gauge

17

Temperature controllor

Brand: Omron, Japan

18

Element of Electric System ( contactors, buttons, switches )

Brand:  Schneider

19

Power of the Vacuum Pump

Kw

1.5

20

Max. Vacuum Degree

MPa

-0.093

21

Cooling Water Consumption

L/min

1~3

22

Plastic Material Feeding Mode

By Fixed-quantity Screw

Feeding Device

23

Rotation Speed of the Feeding Screw

R/min

3.5~47 ( frequency conversion )

24

Height of the Screw Axes

mm

1000

25

Figure Dimensions ( L×W×H )

mm

4235×1520×2450

26

Weight

Kg

4000

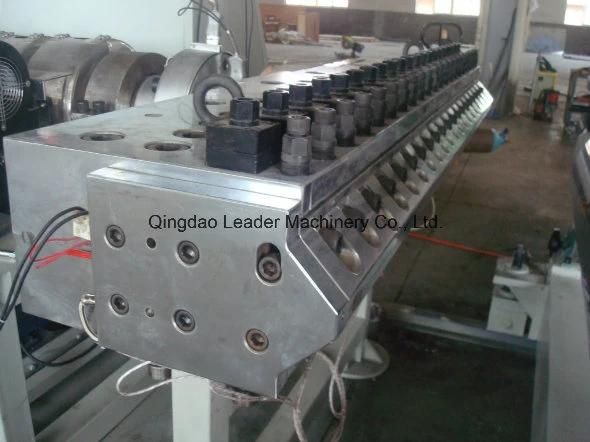

3. T -die head, 1 set

Item

Description

Unit

1350mm

1

Die width

mm

1350

2

Adjusted thickness

mm

0.2-1.2mm

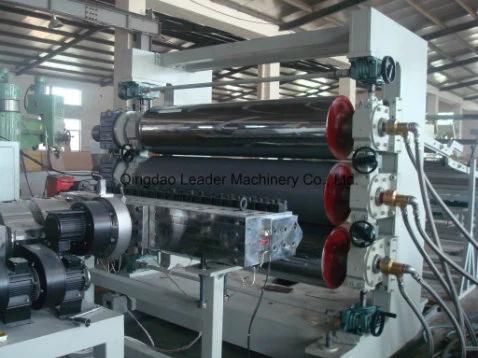

4.  Three roller calendar                           1 set

Discription

Unit

1

Roller motor power

KW

3*3 sets

2

Speed adjusting inverter

INNOVANCE

2

Roller width

mm

1400

3

Roller

mm

350

5

Chromed thickness

mm

0,05-0,06

6

Roller wall thickness

mm

about 35

7

Roller adjusting

Electrical, manual

8

Thermocontrol

Mould thermocontroller, 1 set

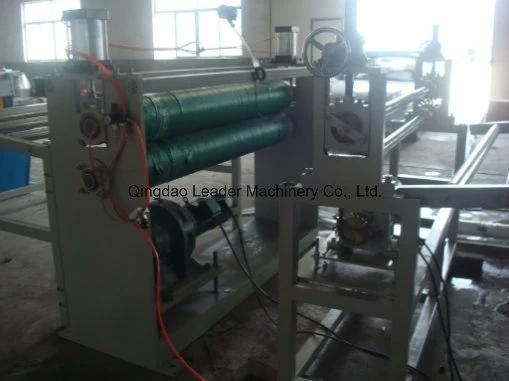

5. Cooling Frame and Edge Cutting Unit           1 set

Item

Description

Unit

1

Diameter of Roller

mm

63mm

2.

Length of cooling frame

mm

4000

3

Material of cooling roller

Stainless Steel

4

Method of edge cutting

knife

6. Haul off Machine     1 set

Item

Description

Unit

1

Length of rubber rolls

mm

1350

2

Clamping method

Pneumatic

3

Driving motor

kw

AC, 4kw, ABB inverter

4

Hauling speed

m/min

0.5-4.5

5

Clamping Force

Pneumatic

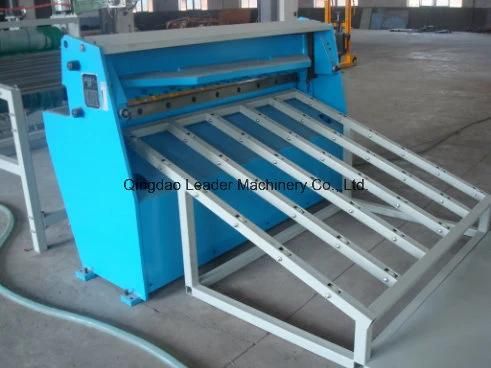

7. Guillotine- knife cutting machine and Stacker     1 set

Item

Description

Data

1

Main Motor Power

3 kw

3

Available Cutting Width

1350 mm

4

Available Cutting Thickness

0.3-2mm

5

Working Height

800 mm

6

Figure Dimension

1860*2210*1180mm
