High Speed Automatic Fiber/CO2/UV/Ep Type Laser Marking Machine

• Laser Visibility：Invisible
• Applicable Material：Nonmetal
• Cooling System：Air Cooling
• Technical Class：Pulse Laser
• Laser Wavelength：Fiber Laser
• Laser Classification：Semiconductor Laser

=== Base Info ===

• Model NO.：OTF-03
• Type：YAG Laser Marking Machine
• Marking Method：Scanning Marking
• Model No.：Dp-F10-Otf
• Certification：SGS, Ce
• Control：Automatic
• Condition：New
• Power：10watt, 20watt, 30watt
• Export Markets：Global
• Engraving Machine Type：Laser Engraving Machine
• Laser Type：Fiber Laser
• Current：AC
• Usage：Metel, Plastic
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：DP
• Origin：Shenzhen, China
• HS Code：84561000
• Production Capacity：3000 Sets,Year

=== Description ===
High speed automatic FIBER/CO2/UV/EP Type laser marking machine
Product Description

ON THE FLY MARKING

Laser marking on the fly offers several advantages to manufacturers. Beside the simple reduction in costs and labor using traditional printing methods, on the fly lasing allows for significant improvements in ROI over other forms of laser marking. With no part loading, manually or robotically, parts are rapidly fed across the laser field through to the next part of the manufacturing process.
Vision systems can even allow parts to arrive in the laser field in different orientations. The optics identify the variation to the laser which orients for each part's alignment. This can be done at very high speeds, possibly meaning less time spent getting your parts to face a certain direction.
Dapeng Lasers' engineers have years of experience developing part delivery systems that ensure a combination of high speed and precision lasing.

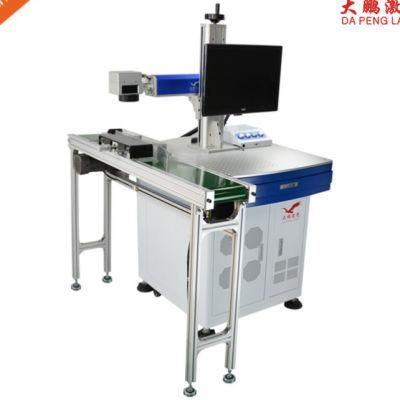

DP-OTF On The Fly Marking systems
DP-OTF laser marking machine (Marking On The Fly), adopts imported top quality or China top brand fiber laser source , high-speed galvanometer scanning system, Japan electro-optical sensors, and professional On The Fly marking control software, can increase production speed, reduce bad pieces, improve line safety, and eliminate down time.

Specifications:
ModelDP-F10-OTFDP-F20-OTFDP-F30-OTFLaser Power10W20W30WLaser wavelength1064nm1064nm1064nmHighest feeding speed300m/min300m/min300m/minMarkingCan mark on stationary or moving partsSoftwareautomatic encoding, variable text, date, serial number, lot number, bar code and two-dimensional code printing, and can be modified according to customers ' different needs of production line flexibly.Adjustable lift range0~1000mm or custom designPower consumption≤600W≤800W≤2KWPower supply requirement220v/50HZ220v/50HZ220v/50HZ
Applications:
We offer On The Fly Laser Marking Machine with following applications:
l         Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
l         Hall marking on Gold
l         Automotive & Engineering Industries
l         Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other  instruments
l         Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making
