3X8meter 5 Axis CNC Plasma Bevel Cutting Machine with Hypertherm Hpr260xd Cutting System

• Type：Plasma
• Control Mode：CNC
• Cutting Mode：Plasma
• Torch Type：Fire-Suction
• Cutting Nozzle Shape：Quincuncial
• Cutting Width：3500mm

=== Base Info ===

• Model NO.：CNCBSG4000
• Cutting Thickness：1-50mm
• Cutting Speed：0-5000mm,Min
• Voltage：AC380V
• Gas：Oxygen
• Transport Package：Wooden Case
• Specification：CNCBSG4000
• Trademark：TAYOR
• Origin：China
• HS Code：8456901000
• Production Capacity：500 Sets , Year

=== Description ===

Basic Info.

Model NO. CNCBSG4000 Cutting Thickness 1-50mm Cutting Speed 0-5000mm/Min Voltage AC380V Gas Oxygen Transport Package Wooden Case Specification CNCBSG4000 Trademark TAYOR Origin China HS Code 8456901000 Production Capacity 500 Sets / Year

Product Description

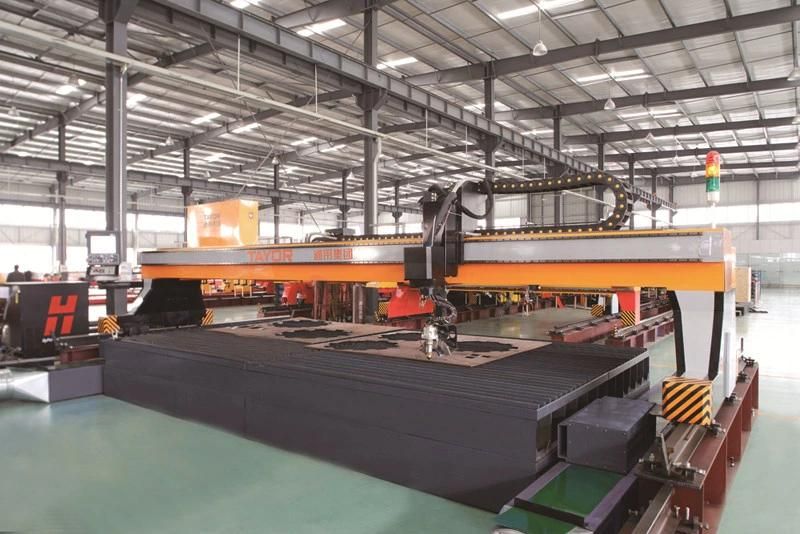

3x8meter 5 axis CNC Plasma Bevel Cutting Machine with Hypertherm HPR260XD Cutting system

Precision CNC Oxy Fuel and plasma Cutting Machines
Working width from 10' to 40'
Thickness of gas cutting: Carbon steel 5mm-300mm
Thickness of plasma cutting: Stainless steel 1mm-70mm
Steel plate, stainless steel, aluminum and high alloyed steels are available
Framework structure, moved by high precision gear and rack, which is stable and accurate
Bilateral drive of the cross beam allows high dynamics of motion, which is especially suitable for plasma cutting
CNC software
Fast, accurate, flexible
Amazingly smooth cutting surfaces
Cuts with almost no slag-adherence
Beveling
Cutting torch number can be matched as per customer request.
Auto height controller
Automated Ignition




Mechanical components	Description
Machine Width	3500mm
Rail Length	12000mm
CNC Plasma bevel  cutting torch	1set (Hypertherm)
CNC oxy-fuel cutting torch	1set (TAYOR)
Auto-ignition	1set (TAYOR)
Arc voltage plasma height controller	1set (Hypertherm sensor THC)
Plasma torch anti-collision device	1set (TAYOR)
Drive Model	Dual-side
Cable/hose Supply Model	Pedrail
Numerical control system model	Hypertherm EDGE pro
PLC	OMRON
Electric components	OMRON
Plasma power source model	Hypertherm HPR400XD
Programming and nestling software	FASTCAM (BEVEL)
Horizontal Servo Driving motor	Panasonic AC servo motor(0.75Kw)
Longitudinal Servo driving motor	Panasonic AC servo motor(0.75Kw)
Rotation axis	Panasonic(0.4KW)
Deflection	Panasonic(0.1KW)
Gear box	SEW/Neugart
