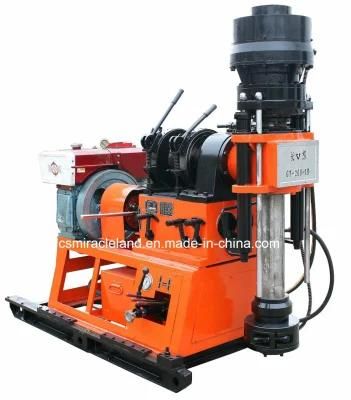

Large Spindle Through Hole Geotechnical Engineering Core Drilling Rig (GY-200-1D)

=== Base Info ===

=== Description ===
1. Drilling CapabilitySpindle Turnable Angle0°~360°
  Wire-line Core Drill RodsBQ245mNQ200mHQ160m2. Rotary TableSpeed(r/min)Forward900   475   388   205   157  68Reverse256   85Max Torque2000N@mFeeding Travel400mmMax Feeding Force29KNMax Lifting Force39KN3. HoistBobbin Diaφ135mmRope Diaφ12.5mmBobbin Capacity30mSingle Rope Hoisting Capacity30KNSingle Rope Max Hoisting Speed(2nd Layer) (m/s)0.27  0.64  0.83  1.58  1.644. Oil PumpModelCBF-F420-ALPLCBF-F420-ALPL Gear PumpDisplacement20mL/rRated Speed2500r/minRated Pressure20MPaMax Pressure25MPa5. Engine Model Power Speed Weight(1) Electro-motorY160L-415KW1460r/min144kg(2) Diesel EngineCHANGCHAI ZS111014.7KW2200r/min180kg6. FrameType: Sliding(with sliding frame base)Rig Travel400mmDistance Away from Hole270mm7. Dimension(L*W*H)1820×980×1650mmRig Weight(without engine)750kg
