3 Colorants 6 Station Foaming Line (HPM20/10 MH7070)

Funik Ultrahard Material Co., Ltd. / 2022-07-04

3 Colorants 6 Station Foaming Line (HPM20/10 MH7070)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HPM20/10 MH7070 Model No. Hpm20/10 Mh7070 Type; Polyurethane Foam Machine Raw Material; Polyol and Isocyanate Principle; High Pressure Impact Automation; Automatic Computerized; Computerized Certification; Ce, ISO9001:2008 Voltage 380V Other Power Customizable Power 40kw-100kw Warranty 12 Months Transport Package Wood Trademark zsim Origin Zhangjiagang HS Code 8477800000

Product Description

   HPM series high-pressure foaming machine is zhangjiagang strength and industrious Machinery Co. Ltd following the international latest high technology and according to word wide the PU industry that independent innovation high technology products .The main parts are import from foreign country, equipment technical and safely performance are reached the word wide advanced capacity. The equipment is widely used automobile industry, insulation industry, air conditioning industry, electric appliance industry and furniture industry and so on. Also, expanding the application field .
   HPM high -pressure foaming principle
   Both Polyol and Isocyanate are stored separately in two tank, and used two rotary axial metering pumps to take material to mixing head, two components injection to a small mixing room at high pressure and flow rate when mixing head started in the hydraulic control, and collide with each other instantly, pass moving transformation that reached to mixing and flow to mold control, after pouring output time that mixing head piston rod forward, all material are pushed to mixing chamber and mixing chamber is cleaned by piston rod, don't left any material. Component passed beside of piston rod return to material tank. If it don't inject in a long time , low-pressure recalculation switchover unit but two-control component into low recalculation.
  Because of equipment' exact calculation, has a small loss and needn't clean and it will be good at environment-protect and reduce the material costs. In the all areas that is to be more and more widely used.
It is consists of the following main unit:
--- HPM20/10 High Pressure Foaming Machine,
--- MH7070 Hydraulic drived mold carrier system,
--- Color component automatic metering and mixing with the main component,
--- Multi-mixing heads pouring stations.

The color material is metered and delivered direct into the mixing head and impingement mixing with poly and isocyanate. Different color can be delivered into different mixing head, the PLC control system ensures the automatic switch over for different color/different mixing head. So nocost for cleaning the color tank and the hose, and you can obtain higher production efficiency.

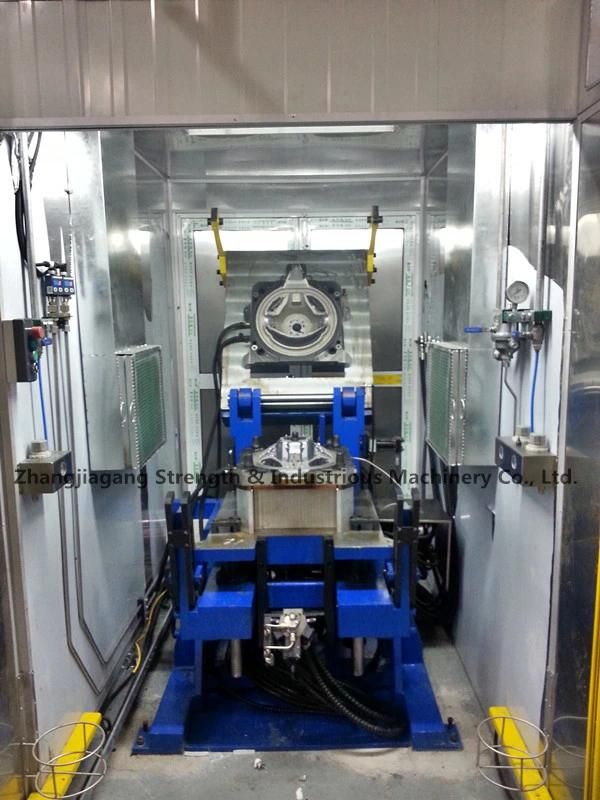

3 Colorants 6 Station Foaming Line (HPM20/10 MH7070)
