Floor Heating Pert Pipe Making Machine / Extruder Machine / Production Machine

Nanjing Lite Hydraulic Technology Co., Ltd. / 2022-07-04

Floor Heating Pert Pipe Making Machine / Extruder Machine / Production Machine

=== Base Info ===

=== Description ===
 Line ModelScrew DimaeterL/DProduction SpeedNominal PowerKDRT-6565mm33:115m/min63KWKDRT-6060mm36:135m/min102KWKDRT-7575mm36:160m/min163KW
Floor Heating Pert Pipe Making Machine / Extruder Machine / Production MachineFloor Heating Pert Pipe Making Machine / Extruder Machine / Production Machine
Floor Heating Pert Pipe Making Machine / Extruder Machine / Production Machine
1)High efficient five section type screw and barrel, to ensure fast plasticizing & dispersion effcct.

2)Gravimetric material feeding system is to control material feeding according to pipe parameter & line production speed, to get high qualified pipe with constant weight per meter. It's also have benefits of shortening start-up time, saving raw material and simplifying operation.

3)Spiral Pressure storage die head effectively overcomes the instantaneous fluctuation of extrusion pressure, realizing high speed pipe extrusion with stable pressure.

4)vacuum and calibrating system is further optimized based on our previous high speed pipe extrusion line technology; with better structure calibrating and cooling become more effective.
Automatic vacuum control system can adjust vacuum degree as per setting parameters on the main PLC.

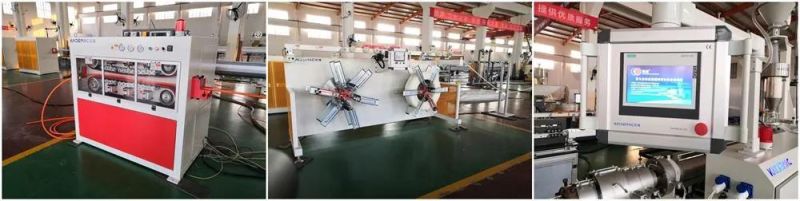

5) for 50m/min speed model, equipped with fully automatic pipe coiler, with pipe accumulator. The accumulating will act while changing new coil, to storage pipe to prevent pipe gathered.  And it will also work as an tension control, to automatically adjust the coiling speed.
The coiler will cut the pipe and change new coil automatically.
As an option, the auto strapping and unloading function can be added.

6) SIEMENS programable PLC control system with big color touch creen. Having multi-point close-loop control and sysnc system.  Remote control system is also applied for after sales technology support.
Floor Heating Pert Pipe Making Machine / Extruder Machine / Production Machine


Floor Heating Pert Pipe Making Machine / Extruder Machine / Production Machine
Floor Heating Pert Pipe Making Machine / Extruder Machine / Production Machine
