Basic Info.

Model NO. GS5000-LS Type Track Engine Power 2*294 kw Max Torque 140000 N·m Max Mud Pump Flow Extra Mud Pump Rig Weight 57500kgs Transport Package Nude Packing Specification 17700*2500*3460 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1. Rig frame: the power system is attached with the rig, compact frame, 2.5m in width, 3.4m in height, meets the demand of transportaion regulation both at home and abroad.
2. Initial design : heavy duty rigequipped with  manipulator,  automatically load/unload   rods,  significantly  save  labor  cost  and  enhance working efficiency.
3. Dual electrical control engine of T3 phase, meets the national exhuast standard for construction machine, one or two engine can be applied flexibly, saving energy and reducing fuel consumption.
4. Main hydraulic system adopts high-performance proportional electrical control open circuit system, no need oil supplement compared to closed circuit system, making it more efficient.
5. Speed of driving head rotation and push&pull is steplessly adjustable.

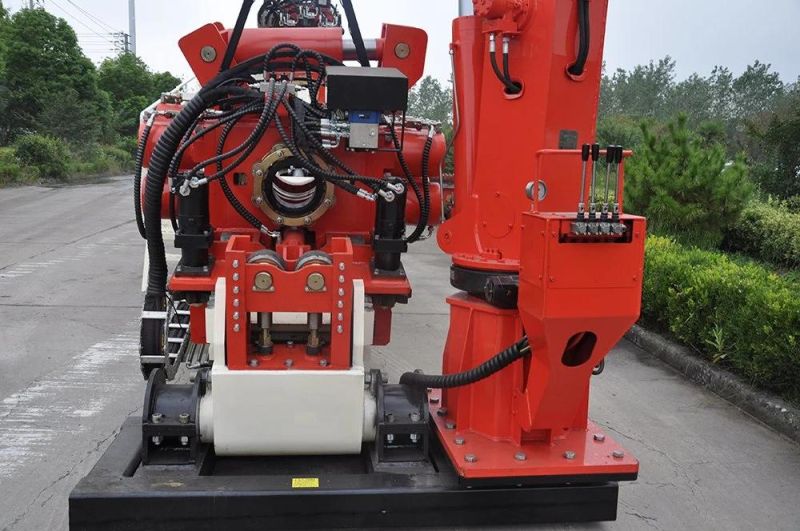

6. Front and back clamping can be separated, and float in whole process. ahead clamp is equipped with rod supporting mechanism, which reduces clamping abrasion effectively.
7. Equipped with φ140×9600mm or φ168×9600mm drill rod, floating spindle in favor of protecting drill pipe thread.
8. Floating girder and front/back cylinder makes entry angle adjustable, easy to load/unload and transport.
9. Crawl walking system is convenient for transfer at site.

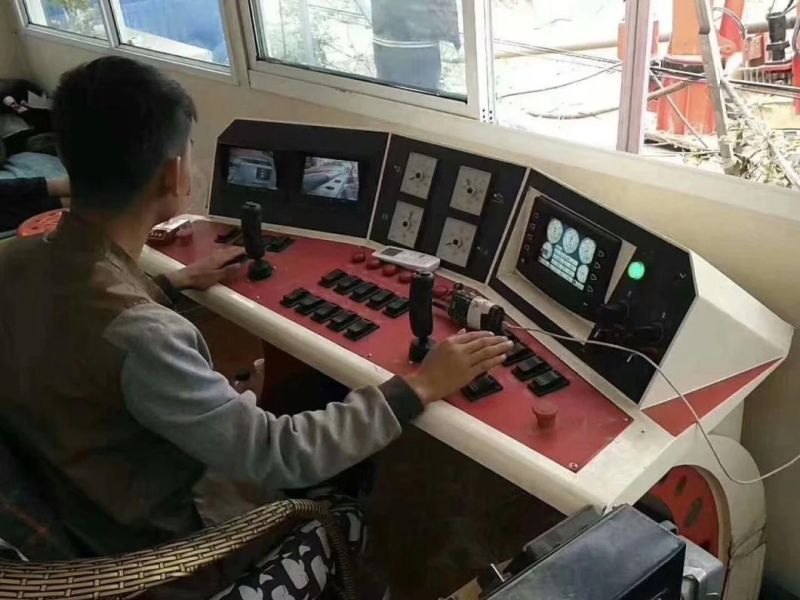

10. Independent operation cabin with necessary and comfortable decoration.
11. Rod holder in the middle  enhances the accuracy of rod loading.
12. Main control valve: simple and reliable structure; large flowing diameter makes it more energy-saving; compact frame makes reasonable system displacement, increasing pull&push speed without effect on rotary torque and pull&push force.
13. Hydraulic system adopts large flow and high pressure design, the self-designed control valve group ensures the fast response and low pressure loss.
14. The electricity-liquid combined control system realizes the self adaption control of machine to the different construction situation, increasing the working efficiency by 20%-30%.
15. The cable of the electrical circuit is simple, stable and reliable.
16. The LCD human-computer interaction system offers real-time inspection and control, making the operation easier and more comfortable.
17. Rational and effective cooling system ensures safety, reliability and efficiency of system, extends motor using life, and avoids motor damage.

[Main Technical Parameters]


Engine Power	2*294 kw	Driving Head Max. Theoretical Torque	140000 N·m
Driving Head Max. Theoretical Push & Pull Force	6000 kn	Max. Clamping Force of Pipe Jaw	2550 kn
Max. Working Pressure Set in System	35 Mpa	Max. Unscrewing Force of Pipe Jaw	370000 N·m
Max. Flow in Hydraulic System	2215 L/min	Rig Dimension(L*W*H)	17700*2500*3460 mm
Drill Pipe Diameter	5",5-1/2",6-5/8"	Rig Weight	57500 kgs
Max. Length of Drill Pipe	9.6 m	Max. Walking Speed	4.5 km/h
Driving HeatMax. Rotation Speed	92 rpm	Permitted Working Temperatue	-30~50°C
Driving Heat Max. Push & Pull Speed	45 m/min	Permitted Enviroment Humidity	>90%
Main Spindle Floating Distance	100 mm	Permitted Working Altitude	Altitude 0-3000m
Mud Pump Channel Diameter	3"	Referential Back-reaming Aperture	Φ2000mm(Soil Depended)
Max. Mud Flowing Volume	2000 L/min	Referential Drilling Distance	2500 m(Soil Depended)
Max. Mud Pressure	12 Mpa	Drill Incidence°	9-16°

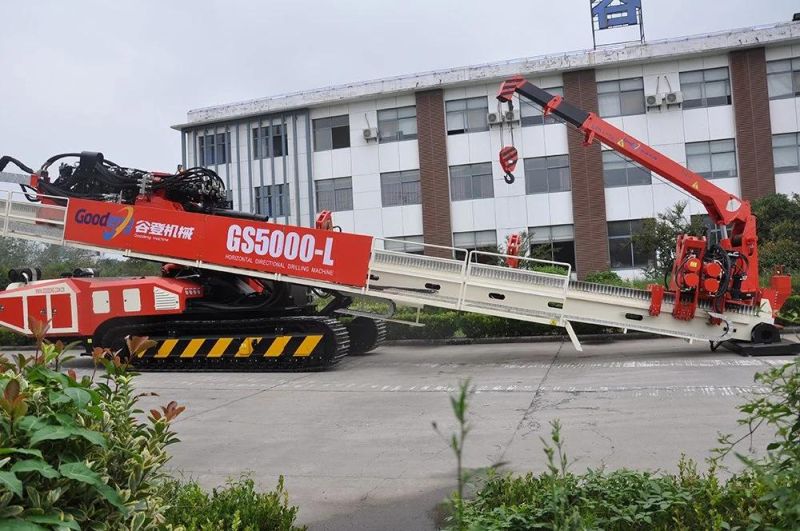

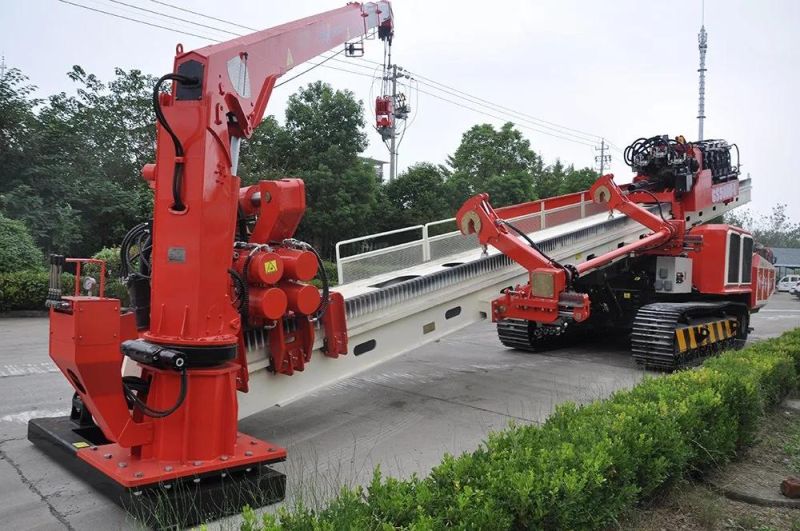

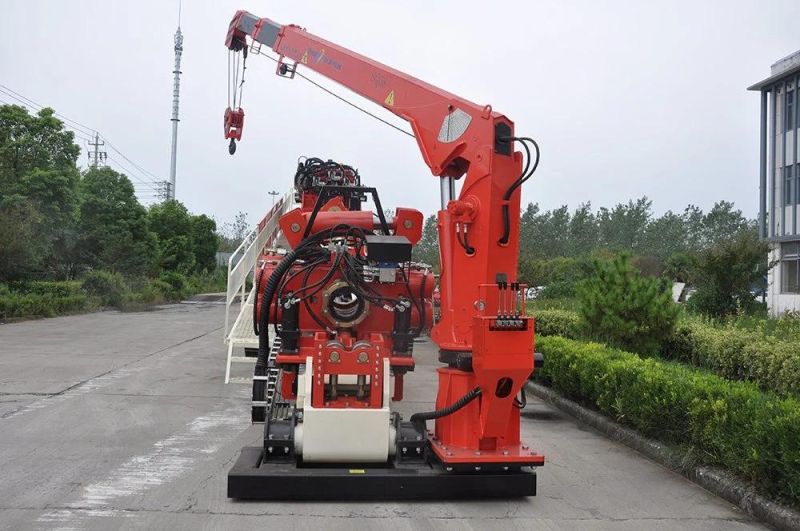

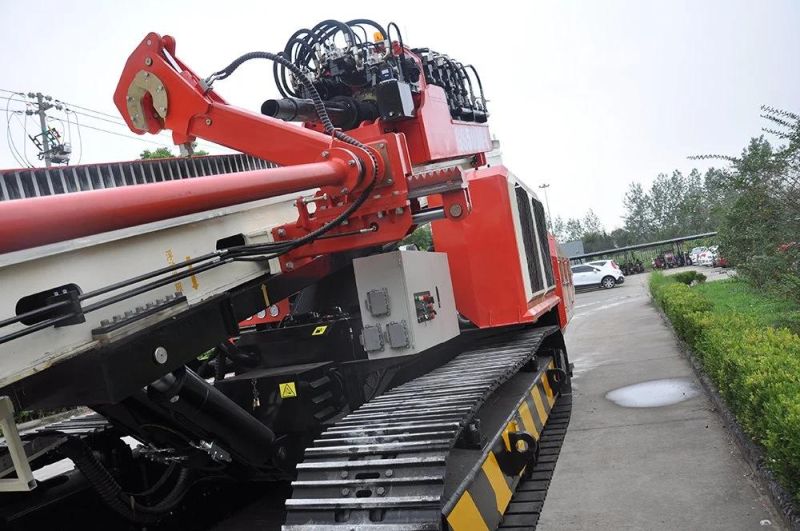

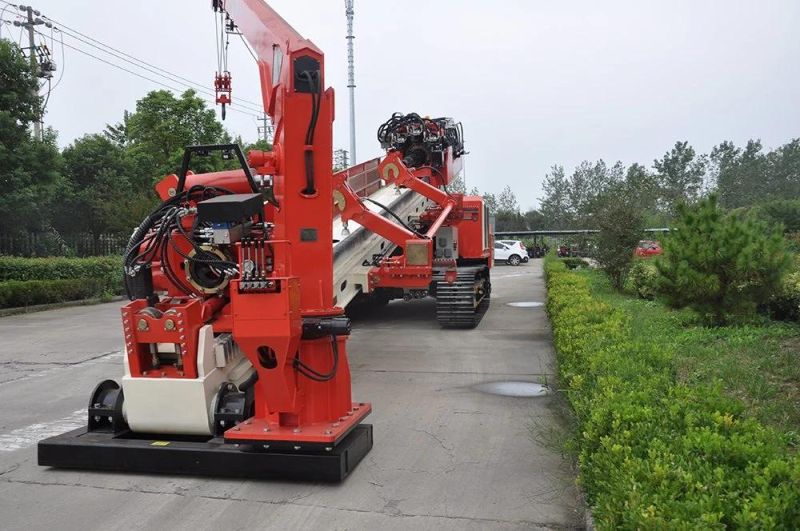

[Product Photos ]

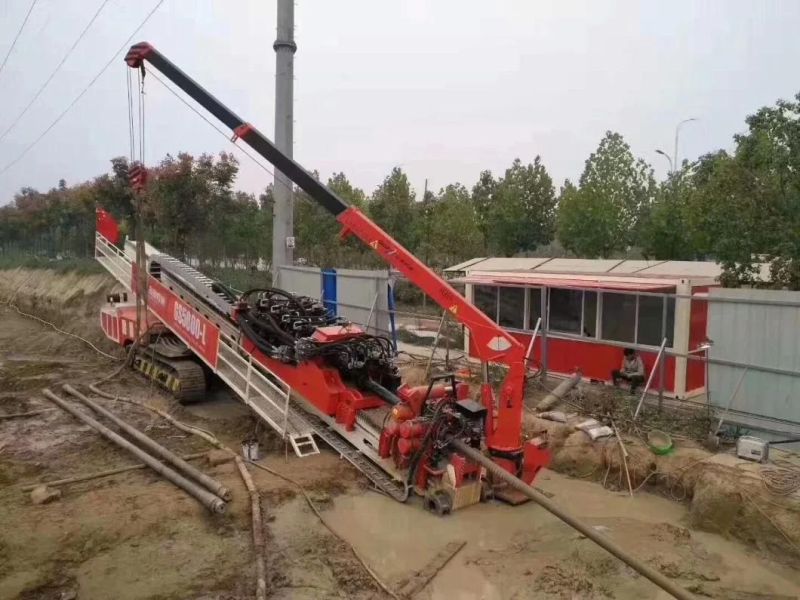

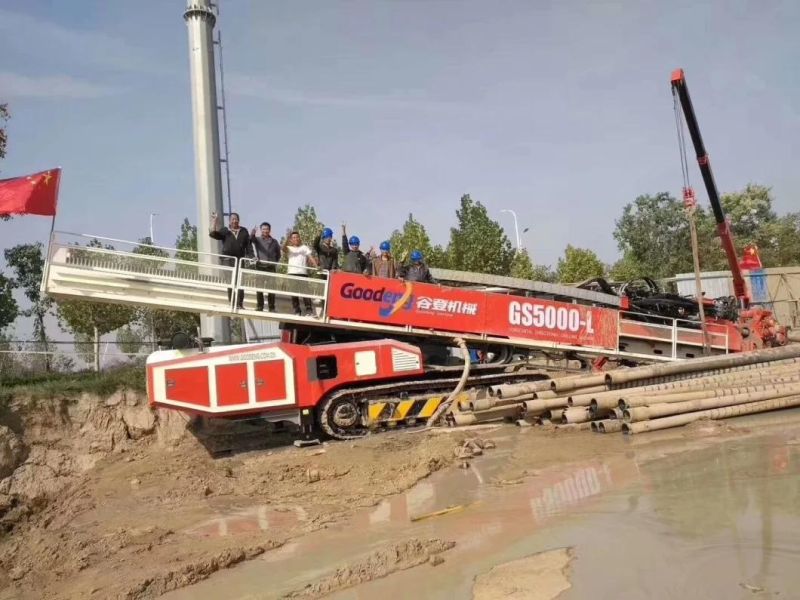

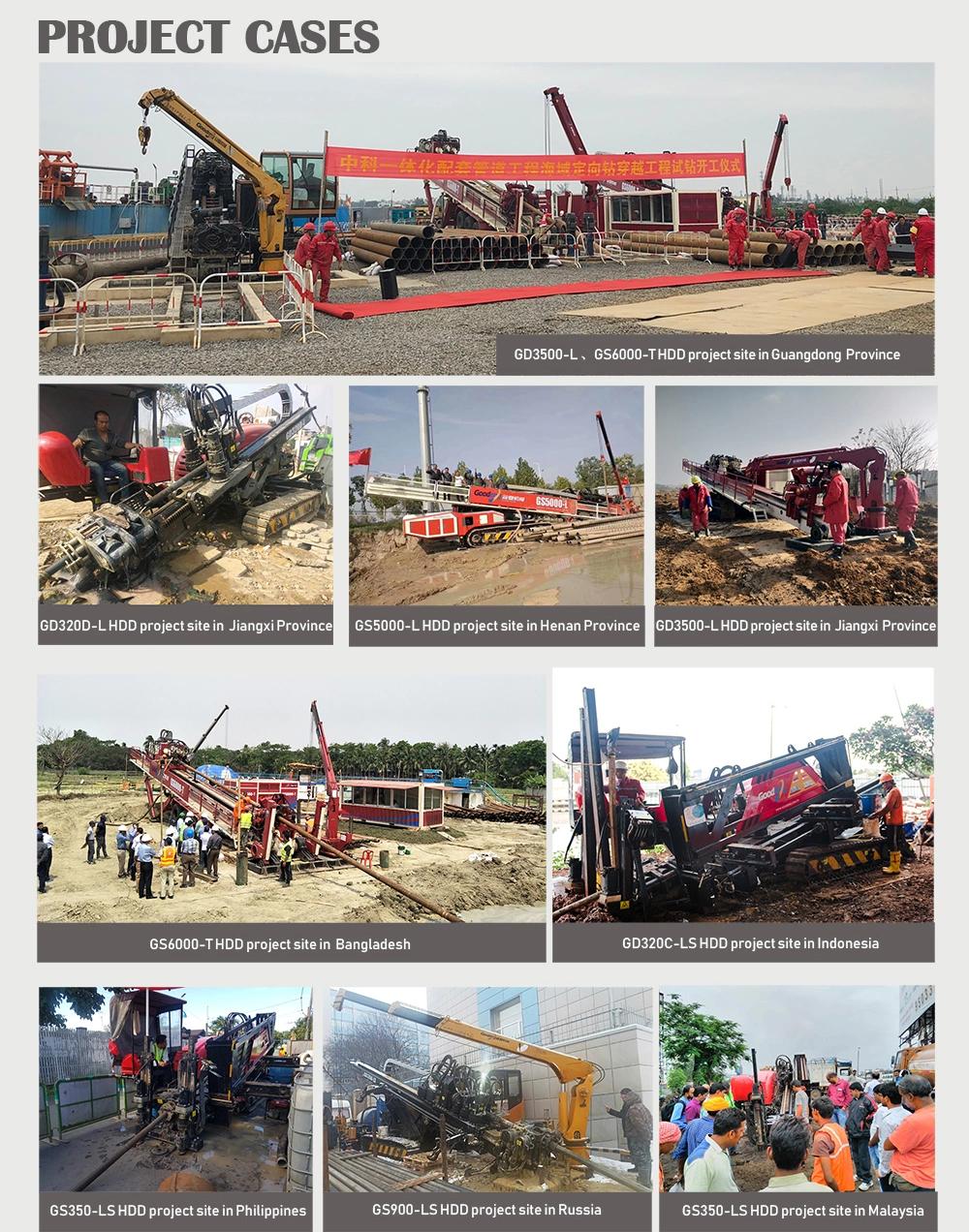

[Cases]





[Company Information]




[Company Profile]

"Goodeng Machine", founded in May 2002, is specialized in research & development, manufacturing, sales and service for trenchless equipment, static-pressure pile pressing-in & pile planting machine, and geological drilling equipment. Our main products are GD series of horizontal directional drilling machine. As mechanization Research branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team's support, which is filled of multiple domestic and abroad blanks. More products have obtained national and provincial progress prize in science and technology of machinery industry.

[Competitive Advantage]
  1. Competitive Price: We work as the leading dealers of various leading China construction machinery factories, and are treated with best dealership prices every year. From numerous comparisons and feedbacks from clients, our price is more competitive than other factories.
2. Quick Response: Our team is consisted of a group of deligent and enterprising people, working 24hrs/day to respond clients'  inquiries and questions all the time. Most problems can be solved within 12 hours.

[FAQ]

1. What about the warranty time?
    A:12 months after shipment or 2000 working hours,whichever occuts first.
2. What about the delivery time?
    A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
    A:On T/T term, 30% down payment is required in advnce, and 70% balance shall be before shipment, or
        against the copy of original BL for old client.
        On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
    A: We can ship machine by sea and road.
