20 Ton Per Day Fully Automatic Rice Mill Line
Jiangsu Vichen Composite Material Co., Ltd. / 2022-07-05
- After-sales Service：1year
- Warranty：1year
- Type：Rice Mill
- Application：Rice flour
- Voltage：380V
- Appearance：Horizontal
=== Base Info ===
- Model NO.：SD-RPL20
- Press Materials：Rice
- Press Series：Second
- Condition：New
- Customized：Customized
- Capacity：20 Ton Per Day
- Power：52kw, 380V, 50Hz
- Broken Rice Rate：3-5%
- Operation：Automatic
- Quality：High Quality
- Discount：Negotiable
- Installation：Responsible Installation
- Useful Life：20years
- Transport Package：Wooden Case
- Specification：Stainless steeel
- Trademark：SIDA
- Origin：China
- HS Code：8437800000
- Production Capacity：1000 Sets Per Month
=== Description ===
1) piston compressor
2) air tank
3) precision filter
General description of rice mill line

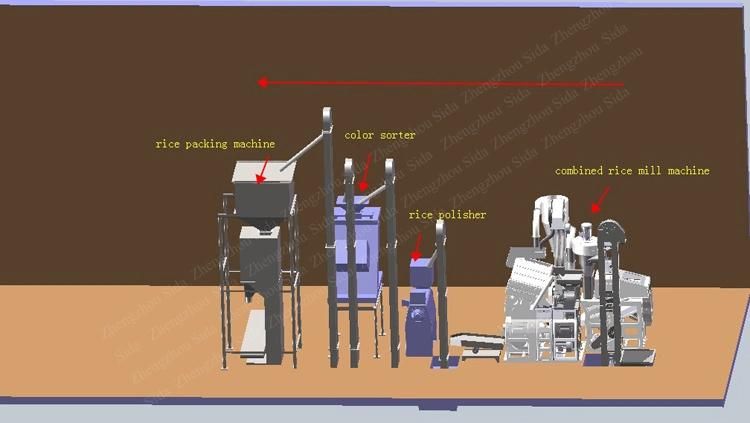

1) The combined rice processing line can produce 10 ton-24 ton per day, we will give you advise according to your requirements.2) It can clean, de-stone, hull, paddy separate, whiten( polish), grade all in one. The output is 1000-1200 kg rice per hour.3) Features: a. The main advantage of this new machine is that it occupies small space for easy installation with good performance, making rice whiter with less broken rice. b. Compact structure, easy operation, high rice precision; It's a ideal machine for small investment with good finish product. c. The working video and details manual will be available. d. Easy to adding some follow-up equipment e. Better cleaning effectIt is a new type whole set combined rice mill for processing rice in farmlands, towns, grain shop and specialized households, and it can improve milling precision of rice according to the demands of users by adding some follow-up equipment, like polisher, color sorter and rice packing machine.
Product processProduct process of rice mill line
1) Unprocessed food grains are poured into the feed hopper and elevated by single elevating conveyor to cleaning sieve, big and small foreign matters of unprocessed food grains will be cleaned up; 2) Cleaned grain will be elevated by double elevating conveyor to Husker to shell; rice shell will be conveyed by the crude bran separator to the exterior of machine or collect by Cyclone; mixture of paddy and unpolished rice will be elevated by double elevating conveyor to gravity paddy separator to carry out the separation of grain and bran; separated material including: one is material which including more paddy, these material will return to husker through double elevating conveyor to shell again, the second one is mixture of paddy and brown rice, these material will return to paddy separator by double elevating conveyor, the last one is clean brown rice, these material will into rice mill to whitening.
3) The fine bran out of whitener will be collected by a fine bran cyclone, and the rice out of rice outlet mouth is the finished rice.
4) Besides, there is switch gate on brown rice hopper and double elevating conveyor, through switch, paddy separator sieve will have enough time to have enough material and adjust to the situation of most ideal separate effect, to make sure that clean brown rice in to whitener. In the end, can make all the materials return to husker to shell, and then into whitener without through paddy separator, so can have a fast ending, and no residual in the all equipment.
Detail images
Customer feedback
Packaging and shipping
Installation pictures
About us
Zheng Zhou Sida Agriculture Equipment Co., Ltd. is the main agriculture equipment manufacturer with more than 20 years' experience in China. Our main machines covers: 1. Rice milling machine, 2. Parboiled rice milling machine 3. Cassava starch/flour processingmachine, potato starch processing machine, garri processing machine and so on. 4. Maize flour processing line and so on. We have the professional technology, research, design and sale teams. And our main markets cover Africa (such as Nigeria, Ghana, Cameroon,
Gabon and so on), Europe, America....
If you have any question, welcome to contact us.
