200m Hydraulic Water Well Boring Machine/Mud Rotary Water Drilling Rig (HGY-200)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HGY-200 Drilling Way Rotary Type Rotary Drilling Rig Quality High Quality Chuck Hydraulic Chuck Usage Coal, Ore, Water Well, Geotechnical Investigation Power Type Diesel Transport Package in New Strong Plywood Case Specification 200 Trademark csmiracleland Origin Changsha, Hunan, China HS Code 8430691900 Production Capacity 30 Sets/Month

Product Description

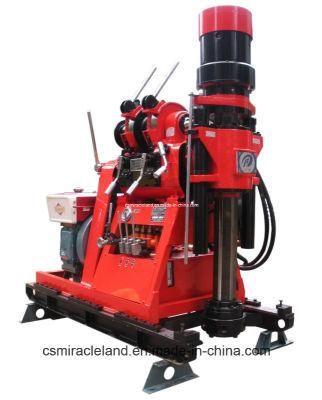

HGY-200 Portable Water Well Drill Rig:

Drilling depth(m): 200;
LxWxH(mm): 1860x800x1400;
Spindle stroke(mm): 500;
Diesel engine: ZS1110(14.7 KW);
Electromotor: Y160L-4(15KW);

Product Features:

Good stability and high reliability.
Multilevel positive and reverse rotate speed.
The complete hydraulic chuck and vertical spindle.
Convenient to transport with the small volume and light weight.
Perfect frame's rigidity, low center of gravity and good stability.

Product Application:

It is widely used in the construction of the projects e. g. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.



HGY-200 drilling rig can be equipped with large spindle hole diameter 95mm per customer's requests, and the standard spindle hole diameter is 63mm. This rig is equipped hydraulic chuck on top and the manual chuck at the bottom, which makes the rig more stable during drilling, increase the drilling efficiency and reduce the drilling accidents happened.

The Technological Data of HGY-200 Drilling Rig:


Type	HGY-200 Drilling Rig
Drilling depth(m)	200
Drilling rod diameter(mm)	Φ50
Head angle range	360°
Cylinder stroke(mm)	360
Spindle speed(r/min)	Positive rotation rate: 60150240340550830 Reverse rotation rate: 3585135195330480
Spindle hole diameter(mm)	Φ65 Φ95
Spindle output torque(N.M)	2140
Spindle stroke(mm)	500
Spindle driving force max.(KN)	37
Spindle lifting power max.(KN)	50
Lifting speed (m/s)	0.62.33.4
Single rope lifting power(KN)	20
Steel wire rope diameter(mm)	Φ11
Mode of chuck	Full hydraulic chuck or ball-type chuck
Weight(power unit excepted)(kg)	750
Dimensions(LxWxH)(mm)	1860x800x1400
Diesel engine	ZS1110(14.7KW)
Electrometer	Y160L-4(15KW)
