ABS/PC Co-Extrusionin T-Die Travelling Cases Sheet Extrusion Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJ Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Machine Name PC Co-Extrusion Cases Sheet Extrusion Line Sheet Width 1080mm Sheet Thickness 1.5mm-3mm Certifications Ce, ISO9001-2008, SGS, GOST Motor Siemens PLC Siemens Contactor Siemens Transport Package Wooden Cases with Vacuum Film Specification CE ISO9001-2008, GOST, SGS Trademark Qingdao Leader Machinery Origin Qingdao China HS Code 8477209000 Production Capacity 100set/Year

Product Description

Product Description

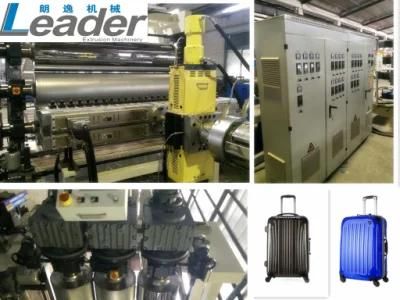

Suitcase ABS/PC co-extrusion in T-die travelling cases sheet extrusion line
Machine features:
Screw with special mixing and plasticization function;
Coat hanger type die with two throttle designs which enable to regulate the sheet thickness accurately; ±1 temperature control make the plasticizing process and sheet thickness control more accurate;
Horinzontal, vertical or 45°incline type three rollers calenders may be lifted freely;
Sheet thickness shall be regulated by screw and pressing roller;
Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness; Exact slicing machine, board length and quantity;
Winder with big torque motor, and its speed and tension force adjustable;
Automatic metering to set the length of product

This line  adopts the most advanced multifold co-extrusion inside in the Ti-die and its performance is much better than the traditional single fold extrusion with feedblocks .The travelling cases sheets producted by this machine posses advantages of fresh and beatiful color ,solid structure ,high quality ,lower cost ,especially suitable for the middle-high class rigid shell traveling cases.
Techinical data:

Main extruder model	120/35
Main driving motor	185kw
Co-extruder model	65/33
Co-rxtruder driving motor	39kw
Sheet width	1080mm
Sheet thickness	1.5-3mm
Output	>400kg/h
Installed power	400kw
