Biodegradable HDPE LDPE Plastic Shopping Bag Film Blowing Machine

=== Base Info ===

=== Description ===

Basic Info.

Computerized Computerized Machine Weight 10T Certification CE, ISO9001:2008 Material HDPE. LDPE, Biodegrade, PLA Film Width 800/1000/1200/1500mm Screw Material Bimetalic High Speed Screw Die Head. Single Layers Air Ring Double Lips Air Ring Speed 100-120kgs/H Rewinder Automatic Cutting and Change Roll Motor Brand Siemens Brand Inverter Delta Brand Electrical Parts Schneider Power 3p/380V/415V/220V Transport Package Standard Wooden Box, etc. Specification CE, ISO Trademark SANBI Origin China HS Code 8477301000 Production Capacity 60-120kgs/H

Product Description

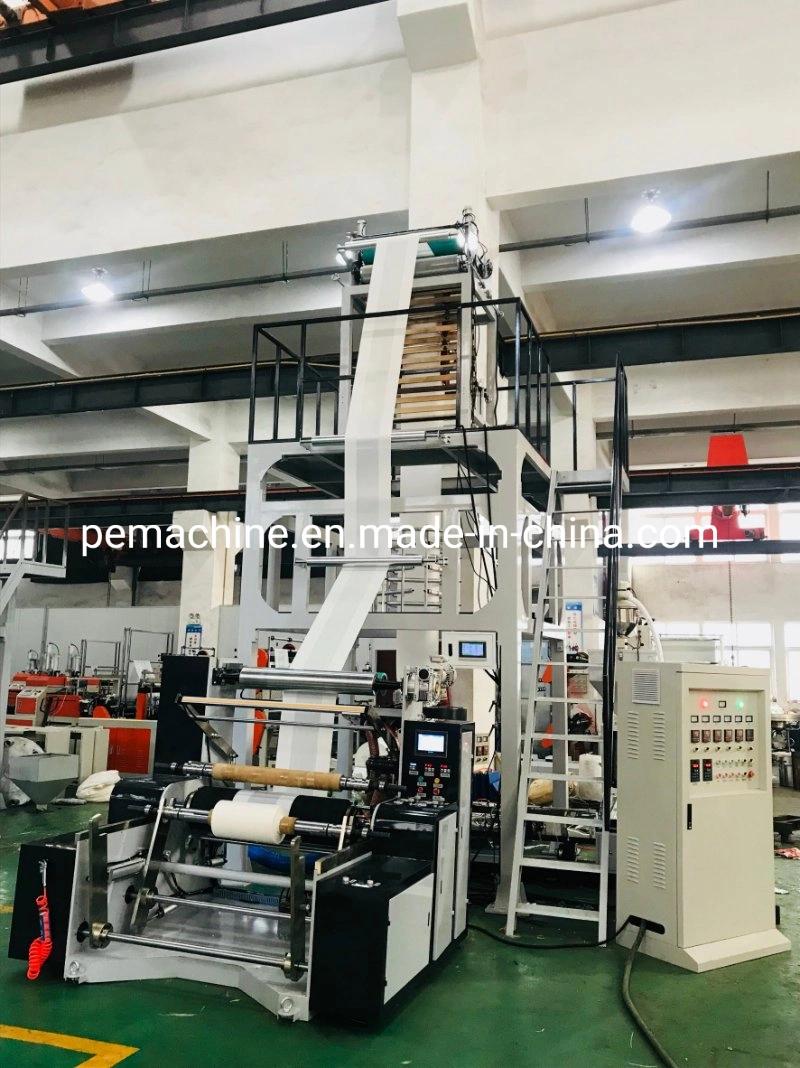

HIGH SPEED Biodegradable HDPE LDPE PLASTIC  film blowing machine

Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.


SPECIFICATIONS



Model	SJ-P50	SJ-P55
Screw Diameter	Ф50	Ф55
Screw Ratio L/D	30:1	30:1
Screw Speed	15-120r/min	15-120r/min
Main Motor Power	15Kw	22Kw
Extrusion Output	50-60kg/h	90kg/h
Range of Die	Ф120	Ф150
Single-sided Thickness of Film	0.02-0.10mm	0.02-0.10mm
Max. Folding Width of Film	600mm	800mm
Electric Total Capacity	50Kw	80kw
Overall Dimension	5000×3200×5500mm	5000×3500×6000mm
Weight of Machine	5T	6T
