Drill Machinery Rock Core Bore Borehole Water Well Drilling Rig Machine

=== Base Info ===

=== Description ===
1.Overall parametersDrilling depth150m/492ftMaximum open hole caliber400mm/15.7inEnd hole caliber75mm/3inDiameter of drill rod50mm/1.97inDrilling angle90~75 degreeWeight(not include power)760kgDimension2000*1000*1400mm2. Vertical shaft Rotating speed71.142.310.620r/minFeeding stroke450mm/17.8in3.Hoist Max. single line hoisting capacity1600KgDiameter of wire rope12mmVolume of winding drum35m/Hug floodgate caliber245mmHug floodgate belt width70mm/2.8in4.Mud pump TypeHorizontal single urn twin-actionRate of flow95L/minMAX. pressure1.2MPaWorking pressure0.7MPaDiameter of  water inlet tube50mm/2inDiameter of  water outlet tube 45mm/1.8in5.Power Diesel engine18HP, 2200r/minElectrical motor11KW, 1460r/min

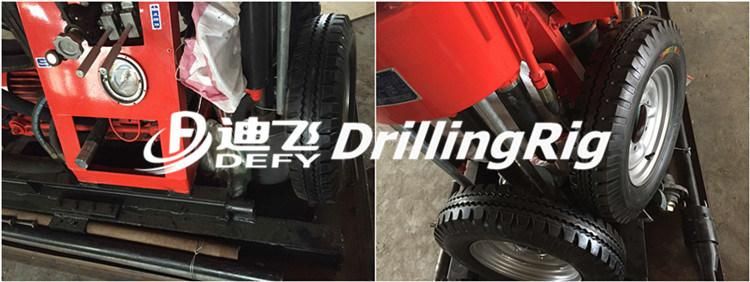

Characteristics of XY-150 Drilling Rig Machine


1.Power can be equipped by electrical motor or diesel engine, as per your project needs;




2.The gearbox and vertical shaft box are combined into one, more compact structure and improve the overall rigidity;

3.Hoist adopts Frictional clutch mechanism, using powder metallurgy friction plate,with good performance and long service life;




4. Hydraulic part: piston rod adopts stern sealing ring(sealing ring for shaft),hydro-cylinder piston adopts Glyd ring(sealing ring for hole), up to international advanced level.

Working of XY-150 Drilling Rig Machine






FAQ

Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.we design,produce and sell.We master the core
      technology, and constantly adjust our products according to the market trend and customer
      feedback, ensure product quality.

Q2: How long is your delivery time?
A2: It is according to the model and quantity.
      Generally it is 3-5 days if the machines are in stock.
      It will be 15-30 days if you want to customize the machines.

Q3: What do I need to do after payment?
A3: a) If under FOB trading terms,you need to employ a ship forwarder to ship the goods to you;
      b) Under CIF trading terms,we send the goods to the destination port,and contact you to pick
           up the goods; All documents for customs clearance will be sent to you by international
           express after shipment.

How to choose a suitable drilling rig?

1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?

2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.

3. Any requirements to hole diameter?

---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it
inversely proportional.

4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.

Based on the above information, Our experienced engineers will help you recommend suitable
machine and price. If you have special demands, please tell us ahead.



About Us

    Zhengzhou Defy Mechanical & Electrical Equipment Co.,Ltd. locates in High-tech zone of
Zhengzhou city, China.

    Our factory dedicates in manufacturing drilling rig since 1970s, more than 40 years' experience
of production and development makes our product quality rank in the leading position at home and
abroad.

    We are always seeking for ever greater perfection, keeping improving the production technology,
offering better user experience.
