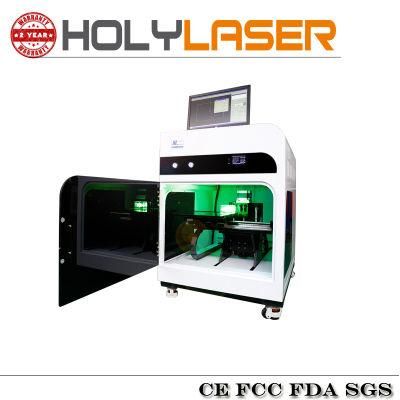

High Quality 3D Crystal Inside Engraving Machine

• Application：Printing & Packaging, Construction Industry, Crafts Industr, Advertising Industry, Glass, Crystal
• Cooling System：Air Cooling
• Technical Class：Pulse Laser
• Automatic Grade：Automatic
• Applicable Material：Nonmetal
• Type：Oscillating Mirror

=== Base Info ===

• Model NO.：HSGP-4KB
• Laser Classification：Semiconductor Laser
• Engraving Method：Vector Engraving
• Laser：Semiconductor Diode
• Laser Wavelength：532nm
• Laser Frequecny：4kHz
• Laser Power：3W
• Max Pulse Energy：1.2mj
• Max Engrave Speed Points：≤240000dots,Minute
• Resolution：800dpi-1200dpi
• Focus Length：100mm
• Focus Diameter：0.02mm
• Cooling：Air Cooling
• Transport Package：Wooden Case
• Specification：CE, FCC, FDA, SGS, TUV, ISO
• Trademark：Holy Laser
• Origin：Zhejiang, China
• HS Code：8456100090
• Production Capacity：50 Sets,Per Month

=== Description ===
Type HSGP-4.5KB (all-in-one machine)laser / laser wavelengthsemiconductor diode/ 532nmlaser repetition frequency4000HZmax. marking speed240,000dots/min.max. marking scope300*400*130MM focus diameter/resolution0.02nm/ 1200DPIworkingwith high speed scanner+X+Y+Z (5 axis)positioning accuracy10μm continuous working time24 hourscoolinf/quality warrantyair coolinglifetime>50,000hoursgross power/noise3W/ 50dbpower requirementsingle phase 220V or 110 V (+/- 10%), 50Hz or 60 Hzsoftwareself reseach software for 3D, 2Ddots cloud,and for control machinesuitable materialscrystal, glass, hard plastic, acrylic, etc.working environmenttemperature15-30°C


Application Industry High-frequency 3D Crystal Laser Engraving Machine:

Our 3D crystal laser engraving machine is widely used in 2D&3D crystal photo engraving, personalized crystal engraving gifts, high finesse crystal product processing, high-grade glass products, etc


Application Material:

Can be used for engraving inside of crystal cube, common glass, transparent acrylic, and also can marking on surface of hard plastic


Packing and delivery:

Packing: Packed in wooden case with waterproof felt inside, keeping machine safe
Delivery: 3-5 days upon receipt of your payment



After-sale service:
One year warranty for product quality
Free training for machines installation and operation
Free design of machine as you required
Lifelong maintenance and spare parts supply
Free marking samples as you required



Factory Profile:
We are the manufacturer with 17 years' history on researching and producing all kinds of Lasers
Cooperated with the Zhejiang University and update new technology in-time
Key enterprise supported by the government of Yiwu City
