Plastic Polycarbonate Sheet Manufacturing Machine|Wholesale HDPE PP HIPS Pet Thermoforming ...

=== Base Info ===

=== Description ===
Layer StructureMono Layer Extrusion Line3-layer Extrusion Line5-layer Extrusion LineExtruder ModelSJ90,SJ100,SJ120,SJ150,SJ200SJ120/33,SJ65/33SJ120/33,SJ45/33,SJ65/33Sheet Width600-1300MM600-1300MM600-1300MMSheet Thickness0.25-2.00.3-2.00.3-2.0Max.Capacity150-500250-400250-450

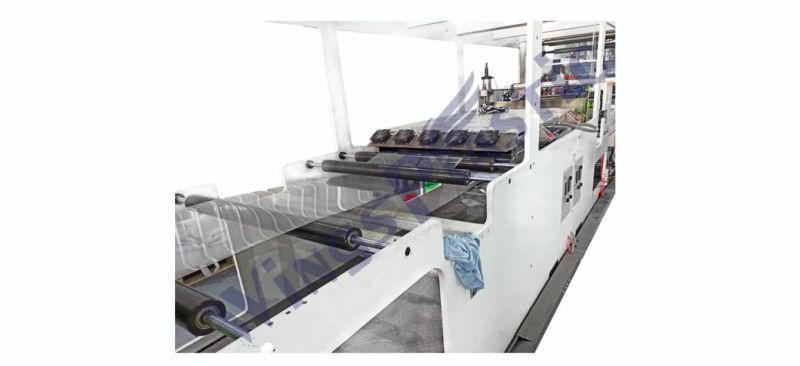

Intruduce of Plastic Sheet Making Machine
1. Single/Two/Three layers is producible
2. Extruder screw adopts special design with efficient mixing function and high plasticizing capacity.The mater of barrel and screw is 38CrMoA1A, the hardness of nitride is 740HV.
3. Coat-hanger die uses double throttling design to make sheet thickness accurate.
4. Temperature can be precisely controlled within ±1 °C
5. Three-roll calender: horizontal, vertical or tilted arrangement, motorized gap adjustment for calender roll for quick product changes
6. Precisely manufactured rollers, hardened and mirror finished surface for suiperier surface properties and excellent thickness control.Independent roller temperature control system is able to make sheet thickness uniformity.
7. Winder is equipped with high quality torque motor,it can adjust rewinding speed and tension.
8. This sheet production line has automatic meter counter to set the length of sheet.
9. Plastic sheets produced from this type of extrusion equipment are sturdy,yet remains somewhat flexible.
