PVC Cable Trunking Extrusion Line Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. KBL55S Transport Package Export Packing Standard Specification 16*16-40*40mm Trademark kebeln Origin China HS Code 8477209000 Production Capacity 150-180kg/H

Product Description

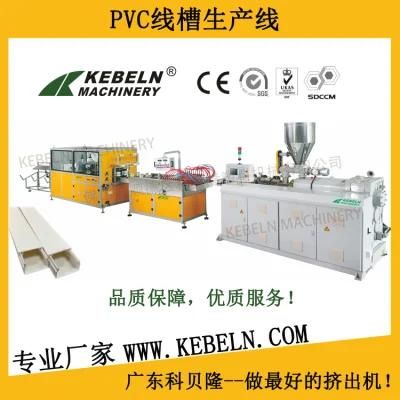

PVC double trunking xtrusion line is included KBL55/113 conical twin-screw extruder, mould, vacuum forming table, double haul off and cutting machine, stacker. Material is PVC, best production diameter range is 16*16mm-40*40mm. It has the advantage of high capacity, simple operation, high degree automation, automatic fault alarm and simple maintenance, long working time.

Technical specification

mainframe specifications	55/113	cavity of mould	double trunkings
extreder capacity(kg/h)	150-200kg/h	production speed(m/min)	0-10m/min
Length of vacuum forming table(mm)	3000mm	Motor power(kw)	22kw/30kw
speed of haul off(m/min)	0-12	size range(mm)	16*16mm-40*40mm
