High Quality Milk Cream Separator Machine Used In The Skim Milk

• Process：Mild Processing
• Power Source：Electric
• Certification：SGS TUV
• Automatic Grade：Automatic
• Application：Milk, Cheese, butter,casein and ect.
• Customized：Customized

=== Base Info ===

• Model NO.：HT-TZJ10B
• Material：Stainless Steel
• Bowl inner：300mm
• Bowl speed：7320r,min
• Product：1000L,H
• Separate factor：8985
• Sludge：PLC
• Power：380V,4kw
• Weight：500kg
• Transport Package：Fumigation-Free Wooden Case
• Specification：850*850*1200mm
• Trademark：HENTO
• Origin：Henan, China
• Production Capacity：400sets,Month

=== Description ===

Basic Info.

Model NO. HT-TZJ10B Material Stainless Steel Bowl inner 300mm Bowl speed 7320r/min Product 1000L/H Separate factor 8985 Sludge PLC Power 380V/4kw Weight 500kg Transport Package Fumigation-Free Wooden Case Specification 850*850*1200mm Trademark HENTO Origin Henan, China Production Capacity 400sets/Month

Product Description

High Quality Milk Cream Separator Machine Used In The Skim Milk

1. Machine Introduction:
The milk cream separator is the most important equipment in dairy industry. Mainly used in the skim milk, butter, casein, cheese production, anhydrous butter production process, removing cream and foreign impurities in the milk. Similar materials can also be used for clarification and purification, such as coconut milk, fish oil, lemon oil.
 This product absorbs the advantage of the same kind foreign .Product in Germany and Russia. All the parts that may contact the feedstock are made of stainless steel. Available reduce the chemical effect of the feedstock and the machine spare parts.
  Power drive adopts the friction clutch, Transfer power by the fluid, start reliably, prevent overland. The bearings are SKF grade in Sweden, guarantee working precision of the machine.
The separator adopts the PLC automatic control system, can carry out automatic de-slugging, ability of fitness is stronger, automatic degree is high. Easy to adjust, worker labor strength is opposite to ease, the solids content ratio in the mixture fluid is widely.

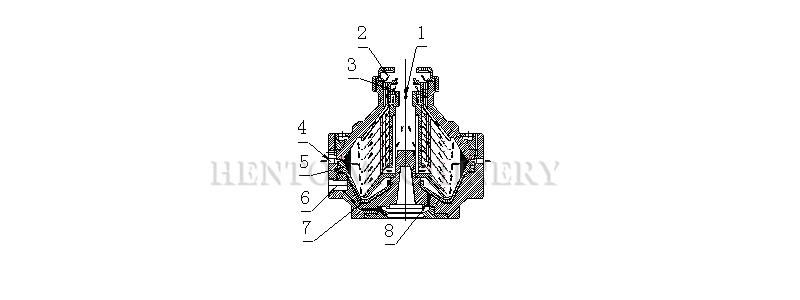

When working, the sealing water 8 is bumped into the sealing room 7, rising the sliding piston 5,and sediment ejection hole 4 is shut down, then milk to be processed are fed to the bowl from feeding pipe 1, Under he effects of centrifugal force, the solids which has heavier density is collected on the bowl wall, After a while, the opening water 8 is bumped into the opening room 6, falling the sliding piston 5,open the sediment ejection hole 4, impurities are de-sludged from the bowl. The lighter liquid (cream) flow along the inner side of the discs into the passage in the upper distributor, the lighter product is discharged from the machine by the lower.centripetal pump 3.The heavier liquid(skim milk) flow along another passage, discharged from the machine by the upper centripetal pump 2.Thus the milk is separated well. The separator adopts self de-slugging and centripetal pump. Thus the machine can work continuously for a long time, attain good separation effects in.

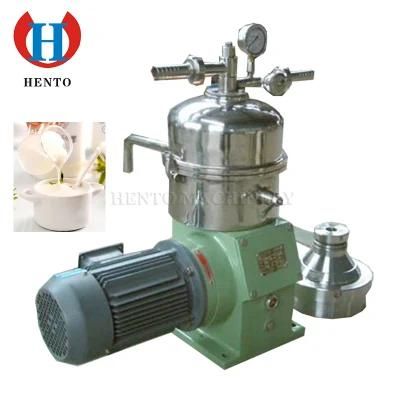

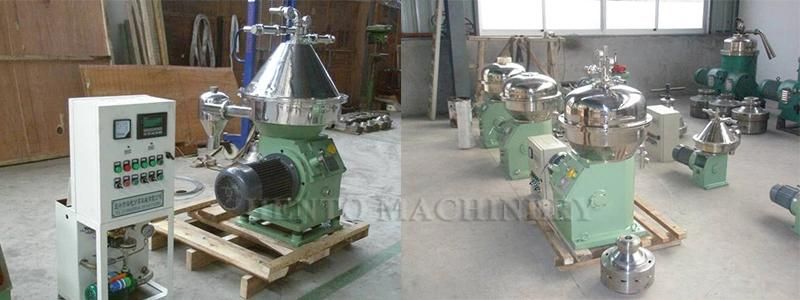

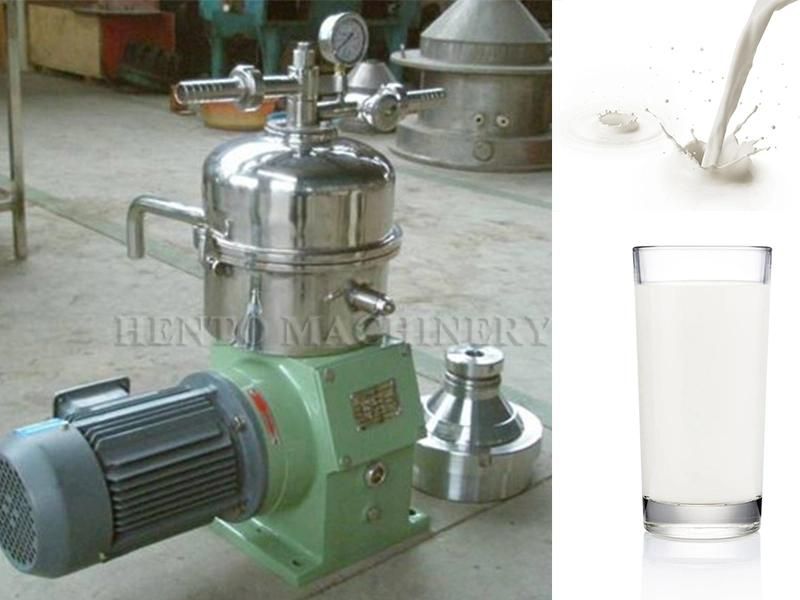

2.Machine Photos:

3.Technical Parameters:

Model	HT-TZJ10B
Bowl inner	300mm
Bowl speed	7320r/min
Product	1000L/H
Separate factor	8985
Fat output	Centripetal pump
Skim milk output	Centripetal pump
Sludge	PLC
Power	380V/4kw
Temperature	35-55 ºC
Fat in skim milk	0.015-0.05%
Weight	500kg
Dimension	850*850*1200mm

4.Company Certificate:

5.Packing&Delivery:

6.Our Customer:

7.Contact Information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
