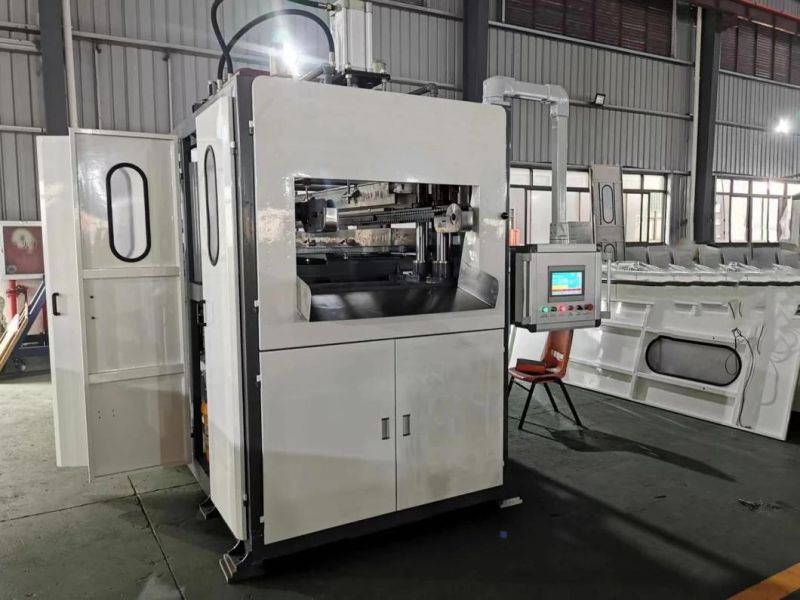

Disposable Cola Cup Thermoforming Production Line Plastic Box Making Machine for ...

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HY-PC750 Specification 4500*1600*2500mm Trademark HOIN Origin China HS Code 8477409000 Production Capacity 20sets/Month

Product Description

Automatic plastic cup making machine for producing different kinds of plastic cup/bowl/container,like drinking cups,ice cream cups, jelly cups, coffee cups,take-away container,meal box,soup bowl etc.

Main Technical Parameter

Sheet Material	PP/PS/PE/HIPS/PET/PVC(Hard Sheet )
Sheet Thickness	0.3-2.0mm
Sheet Width	500-720mm
Max Install Area	750×350mm
Max Shaping Depth	170mm(can be adjust)
Max Forming Depth	130mm(can be adjus)
Productivity	10-35strokes/min
Heating Rated Power	About 50kw
Total Power	100Kw
Main Motor Power	11kw
Power Supply	380V/50Hz(three phase four wire)
Forming Pressure	0.6-0.8Mpa
Water Volume Required	40~45L/min
Machine Weight	About 6T
Overall Dimension	4.5m*1.8m*2.4m
