CO2 Laser Marking Printer PVC Pipe Laser Marking Machine Price

• Laser Visibility：Visible
• Applicable Material：Metal, Plastics, Others
• Cooling System：Air Cooling
• Technical Class：Continuous Wave Laser
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser

=== Base Info ===

• Model NO.：YC
• Type：Semiconductor Laser Marking Machine
• Marking Method：Scanning Marking
• Type 1：20W
• Type 2：30W
• Type 3：60W
• Transport Package：Wood
• Specification：0.5CBM
• Trademark：YOUTH
• Origin：China
• Production Capacity：10000set,Year

=== Description ===

Basic Info.

Model NO. YC Type Semiconductor Laser Marking Machine Marking Method Scanning Marking Type 1 20W Type 2 30W Type 3 60W Transport Package Wood Specification 0.5CBM Trademark YOUTH Origin China Production Capacity 10000set/Year

Product Description

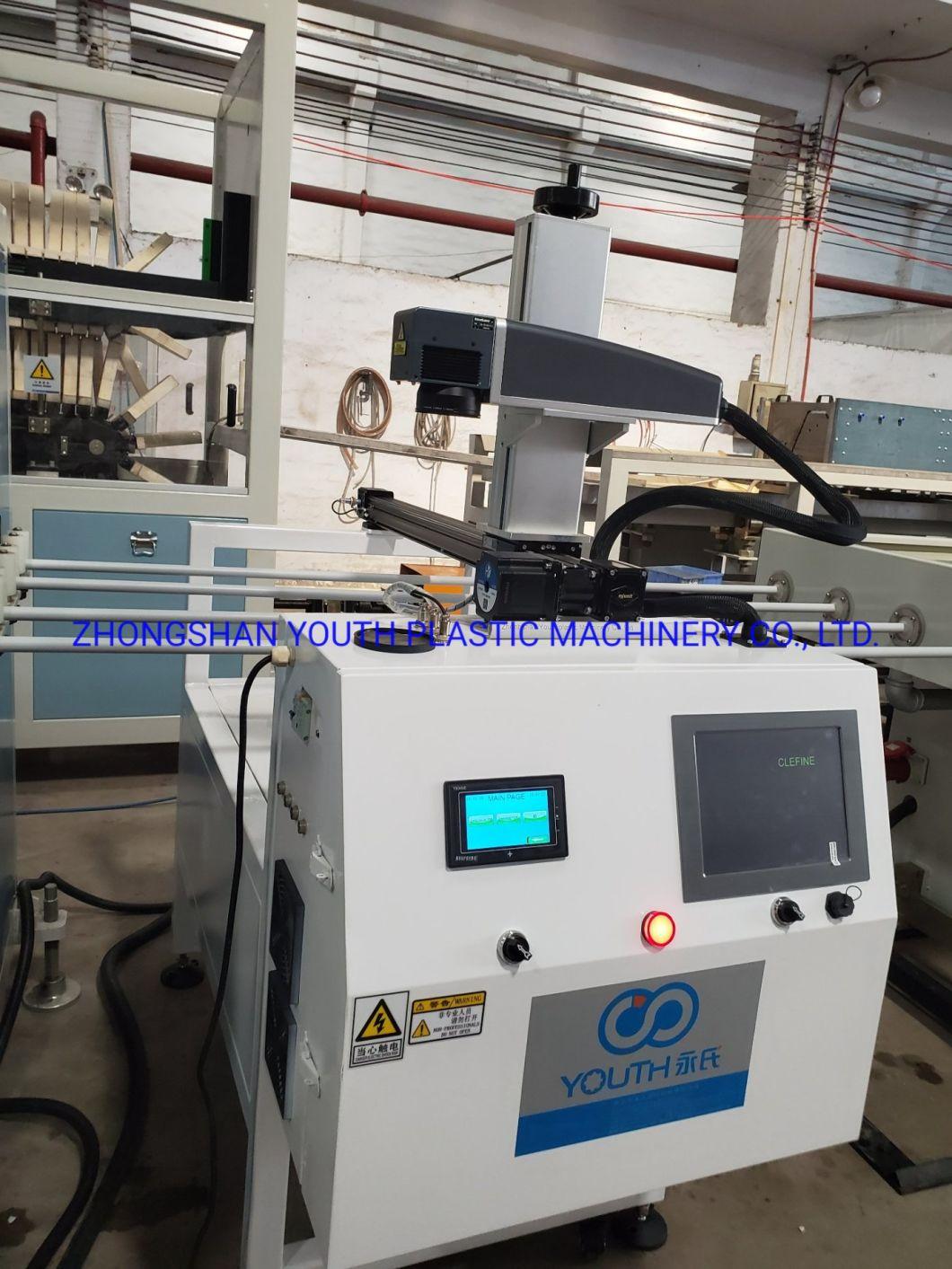

CO2 Laser Marking Printer PVC Pipe Laser Marking Machine Price


Type	YC-X30
Scope of application	Specially designed 30W laser printer can work continuously for 24 hours
Standard configuration	1) Laser 2) Laser head 3) Control system 4) Laser machine bracket 5) Focusing lens, beam expander 6) Power supply 7) Photoelectric sensor
Basic hardware configuration instructions	1) Cree Laser 2) Imported motor full digital high-speed vibration lens (with focus red light) 3) Collin Peak marking software control system (10 inch touch screen) 4) Three-dimensional adjustment bracket 5) Singapore wavelength optical components 6) Taiwan Mingwei Industrial Power 7) Omron fiber optic sensor 8) Omron encoder



Parameters	Index	Parameters	Index
Laser wavelength	10.6μm	Humidity	Relative humidity 95% RH, non-condensing
Average output power	33W	Operating system	YC-JET
Beam quality	m²<1	Operating language	Chinese, English, Russian, Arabic, Spanish etc.
Modulation frequency	20KHZ-80KHZ	Font	With more than 10 commonly used fonts, you can choose line coding or dot matrix coding
Carving depth	0.01mm-0.4mm (according to product)	Flight coding speed	90 meters / minute (the specific speed varies depending on the material and content of the code)
Minimum line width	0.1mm	Cooling system	Air-cooled
Smallest character	0.2mm	Power supply	Single phase,110-220VAC,AC50-60Hz,1KVA
Repeat accuracy	±0.03mm	Marking range	70mm*70mm,110mm*1110mm or max.
Machine power consumption	500W	Interface	USB,Serial port
surroundings temperature	5-55ºC	Marking lines	Mark any number of lines in the selected range

Technical Parameters of Carbon Dioxide Laser printer
Laser power: 20W, 30W, 60W
Laser wavelength: 10600nm
Applicable materials: Paper products, wood, glass, PVC, PET, tinplate, paint, etc.
Cooling method: air cooling
Marked content: in Chinese/English, numbers, barcodes, QR codes, LOGO (supports real-time transmission printing)
Marked content: Single-line, double-line, dot matrix
Marking range: 100x100mm 150x150mm 300x300mm (larger optional)
Marking line speed ≤12000mm/s
Repeatability ≤0.003mm
Temperature requirement: 0-45 ° C
Humidity requirement: relative humidity less than 95% RH. Non-frosting
Control mode: Industrial touch screen
External interface: USB, RS232, RJ45
Applicable power supply: 110/220V 50-60Hz
Total power: 600W,950W


Technical Parameters of Optical Fiber Laser printer
Laser power: 20W, 30W, 60W
Laser wavelength: 1064nm
Applicable materials: stainless steel, aluminum, iron, PVC, PE, PPR, ABS, etc.
Cooling method: air cooling
Marked content: in Chinese/English, numbers, barcodes, QR codes, LOGO (supports real-time transmission printing)
Marked content: Single-line, double-line, dot matrix
Marking range: 100x100mm 150x150mm 300x300mm (larger optional)
Marking line speed ≤12000mm/s
Repeatability ≤0.003mm
Temperature requirement: 0-45 ° C
Humidity requirement: relative humidity less than 95% RH. Non-frosting
Control mode: Industrial touch screen
External interface: USB, RS232, RJ45
Applicable power supply: 110/220V 50-60Hz
Total power: 600W

Technical Parameters of Ultraviolet Light Laser printer
Laser power: 3W, 5W
Laser wavelength: 355nm
Applicable materials: HDPE,PE,PPR,ABS, etc.
Cooling method: air cooling, water cooling
Marked content: in Chinese/English, numbers, barcodes, QR codes, LOGO (supports real-time transmission printing)
Marked content: Single-line, double-line, dot matrix
Marking range: 100x100mm 150x150mm 300x300mm (larger optional)
Marking line speed ≤12000mm/s
Repeatability ≤0.003mm
Temperature requirement: 0-45 ° C
Humidity requirement: relative humidity less than 95% RH. Non-frosting
Control mode: Industrial touch screen
External interface: USB, RS232, RJ45
Applicable power supply: 110/220V 50-60Hz
Total power: 1200W
