M Type Two in One Plastic Rope Making Machine M55-3 Strand and 4 Strand with Core
Trojan (Suzhou) Material Technology Co., Ltd. / 2022-07-04
=== Base Info ===
=== Description ===
Basic Info.
Exhaust
Don′t Exhaust
Automation
Automatic
Computerized
Computerized
Rope Size
3-32mm
Rope Strands
3 Strand and 4 Strand
Rope Material
PP PE Pet Cotton Jute Polyester Jute etc
Output
High Efficiency and Output
Quality
Good Quality
Warranty
1 Year
Technical Support
Yes
Loading Time
45days After Deposit Received
Certification
ISO Ce
Power
7.5kw-30kw
Usage
Packing Agruculture
Function
Twisting
Colour
Customers′ Requirement
Motor Quantity
1/2/3 Motors
Brand
Cnrm
Transport Package
Container
Specification
5.6*2*2m
Trademark
CNRM
Origin
China
HS Code
84794000
Production Capacity
High Output
Product Description
3mm-32mm Shandong Hadai CNRM PP/PE/Jute/Cotton/Nylon/Polyester Twisted Rope Making Machine 1.Product Description
The rope is divided into monofilament rope, split film rope, multifilament rope, nature rope, waste yarn rope.
Suitable rope
(1). Rope diameter: from 3mm up to 32mm. (2). Suitable material: HDPE, PP, PET, nylon, polyester, cotton, sisal, jute, coconut, banana, recycled tape,nonwoven tape, etc. monofilament, multifilament, natural fiber, the machine has wide application scope.(3). Rope structure: 3 strands, 4 strands, 4 strands with the core.Complete production line for pp pe monofilament rope

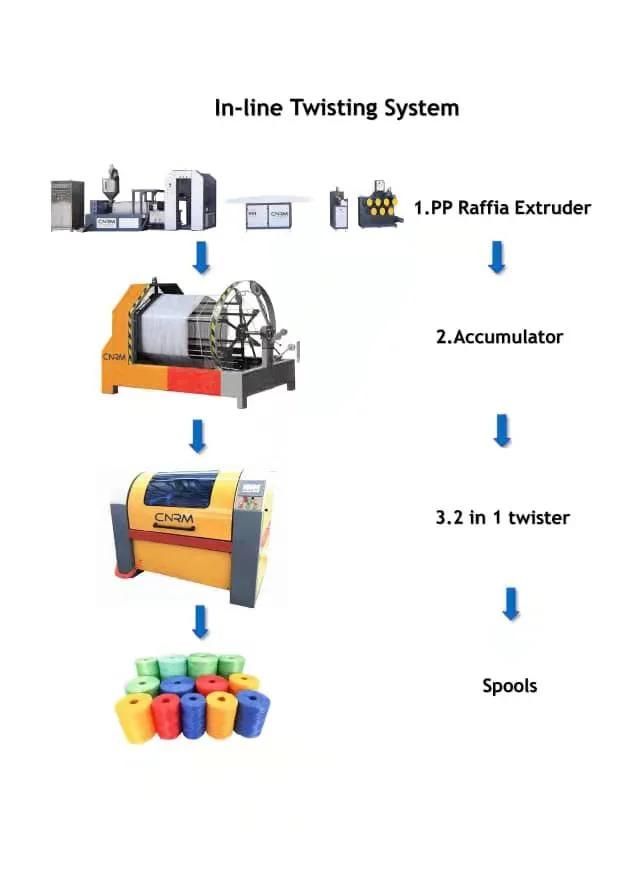

(1). PP PE monofilament yarn extruder machine for matching High Speed nylon rope making machine for plastic monofilament/pp danline/Plastic split blown film/sisal jute/cotton cloth rope.
(2). Ring twister machine for first twisting of rope.
(3). Rope making machine for making 3 strands or 4 strand rope.
(4). Rope rewinder machine for reel, coil, hank packaging.
![M Type Two in One Plastic Rope Making Machine M55-3 Strand and 4 Strand with Core](https://pub.357th.com/www.676102.com/uploads/image/2021/c1/10/c5/f2/04bbb14efd20aaf8d24035b110864524.jpg)
2.Plastic Rope Making Machine Parameters
Item | HDTM-M33 | HDTM-M44 | HDTM-M55 | HDTM-M66 | HDTM-M77 |
Rope Range | 3-10mm | 6-14mm | 12-22mm | 18-26mm | 22-32mm |
Lay Range | 15-38mm | 20-50mm | 32-78mm | 40-105 | 45-130 |
Power | 7.5kw | 7.5kw/11kw | 18.5kw | 22kw | 30kw |
Take-up capacity | Φ130*Φ500*Φ320 | Φ130*Φ600*Φ400 | Φ130*Φ600*Φ400 | Φ140*Φ700*Φ450 | Φ200*Φ550*Φ650 |
Size of pay-off bobbin | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) |
Qty of 8" bobbin | 8*3 or 8*4 | 24*3 or 24*4 | 32*3 or 32*4 | 46*3 or 46*4 | 64*3 or 64*4 |
Machine weigth | 2500kg | 3500kg | 5000kg | 6000kg | 7000kg |
Plastic Rope Making Machine Key Features
-Power transmission by timing belts.
-Auto stop after yarn breakage to control wastage.
-Digital length counter meter.
-Door Sensor.
-A.C. frequency drive.
-Direct coiling head. 3.Detailed Images
Plastic Rope Making Machine Overall Pictures
please tell your final rope diameter range,we are so pleased to recommend right twist rope machine models to you.![M Type Two in One Plastic Rope Making Machine M55-3 Strand and 4 Strand with Core](https://pub.357th.com/www.676102.com/uploads/image/2021/9a/40/1f/55/fae3b0131f7d98e4d0ea9641149024ef.jpg)
![M Type Two in One Plastic Rope Making Machine M55-3 Strand and 4 Strand with Core](https://pub.357th.com/www.676102.com/uploads/image/2021/b5/7e/30/51/c2519e08104d86ed724c52327bfb3438.jpg)
![M Type Two in One Plastic Rope Making Machine M55-3 Strand and 4 Strand with Core](https://pub.357th.com/www.676102.com/uploads/image/2021/d8/68/7f/87/fc8e71a747c093c22c76575cde28a3e3.jpg)
![M Type Two in One Plastic Rope Making Machine M55-3 Strand and 4 Strand with Core](https://pub.357th.com/www.676102.com/uploads/image/2021/46/75/37/62/519614e7d2d6aadf86dfcbf9ae3c79ff.jpg)
4.Installation at customer's factory ![M Type Two in One Plastic Rope Making Machine M55-3 Strand and 4 Strand with Core](https://pub.357th.com/www.676102.com/uploads/image/2021/c4/20/ec/77/59310446c2d7af65a8df312d2fb80692.jpg)
5. CE Certification
![M Type Two in One Plastic Rope Making Machine M55-3 Strand and 4 Strand with Core](https://pub.357th.com/www.676102.com/uploads/image/2021/99/3b/82/73/3a212ba89b5f5d739c34387f24374737.jpg)
6.Related Products
PP/PE/HDPE/PET monofilament/danline rope production line
PP/PE/HDPE Raffia ball/spool rope production line
