Hydraulic Vertical Panel Concrete Wall Cutting Saw Machine Track Saw

• Blade Type：Cutter Head
• Manufacturing Process：Brazing
• Application：Concrete
• Model：Yg-800
• Saw Blade Diameter：800mm
• Cutting Depth：30cm

=== Base Info ===

• Model NO.：YG-800
• Control Box Motor Power：6150 W
• Cutting Efficiency：3-6m,H
• Saw Blade Life Span：100m
• Transport Package：Wooden Case Export Package
• Specification：400mm*420mm*400mm
• Trademark：Yugong
• Origin：China, Henan
• HS Code：8202991000
• Production Capacity：5000,Month

=== Description ===

Basic Info.

Model NO. YG-800 Control Box Motor Power 6150 W Cutting Efficiency 3-6m/H Saw Blade Life Span 100m Transport Package Wooden Case Export Package Specification 400mm*420mm*400mm Trademark Yugong Origin China, Henan HS Code 8202991000 Production Capacity 5000/Month

Product Description

# Electric wall sawing machine #


Product description

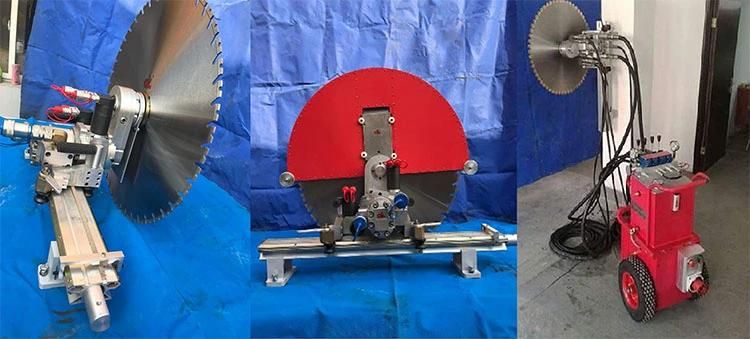

Hydraulic power station and hydraulic saw head, general said that the hydraulic power station is placed on the ground saw head is running on the wall of the hydraulic power station to provide power to the saw head between them with hydraulic tubing connection.
Four ways of using the wall sawing machine:1. Transverse cutting
2. Longitudinal cutting
3. Ground cutting
4. Inverted cutting

Features of Hydraulic wall sawing machine

1.Reduce the labor intensity, safe and reliable operation
2.with overload protection, powerful, improved cutting capacity and labor productivity.
3.double the working speed to shorten the construction period, to further reduce labor costs, improve the competitive advantage, to expand the scale of construction projects can accept;
4.hydraulic system's own security, Reliability and stability, greatly reducing the cost of the loss of construction equipment;
5.advanced cutting equipment, instead of a strong blow or drill rig hole drilling to the construction in a traditional way

Working principle
1. cutting surface smoothly and tidily.
2. by the track control, cutting position accurately.
3. no vibration, low noise, environmental protection, security, pollution-free.
4. cutting thickness can be adjusted according to the size of the saw blade.

Scope of application
1. general reinforced concrete walls, board cutting, demolition or the door hole.
2. cutting surface required to be a smooth, straight, beautiful concrete cutting.
3. cutting depth according to the blade size adjustment, the current use
    Φ1600 mm blade which Maximum cutting depth up to 600mm.
# Hydraulic Wire Saw #


MODEL	YG-600TM
Saw blade diamteter range	800-1400mm
Cutting depth	620mm
Max.working pressure	180bar/18Mpa
Max.oil flow rate	100L/min
Gearing	Gear
Rotation speed	450/950/1300Rpm
Dimension	400mm*420mm*400mm
Weight	38kg

Standard configuration:
Pumping station
Wall saw head
Guide rail 1 m * 1
Guide rail 2 m * 1
Oil Pipe 10 m * 6
Saw cover 850mm one
Saw blade 800mm piece
Rail mounting brackets * 4
Track stop * 4










.
