150kg Potato French Fries Making Machine Weave Potato Chips Production Line

Ningbo Rito Medical Instruments Co., Ltd. / 2022-07-04

150kg Potato French Fries Making Machine Weave Potato Chips Production Line

  • Certification:ISO9001
  • Power Source:Customized
  • Process:Thermal Processing
  • Automatic Grade:Automatic
  • Application:Chips
  • Customized:Customized

=== Base Info ===

  • Name:Weave Potato Chips Machine
  • Key Word 1:Potato Chips Machine Line
  • Key Word 2:Potato Chips Making Machine
  • Transport Package:Container Transportation
  • Specification:40ft
  • Trademark:RX
  • Origin:Zhengzhou
  • HS Code:843200

=== Description ===

Basic Info.

Name Weave Potato Chips Machine Key Word 1 Potato Chips Machine Line Key Word 2 Potato Chips Making Machine Transport Package Container Transportation Specification 40ft Trademark RX Origin Zhengzhou HS Code 843200

Product Description


Working Flow:
 The conventional output is 30kgh, 50kgh,70kgh,80kgh,100kg/h, 150kgh,200kg/h, 300kg/h, 500kg/h, 1000kg/h ,1500kg/h and so on.
150kg Potato French Fries Making Machine Weave Potato Chips Production Line
150kg Potato French Fries Making Machine Weave Potato Chips Production Line

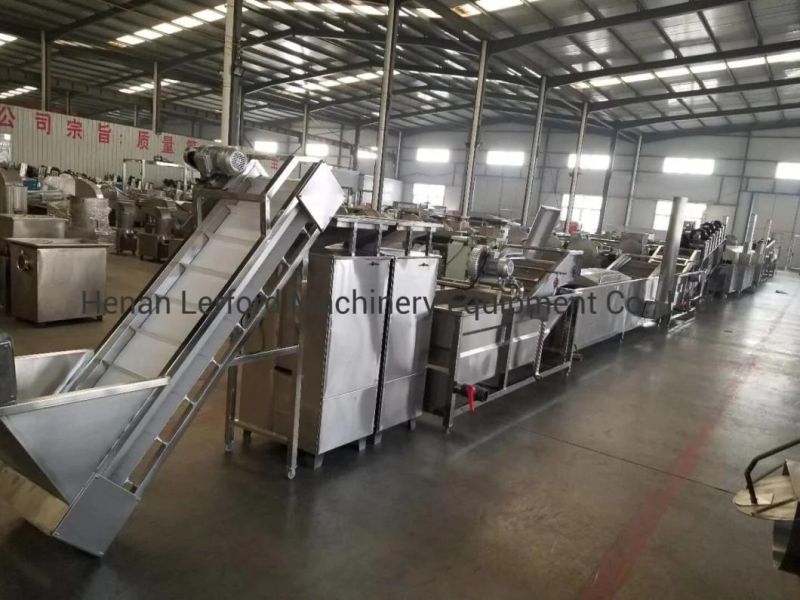

In general, the French fries making machine potato chips production line includes the following equipment:
1.Loading elevator
2.potato washing and peeling machine
3.Sorting conveyor line
4.potato cutting machine
5. potato blanching machine
6.Vibration dewatering machine
7.air-dry dewatering machine
8.french fries potato chips frying machine
9.Vibration deoiling machine
10.air-dry deoiling machine
11.seasoning machine
12.packing machine
150kg Potato French Fries Making Machine Weave Potato Chips Production Line


Introduction of the potato fries making machine:
The use of dual-network belt conveying food, up and down the network with variable speed adjustment, automatic lifting system, convenient for workers to clean up the body of health, constant temperature continuous production to ensure that the fried food temperature and time consistent, automatic smoke exhaust system, to ensure that workers have a good working environment. Using the oil-water mixing process, the residue in food is automatically sunk into the keep the oil surface clean, heating system for electric heating heat conduction oil indirectly heating the way of cooking oil, accelerate the heating speed of edible oil, reduce the cooking oil in the process of carbonization, ensure the quality of edible oil, prolong the use cycle of frying oil, with energy-saving, environmental protection, Warming up fast, protect the characteristics of fried oil.
150kg Potato French Fries Making Machine Weave Potato Chips Production Line
150kg Potato French Fries Making Machine Weave Potato Chips Production Line


Features of the potato fries making machine:
1. Various choices. We supply 150kg/h,300kg/h, 500/h and 1000 kg/h for customers.
2. High efficiency and energy saving. Excellent quality and Low oil consumption.
3. Easy operation and multifunctional usage.
4. Comparative price and high rate of profitable return.
5. All the machines in the production line are made of stainless steel 304
6. Electricity power requirement is 380V/50Hz/three-phase.
7. The cutting machine can cut the potato sticks of thickness 2-10mm, it is adjustable.
8. The packing machine is an automatic one and it can feed, elevate, weigh, and pack the fries at one time.

Parameters of the lays potato fries making machine:
Product NamePowerDimension
Lifting Machine 0.55kw/380v/50Hz 1500*800*1600mm
Cleaning and Peeling Machine 4.37kw/380v/50Hz 3100*900*1500mm
Picking Line 0.75kw/380v/50Hz 3500*800*900mm
Potato Chips Cutting  Machine1.5kw/380v/50Hz950*800*950mm
 Rinsing Line 2.95kw/380v/50Hz 3500*1200*1300mm
Blanching Line 60kw/380v/50Hz 4000*1200*1400mm
Cooling Line

15kw/380v/50Hz4000*1200*1400mm
Elevator0.75kw/380v/50hz 1500*800*1300mm
Electric Heating Fryer 80kw/380v/50Hz 5000*1200*2400mm
Cooling Line8kw/380v/50Hz4000*1200*1600mm
Elevator0.75kw/380v/50Hz2000*800*2200mm
Frozen Line100kw/380/50hz6000*3300*3000mm
Automatic Ten Mouths Packing Machine 6kw/380v/50hz3000*3000*2600mm

150kg Potato French Fries Making Machine Weave Potato Chips Production Line
